Remove/Install Frontal Acceleration Sensor - AR91.60-P-0750FRX

Model 290

MODIFICATION NOTES

18.03.2019

Work procedure completely modified.

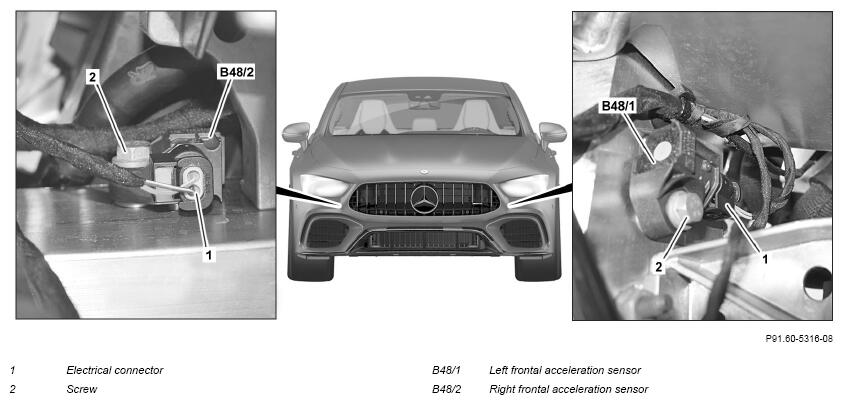

Fig 1: Frontal Acceleration Sensor Components Location - Model 290

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003FR
2	Remove front engine compartment lining.		AR61.20-P-1105FRX
3	Disconnect electrical connector (1) from frontal acceleration sensor (B48/1, B48/2).	The frontal acceleration sensor (B48/1, B48/2) is located on the rear of the crossmember.
4	Remove bolt (2) and remove frontal acceleration sensor (B48/1, B48/2).	Screw/bolt, frontal acceleration sensor to bumper crossmember	*BA91.60-P-1009-01O
5	Install in the reverse order.

AIRBAG

Number	Designation		Model 290
BA91.60-P-1009-01O	Screw/bolt, frontal acceleration sensor to bumper crossmember	Nm	8
