Remove/Install Front Multicontour Seat/Dynamic Seat Control Unit - AR91.25-P-1900FR
Model 257, 290
with code 432 (Dynamic seats left and right)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Connect vehicle diagnosis system and perform commissioning of front multicontour seat control unit (N32/15, N32/16). | When replacing front multicontour seat control unit (N32/15, N32/16). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove seat backrest trim. | Model 257 with code 432 (Dynamic seats left and right) Model 290 with code 432 (Dynamic seats left and right) except code 555 (AMG Performance seats) |
AR91.10-P-1912FR |
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 4 | Disconnect electrical connectors (2) at front multicontour seat control unit (N32/15, N32/16). | ||
| 5 | Unhook electrical wiring harnesses (3, 4) from holders on front multicontour seat control unit (N32/15, N32/16). | ||
| 6 | Release front multicontour seat control unit (N32/15, N32/16) at catch hooks (arrows B). | ||
| 7 | Carefully pull front multicontour seat control unit (N32/15, N32/16) upwards and lift pneumatic lines (1) carefully over holders (arrows A). | Make sure that the pneumatic lines (1) do not kink. Otherwise, the pneumatic lines (1) may start to leak. |
|

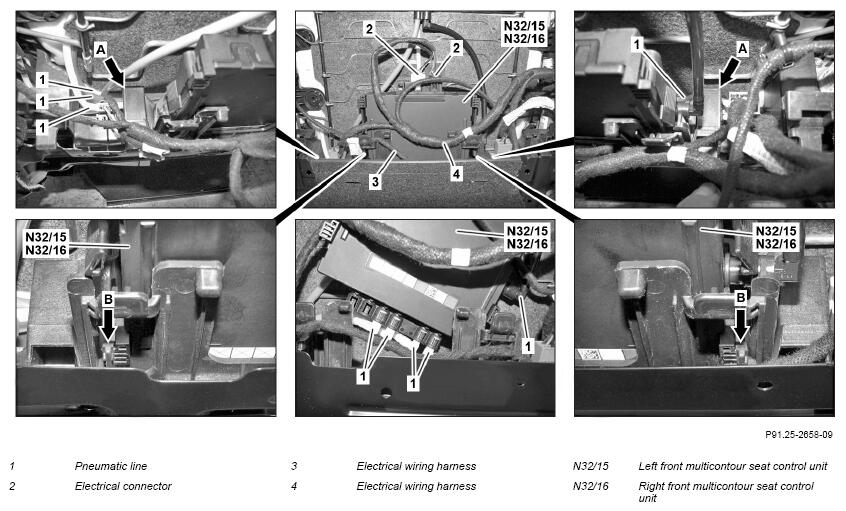

| Fig 1 | |||
| 8 | Release and disconnect pneumatic lines (1) using a suitable tool. | ||
| 9 | Remove front multicontour seat control unit (N32/15, N32/16). | ||
| 10 | Install in the reverse order |
