Remove/Install Center Rear Seat Belt Buckle - AR91.40-P-1527FR

Model 257

Model 290

with code 287 (Through-loading feature)

except code 224 (Individual rear seats)

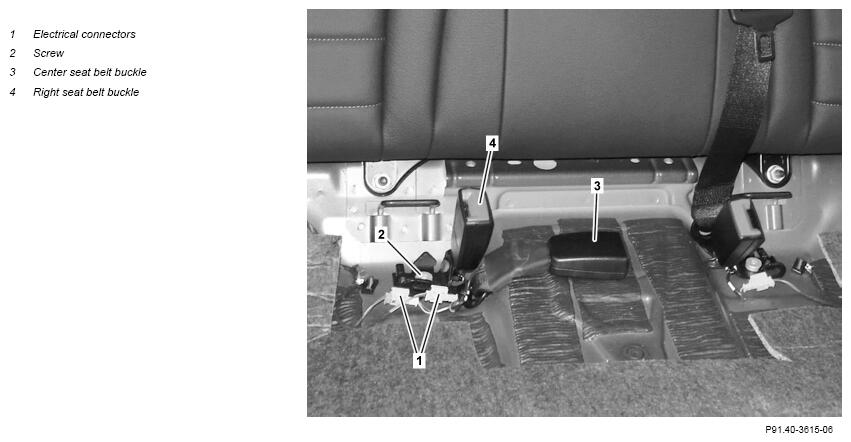

Shown on model 257

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat cushion in rear passenger compartment.	Model 257 Model 290 with code 287 (Through-loading feature) with code 568 (3-seater rear bench seat) except code 224 (Individual rear seats)	AR91.12-P-1021FR
2	Disconnect electrical connectors (1).
3	Remove screw/bolt (2).	Bolt/nut for rear belt buckle	*BA91.40-P-1009-01U
4	Remove right seat belt buckle (3) together with center seat belt buckle (4).	Center belt buckle (3) and right belt buckle (4) form a unit and must be removed or replaced together.
		Note correct installation position of center belt buckle (3) and right belt buckle (4).
5	Install in the reverse order.
