Rear Passenger Compartment Side Window Roller Sunblind Motor, Basic Function - GF68.50-P-2009A
Model All (CAR)
with code 297 (Electric roller sun blind in left and right rear door)
Model All (CAR)
with code M036 (Maybach version)

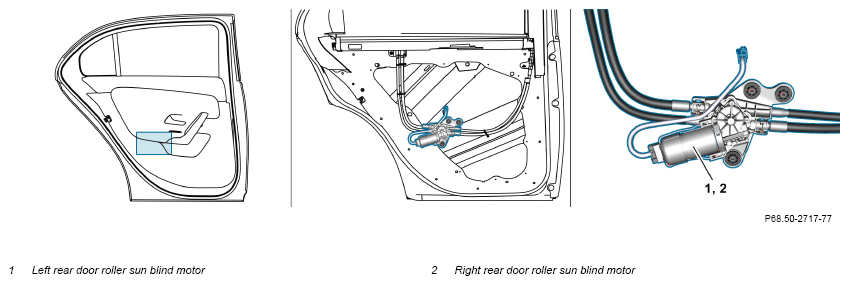

Example illustration of rear side window roller sunblind motor
Overview
This document contains information on:
- General
- Function
General
The left and right rear door roller sunblind motors (1, 2) drive the roller sunblind linkage and thus facilitate the opening and closing of the roller sunblinds of the rear doors and/or the side windows.
Function
Triggered by the control elements in the rear passenger compartment, they are actuated respectively, depending on the side, by the left rear door control unit or by the right rear door control unit. If the driver operates the roller sunblinds, the actuation of the left and right rear door roller sunblind motors (1, 2) is realized directly by the driver's door control unit.
The position of the roller sunblind is defined by the evaluation of the Hall sensor signals in the left or right rear door roller sunblind motor (1, 2).
