Remove/Install Locking Mechanism For Folding Rear Seat Backrest - AR91.12-P-1730FRX
Model 290
with code 287 (Through-loading feature)

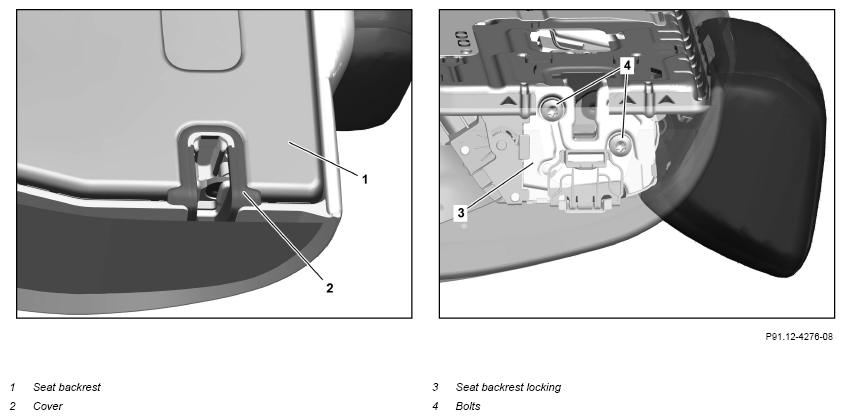

Shown except code 224 (Individual rear seat system design) on right side of vehicle
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Release and fold over seat backrest (1). | ||
| 2 | Unclip cover (2). | Unclip cover (2) first in direction of rear door and then upward. Otherwise, the cover (2) may be damaged. |
|
| 3 | Unhook cover of seat backrest (1) in area of seat backrest locking function (3). | ||
| 4 | Loosen padding and cover of seat backrest (1) until seat backrest locking function (3) and screws (4) are accessible. | Carefully loosen padding and cover of seat backrest (1). Damage can otherwise occur. |
|
| 5 | Unscrew bolts (4). | *BA91.12-P-1008-03M | |
| 6 | Remove seat backrest locking function (3) with attached electrical connector from seat backrest. | ||
| 7 | Disconnect electrical connector on seat backrest locking function (3). | ||
| 8 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA91.12-P-1008-03M | Bolt, backrest lock to backrest frame | Nm | 20 |
