Remove/Install Left Or Right Seat Belt In Rear Passenger Compartment - AR91.40-P-0682FRX
Model 290

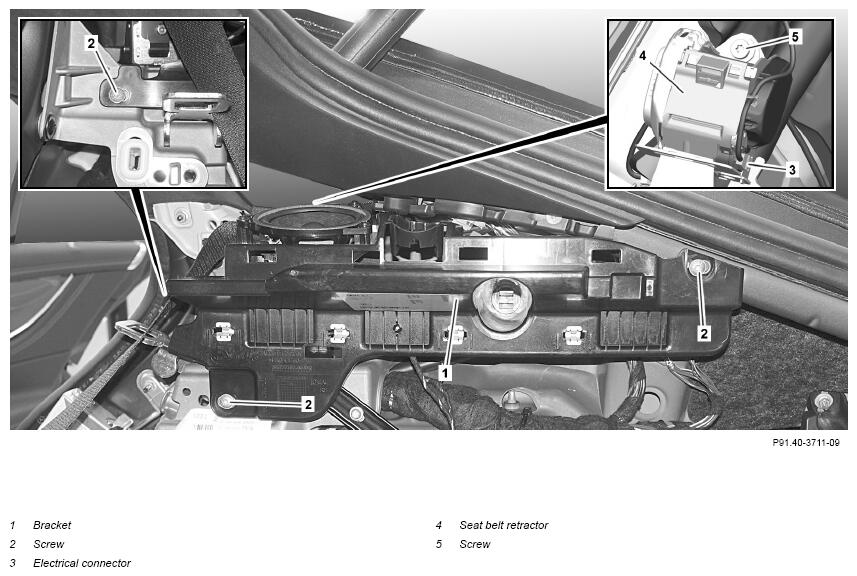

Shown on right side of vehicle
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove load compartment trim at top in rear passenger compartment. | AR68.30-P-1186FRX | |
| 2 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 3 | Push side trim in load compartment to one side until the bolts (2) are accessible. | ||
| 4 | Remove bolts (2) and place holder (1) with attached electric lines to one side. | ||
| 5 | Disconnect electrical connector (3). | Fig 1 | |
| 6 | Remove damping over seat belt retractor (4). | ||
| 7 | Remove screw (5). | *BA91.40-P-1006-01U | |
| 8 | Remove seat belt retractor (4) together with seat belt. | ||
| 9 | Install in the reverse order. | ||
| 10 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA91.40-P-1006-01U | Bolt, rear seat belt retractor | Nm | 35 |
