Remove/Install Lock Cylinder On Glove Compartment - AR68.10-P-1251FR

Model 257, 290

Courtesy of MERCEDES-BENZ USA

Shown on model 257

Courtesy of MERCEDES-BENZ USA

	Remove

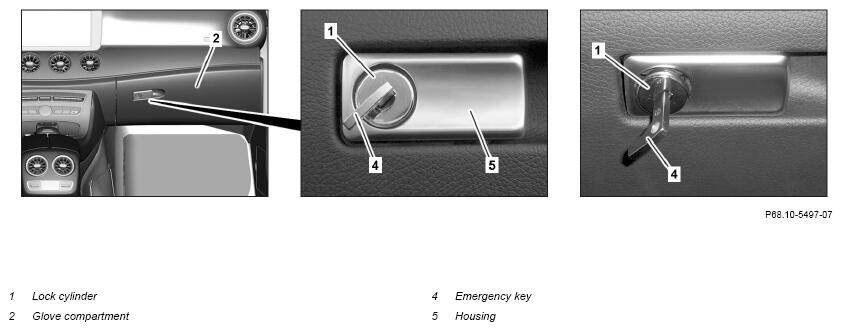

1	Insert emergency key (4) into lock cylinder (1) and turn approx. 45° as shown.
2	Remove lock cylinder (1) with emergency key (4) from housing (5).	Hold housing (5).
	Check

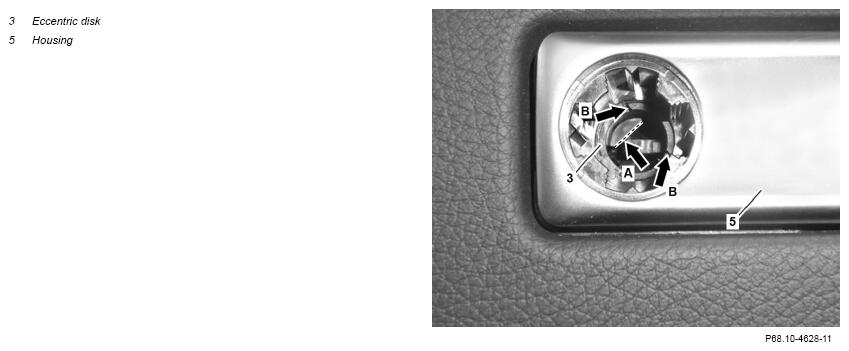

3	Check position of edge (arrow A) of eccentric disk (3) in housing (5).	The edge (arrow A) of the eccentric disc (3) must be at approx. 45° as shown in the figure.
		The positions of the edges (arrows A and B) are turned 180°.
4	Correct position of eccentric disk (3) at edges (arrows B).	If required.
		Do not press to eccentric disk (3) in axial direction. Otherwise the eccentric disk (3) can be pressed off of the housing (5).
		Turn eccentric disk (3) at edges (arrows B).
	Install
5	Insert lock cylinder (1) into housing (5) in 45° position with the emergency key (4).	Lock cylinder (1) should arrest noticeably.
6	Remove emergency key (4) from lock cylinder (1).
