Evaluate State Of Charge Of 48 V Battery, Function Schematic - PE54.10-P-2517-97A
Model 167 with code B01 (48V technology)
Model 213, 238, 257, 290 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | 48 V on-board electrical system battery, status | 10E |
| 2 | 48 V battery temperature, signal | 9E |

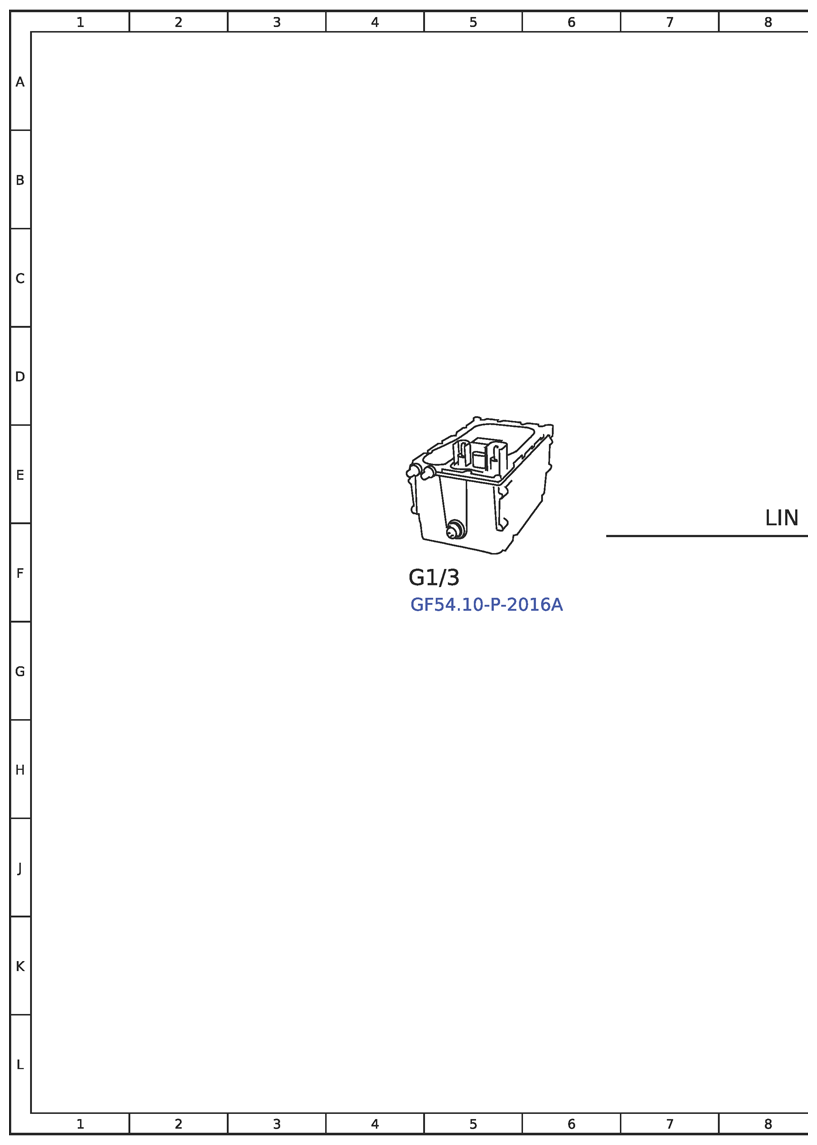

| G1/3 | 48 V on-board electrical system battery | 4F |
| LIN | Local Interconnect Network | 8F |

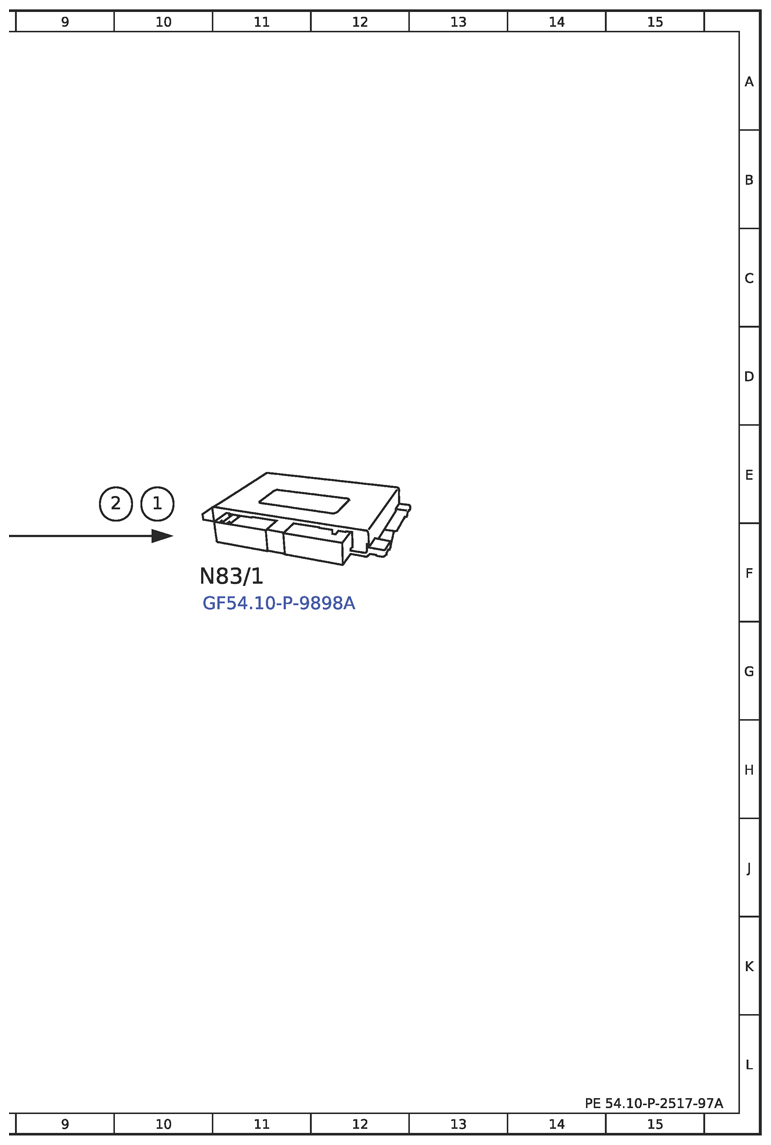

| N83/1 | DC/DC converter control unit | 11F |
