Remove/Install Park Pawl Capacitor - AR54.10-P-1126FR
Model 257
Model 290

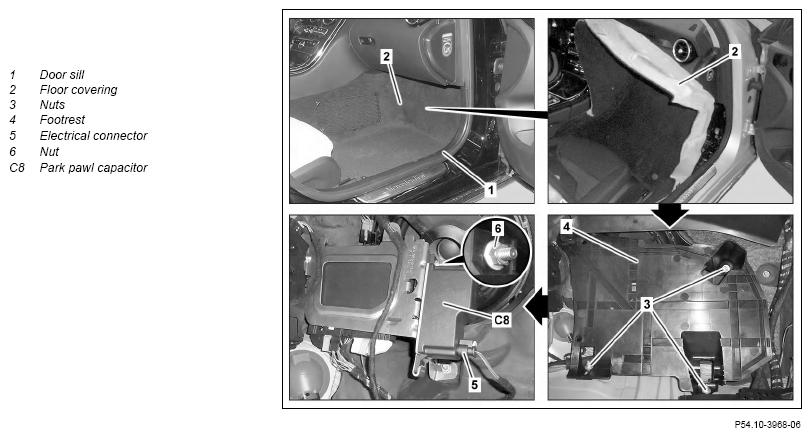

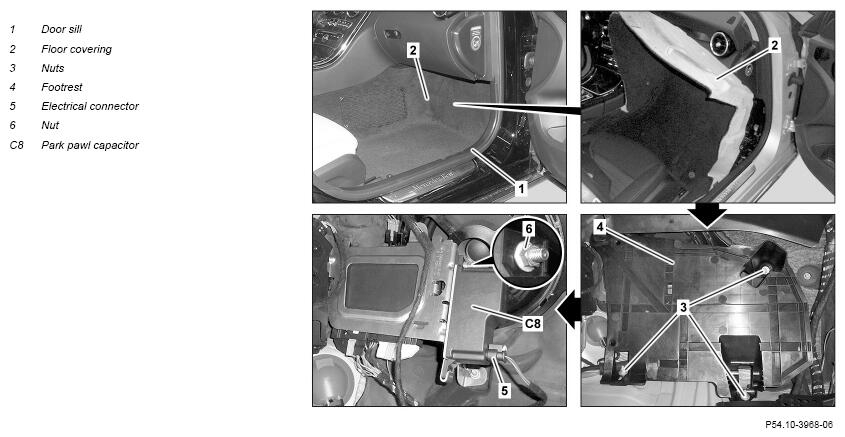

Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove door sill (1). | ||
| 3 | Remove floor covering (2) from front passenger footwell. | AR68.80-P-0008FR | |
| 4 | Unscrew nuts (3). | ||
| 5 | Remove footrest (4). | ||
| 6 | Disconnect electrical connector (5). | ||
| 7 | Unscrew nut (6), unhook park pawl condenser (C8) from holder and remove. | ||
| 8 | Install in the reverse order. |
