Remove/Install Fanfare Horns - AR54.35-P-1555FRX

Model 290

Courtesy of MERCEDES-BENZ USA

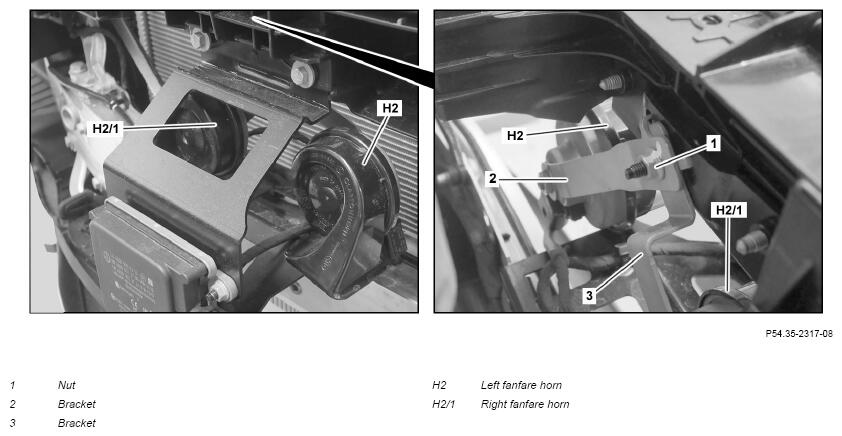

Shown on model 290 up to model year 2023

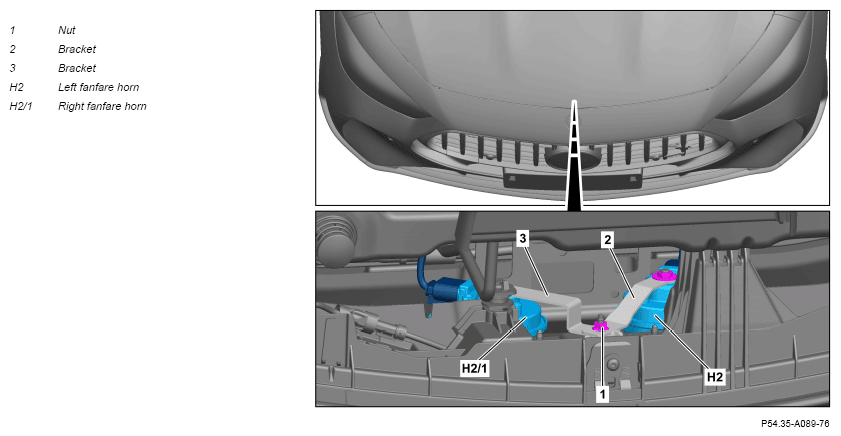

Shown on model 290 as of model year 2023

Fig 1: Fanfare Horns Components Location - Model 290 (Shown As Of Model Year 2023)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front bumper.	Model 290 up to model year 2023
			AR88.20-P-2000FR
2	Release and disconnect electrical connectors at left horn (H2), right horn (H2/1).
3	Remove nut (1) and remove left horn (H2) and right horn (H2/1) with holders (2, 3).
4	Modify holder (2) or holder (3).	When replacing the left horn (H2) or the right horn (H2/1).
5	Install in the reverse order.
