Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-P-0001LWE
Model 167, 192, 206, 213, 214, 223, 232, 236, 238, 254, 257, 290, 294, 295, 296, 297

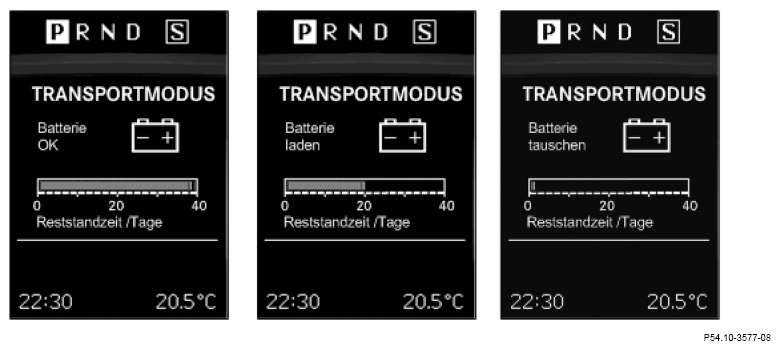

Shown here by way of an example are system statuses in the instrument cluster with an active transport mode in the German system language
| Deactivation | |||
| 1 | Switch on ignition. | If "Charge battery" message is displayed in instrument cluster, ↓ Charge on-board electrical system battery. |
|
| Model 192, 232 Model 206, 236, 254 Model 214 Model 223 |
AR54.10-P-1133S | ||
| Model 294, 295, 296, 297 | AR54.10-P-1133EQS | ||
| Model 257, 290 | AR54.10-P-1130FR | ||
| Model 167 | AR54.10-P-1130ME | ||
| Model 213, 238 | AR54.10-P-1130LW | ||
| If "Replace battery" message is displayed in instrument cluster, ↓ replace on-board electrical system battery. |
|||
| Model 192, 232 | AR54.10-P-1134SLY | ||
| Model 206, 214, 236, 254 with code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR54.10-P-1134WT | ||
| Model 294, 295, 296, 297 | AR54.10-P-1134EQS | ||
| Model 206, 214, 254 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code B01 (48V technology) |
AR54.10-P-1134WTC | ||
| Model 223 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR54.10-P-1134SA | ||
| Model 223 except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR54.10-P-1134S | ||
| Model 290 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
AR54.10-P-0009FRY | ||
| Model 257, 290 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
AR54.10-P-0009FRX | ||
| Model 167 | AR54.10-P-0009ME | ||
| Model 257 except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
AR54.10-P-0009FR | ||
| Model 238 except code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB)) |
AR54.10-P-0009LWO | ||
| Model 238 with code U98 (LITHIUM-ION STARTER BATTERY (LISB)) except code B01 (48V technology) |
AR54.10-P-0009LWQ | ||
| Model 238 with code B01 (48V technology) |
AR54.10-P-0009LWK | ||
| Model 213 | AR54.10-P-0005LW | ||
| 2 | Document residual service life. | ||
| Model 294, 295, 296, 297 | AP00.20-P-1100E | ||
| Model 167, 213, 238, 257, 290 | AP00.20-P-1100B | ||
| Model 192 Model 206 Model 214 Model 223 Model 232 Model 236 Model 254 |
AP00.20-P-1100D | ||
| 3 | Deactivate transport mode using button combination. | AR54.00-P-0001-01LWE | |
| 4 | Document deactivation of transport mode. | ||
| Model 294, 295, 296, 297 | AP00.20-P-1100E | ||
| Model 192 Model 206 Model 214 Model 223 Model 232 Model 236 Model 254 |
AP00.20-P-1100D | ||
| Model 167, 213, 238, 257, 290 | AP00.20-P-1100B |
