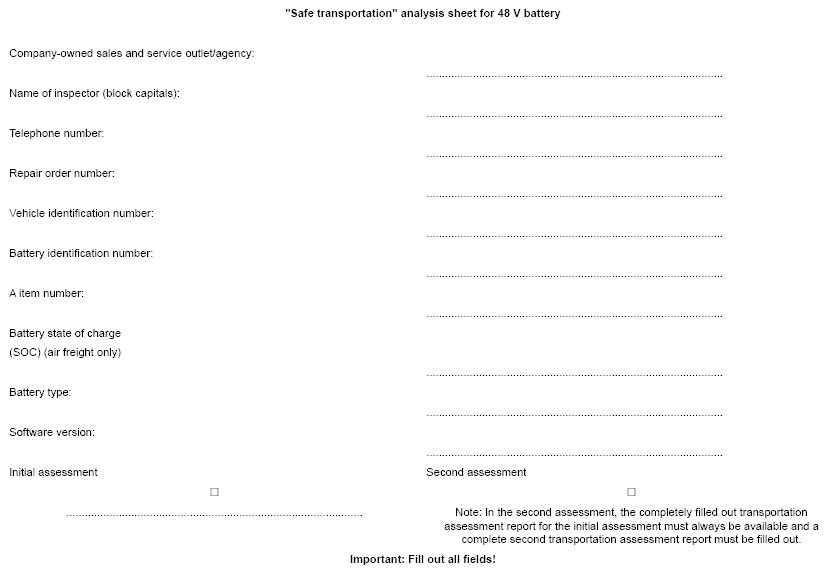

Analysis Sheet For 48 V Lithium-Ion Battery, Form - OF54.10-P-3000-15FR
Model 167, 205, 206, 213, 232, 238, 253, 257, 290
with code B01 (48V technology)
Model 223 with engine 176
up to model year 2023
with code B01 (48V technology)
Model 223 with engine 256
with code B01 (48V technology)
except code 9U8 (Control code - Major assembly technical further development)
Model 223 with engine 656
with code B01 (48V technology)
except code M30 (Displacement 3.0 liter)
Model 465
with code B01 (48V technology)

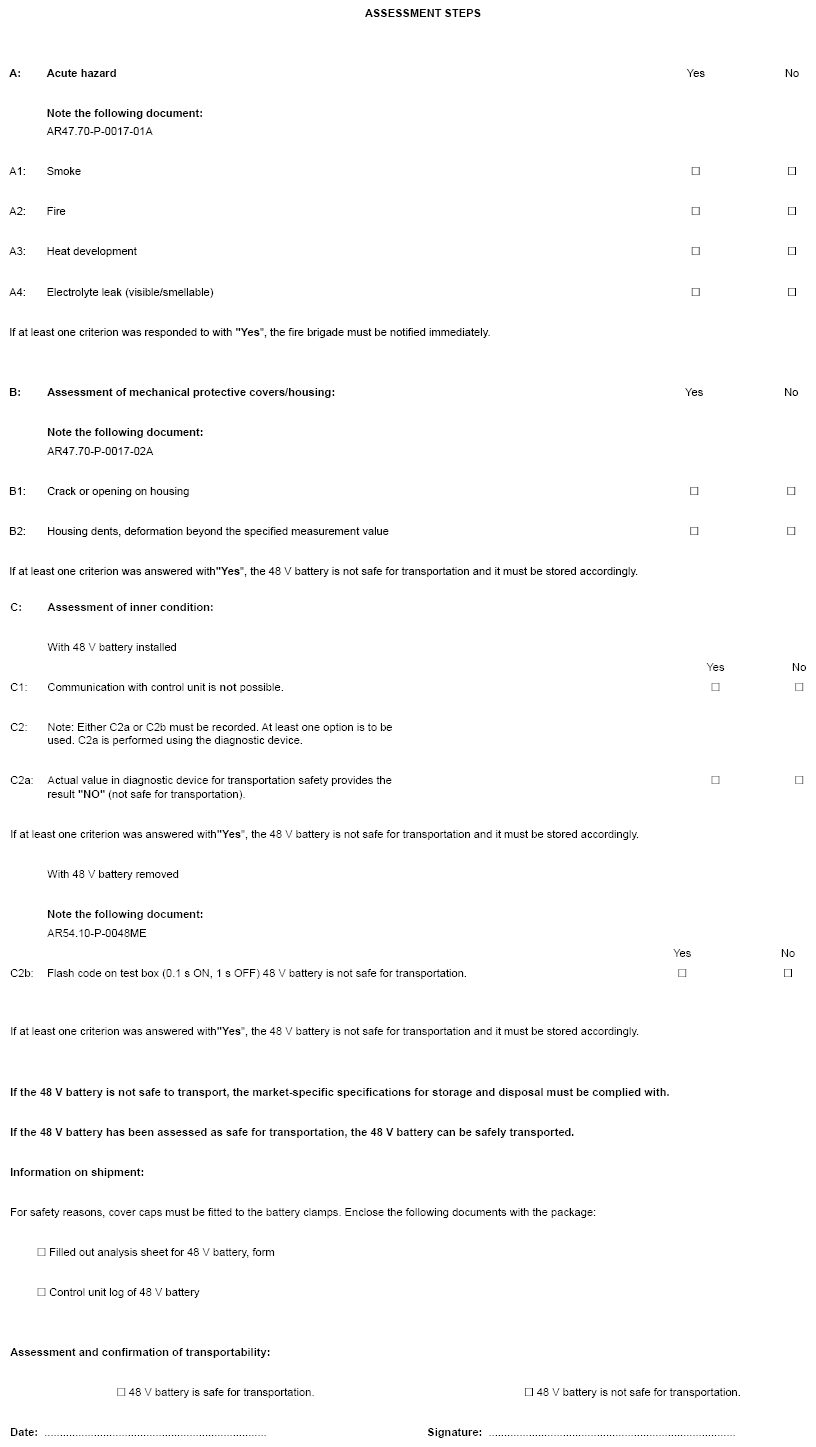

Visual checks
The visual check provides initial important information about the condition. For inspection of protective equipment, wear protective equipment in accordance with the notes in the repair instructions.
