Traffic Area Monitoring, Basic Function - GF54.71-P-1000A

Model all (4xWD)

Model all (CAR)

Overview

This document contains information on:

• General information
• Function requirements
• Function
  • Approaching vehicle in the oncoming lane
  • Slow vehicle in the parallel lane being overtaken
  • Overtaking vehicle in the parallel lane
  • Guardrails or a series of stationary vehicles behind the lane markings
  • Swinging-in vehicles (as of market launch of model 167)

General information

Actively intervening driver assistance systems assess the traffic situation in front of, next to and behind the vehicle in order to define the amount of space available for possible system reactions.

Function requirements

• Engine running or drivetrain operational
• Radar sensor soiling and function test completed
• Multifunction camera soiling and function test completed (depending on equipment installed)

Courtesy of MERCEDES-BENZ USA

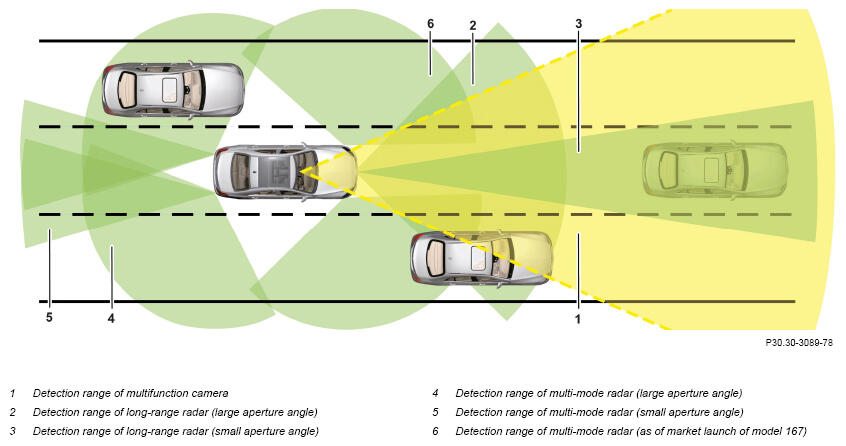

Example illustration of detection range of traffic area monitoring system

Function

The area in front of, next to and behind the vehicle is detected and evaluated by various radar sensors or by the multifunction camera, depending on the vehicle equipment installed.

Depending on the model, the radar sensors can detect both the vehicle's near-field area towards the front, rear and side as well as the long range area towards the front and rear.

Depending on the version of detected objects involved, the multifunction camera can deduce the following information to match their movement profile:

• The detected object is a pedestrian.
• The detected object is a cyclist.
• The detected object is a vehicle.
• The direction of movement of the detected object is perpendicular to the direction of travel.

The information from the radar sensors or the multifunction camera is used to help avoid, where possible, any collisions with objects in the lane or during lane changes. The driver assistance system decides whether system reactions are necessary, depending on the closing speed and the relative positions in the lane.

For example, when changing to the parallel/oncoming lane the following situations can lead to a system reaction:

• Approaching vehicle in the oncoming lane

  Vehicles in the oncoming lane are detected by the front radar sensor and by the multifunction camera.

• Slow vehicle in the parallel lane being overtaken

  Vehicles in the right or left parallel lane in front of the vehicle are detected by the front radar sensor and by the multifunction camera.

• Overtaking vehicle in the parallel lane

  Vehicles approaching from behind at a high speed differential are detected by the rear radar sensors.

• Vehicle in the parallel lane (at approximately same level)

  Vehicles in the right or left parallel lane and level with the vehicle are detected by the rear radar sensors.

• Guardrails or a series of stationary vehicles behind the lane markings

  Objects behind the lane markings are detected by the front radar sensor and by the multifunction camera.

• Swinging-in vehicles (as of market launch of model 167)

  Vehicles pulling in sharply from the right or left parallel lane are detected by the front left and right radar sensors.

	Function schematic
	Monitor traffic situation function schema	Model 465	PE54.71-P-2500-97K
		Model 118, 167, 177, 243, 247, 293 with code 234 (Blind Spot Assist) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 51B (Rating, country group EURO-NCAP) Model 118, 167, 177, 243, 247, 293 with code 243 (Active Lane Keeping Assist (camera)) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 51B (Rating, country group EURO-NCAP) Model 213, 238, 257, 290 as of model year 2021 with code 234 (Blind Spot Assist) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 51B (Rating, country group EURO-NCAP) Model 213, 238, 257, 290 as of model year 2021 with code 243 (Active Lane Keeping Assist (camera)) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 51B (Rating, country group EURO-NCAP)	PE54.71-P-2500-97A
		Model 118, 167, 177, 243, 247, 293 with code 234 (Blind Spot Assist) with code 51B (Rating, country group EURO-NCAP) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 118, 167, 177, 243, 247, 293 with code 243 (Active Lane Keeping Assist (camera)) with code 51B (Rating, country group EURO-NCAP) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 234 (Blind Spot Assist) Model 213, 238, 257, 290 as of model year 2021 with code 234 (Blind Spot Assist) with code 51B (Rating, country group EURO-NCAP) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 213, 238, 257, 290 as of model year 2021 with code 243 (Active Lane Keeping Assist (camera)) with code 51B (Rating, country group EURO-NCAP) except code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) except code 234 (Blind Spot Assist)	PE54.71-P-2500-97B
		Model 118, 167, 177, 243, 247, 293 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 213, 238, 257, 290 as of model year 2021 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))	PE54.71-P-2500-97C
		Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))	PE54.71-P-2500-97E
	Detailed information
	Functional limitations of traffic area monitoring, detailed information		GF54.71-P-1100-01A
