Remove/Install Instrument Cluster - AR54.30-P-6015FR

Model 257

Model 290

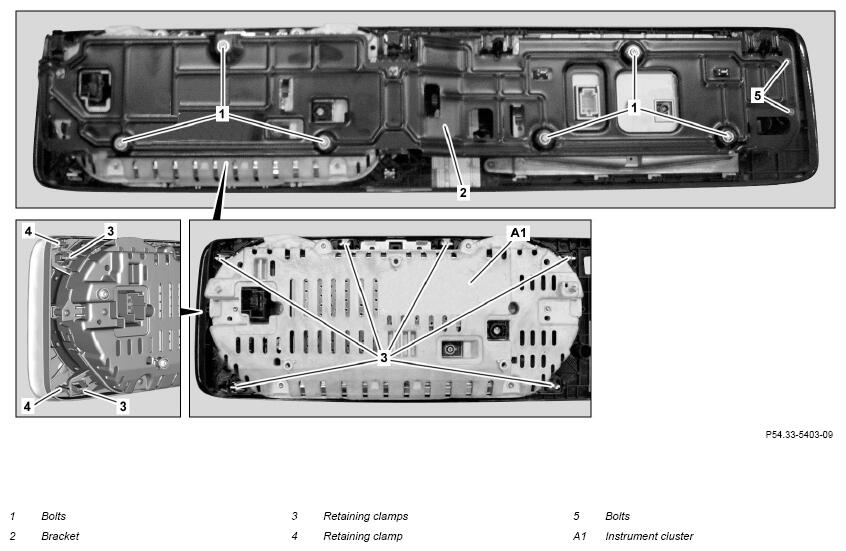

G16554048

Courtesy of MERCEDES-BENZ USA

Shown except code 464 (Digital instrument cluster, full display)

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform instrument cluster (A1) commissioning.	When replacing the instrument cluster (A1).
			AD00.00-P-2000-06FR
2	Remove display module.	Model 257, 290 with code 464 (Full display digital instrument cluster)	AR54.30-P-6023FR
		The instrument cluster (A1) is part of the display module and it cannot be separately removed or replaced.
3	Remove screws (1, 5).	Model 257, 290 except code 464 (Full display digital instrument cluster)
4	Remove holder (2).	Model 257, 290 except code 464 (Full display digital instrument cluster)
5	Unclip instrument cluster (A1) from retaining clips (3, 4) and remove.	Model 257, 290 except code 464 (Full display digital instrument cluster)
		Check that instrument cluster (A1) is correctly seated in retaining clips (3, 4).
6	Install in the reverse order.
