Remove/Install 360° Front Camera - AR54.30-P-3001FR

Model 257, 290

with code 501 (360° camera)

Shown on model 257

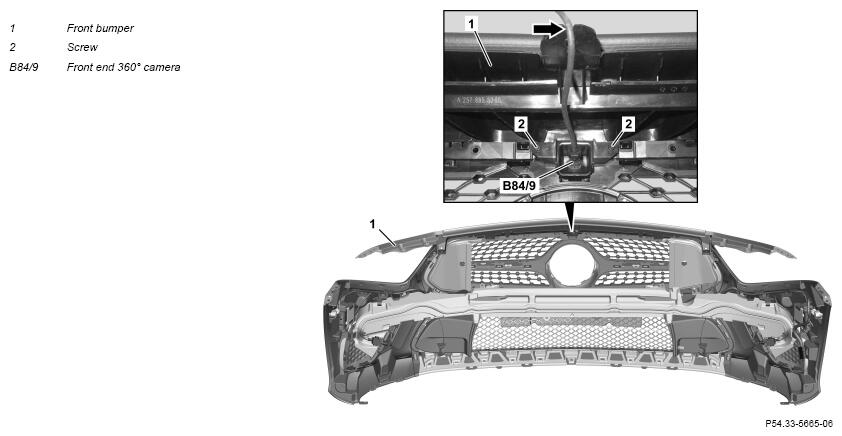

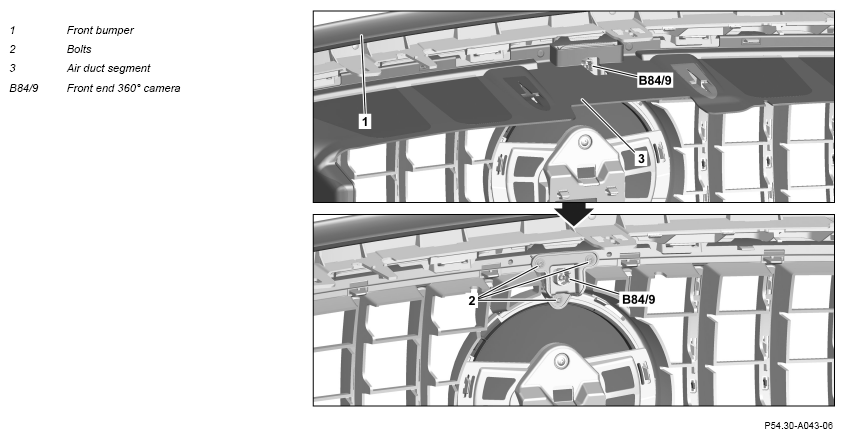

Fig 1: 360° Front Camera Components Location - Model 290 (Shown On Model 257)

Courtesy of MERCEDES-BENZ USA

Shown on model 290

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front bumper (1).		AR88.20-P-2000FR
2	Unhook electrical line out of front bumper (1) (arrow).
3	Remove air duct segment (3).	Model 290 with code 501 (360° camera)
4	Unscrew bolts (2).
5	Remove camera of front 360° Camera (B84/9) from front bumper (1).
6	Install in the reverse order.
	Calibrate
7	Calibrate front 360° camera (B84/9).
			AD00.00-P-2000-06FR
