Remove/Install 115V/230V Socket - AR54.10-P-1002FR

Model 257

with code U67 (230 V socket in rear passenger compartment)

Model 257

with code U80 (115 V socket)

Model 290

with code U67 (230 V socket in rear passenger compartment)

except code 224 (Individual rear seats)

Model 290

with code U80 (115 V socket)

except code 224 (Individual rear seats)

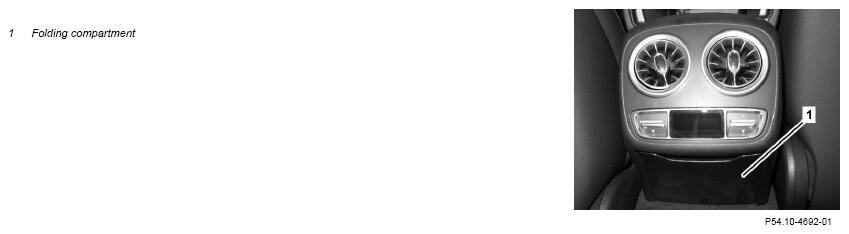

Shown with code 581 (Automatic air conditioning)

Courtesy of MERCEDES-BENZ USA

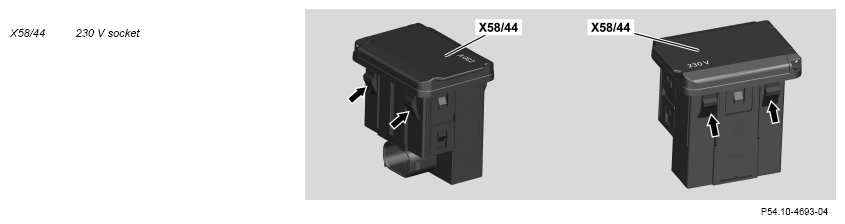

Shown with code U67 (230 volt socket in interior)

Courtesy of MERCEDES-BENZ USA

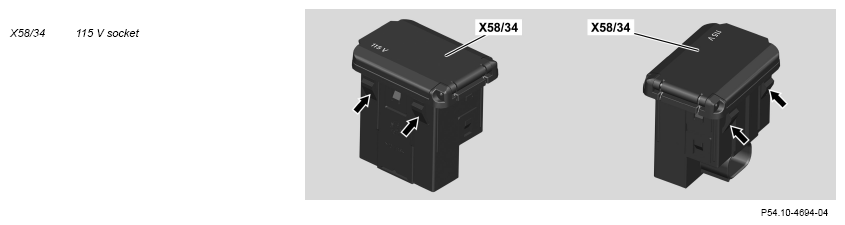

Shown with code U80 (115 V socket)

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003FR
2	Open folding compartment (1) in rear passenger compartment.
3	Unclip folding compartment (1) using suitable tool and remove far enough until electrical connectors can be disconnected.
4	Separate electrical connectors.	The number of electrical connectors varies depending on equipment installed.
5	Remove folding compartment (1).
6.1	Unclip 115 V socket (X58/34) by pressing catch hooks (arrows) and remove.	Model 257 with code U80 (115 V socket) Model 290 with code U80 (115 V socket) except code 224 (Individual rear seats)
6.2	Unclip 230 V socket (X58/44) by pressing catch hooks (arrows) and remove.	Model 257 with code U67 (230 V socket in rear passenger compartment) Model 290 with code U67 (230 V socket in rear passenger compartment) except code 224 (Individual rear seats)
7	Install in the reverse order.
