Empty/Fill Electrohydraulic Suspension - AR32.50-P-0042ME

Model 167

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

with code 490 (Electrohydraulic suspension)

Courtesy of MERCEDES-BENZ USA

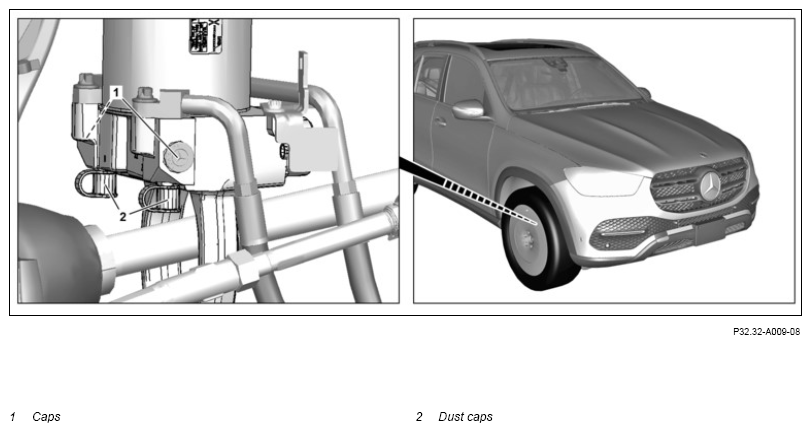

Shown on front axle

Courtesy of MERCEDES-BENZ USA

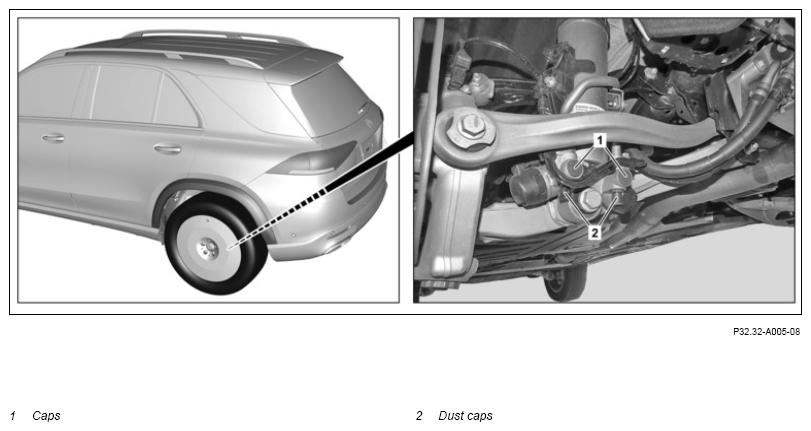

Shown on rear axle

Courtesy of MERCEDES-BENZ USA

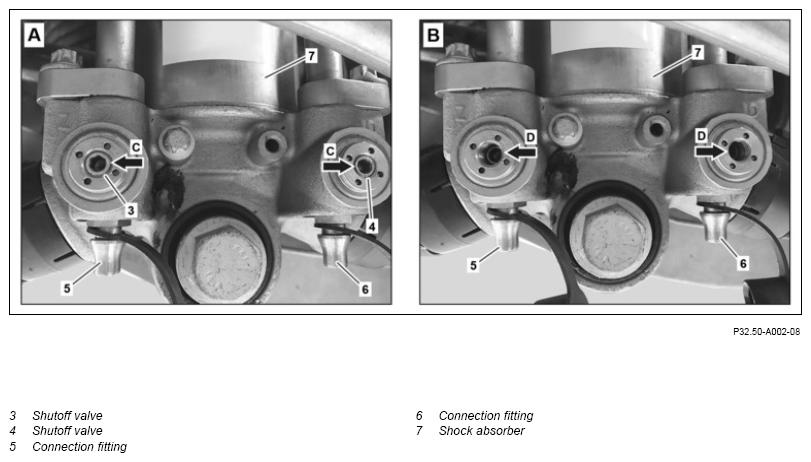

Shown on shock absorber (7) of rear axle

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
Notice	Information on E-ACTIVE BODY CONTROL suspension		AH32.50-P-0002-01ME
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Draining
1	Connect diagnostic system.
			AD00.00-P-2000-06ME
2	Move front wheels to straight-ahead position.
3	Lift vehicle with vehicle lift.		AR00.60-P-1006A
4	Remove trim on rear left and right transverse control arm.	If hydraulic pressure lines of electrohydraulic suspension on rear axle are emptied.
	Clean
5	Clean area surrounding respective suspension strut.	Thoroughly clean area around respective suspension strut before working on electrohydraulic suspension strut. Otherwise, minute dirt particles in the hydraulic components result in malfunctions and total failure of the electrohydraulic suspension. Use clean, lint-free rag only.
		Assembly cleaner	*BR00.45-Z-1028-04A
6	Remove cover caps (1) of shutoff valves (3, 4)
7	Remove dust caps (2) of connection fittings (5 6) completely.	If the dust caps (2) of the connection fittings (5, 6) are missing, ↓ replace respective dust cap (2) and connection fitting (5) or connection fitting (6).	AR32.50-P-0009-01ME
		Connection fitting to shock absorber	*BA32.50-P-1009-04A
		Preservation agent, 400 ml	*BR00.45-Z-1030-05A
8	Drain the hydraulic pressure lines of the electrohydraulic suspension using guided diagnosis.
			AD00.00-P-2000-06ME
	000 588 03 82 00 Filling unit		WS32.00-P-0032B
		Prior to each procedure emptying the hydraulic pressure lines, the shutoff valves (3, 4) of the respective shock absorber (7) must be screwed in up to the end stop (arrows D). The hydraulic pressure in the shock absorber (7) must not fall. It is only by closing the shutoff valves (3, 4) that hydraulic pressure in the shock absorber (7) is maintained. It is not possible to fill the shock absorbers (7).
		Shutoff valve to shock absorber If the hydraulic pressure cannot be reduced using the diagnostic system: ↓ Reduce hydraulic pressure manually.	*BA32.50-P-1006-04A
		Manually release pressure in hydraulic system of electrohydraulic suspension with intact shutoff valve	AR32.50-P-0015-01ME
		Shutoff valve to shock absorber If shutoff valves (3, 4) on shock absorber (7) cannot be closed, ↓ Release hydraulic pressure in hydraulic lines and replace shock absorbers (7).	*BA32.50-P-1006-04A
		Manually release pressure in hydraulic system of electrohydraulic suspension with defective shutoff valve	AR32.50-P-0015-02ME
		Remove/install the suspension strut Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension)	AR32.25-P-1017MEH
		Remove/install rear shock absorber Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code 490 (Electrohydraulic suspension) If connection fittings (5, 6) are damaged, ↓ replace connection fittings (5, 6).	AR32.25-P-0110MEH
			AR32.50-P-0009-01ME
		Connection fitting to shock absorber	*BA32.50-P-1009-04A
		Preservation agent, 400 ml	*BR00.45-Z-1030-05A
	Filling
9	Fill hydraulic pressure lines of electrohydraulic suspension using guided diagnosis.
	000 588 03 82 00 Filling unit		AD00.00-P-2000-06ME
		After each filling procedure, the shutoff valves (3, 4) must be unscrewed up to the end stop (C). Otherwise the hydraulic circuit will not be connected to the hydraulic pump.	WS32.00-P-0032B
		Shutoff valve to shock absorber	*BA32.50-P-1006-04A
		Filling capacity	*BF32.50-P-1001-02A
10	Attach cover caps (1) of shutoff valves (3, 4).
11	Install dust caps (2) of connection fittings (5, 6).
12	Install trim on rear left and right transverse control arm.	If hydraulic pressure lines of electrohydraulic suspension on rear axle have been emptied.
13	Lower vehicle.		AR00.60-P-1006A
14	Disconnect diagnostic system.
			AD00.00-P-2000-06ME
