Remove/Install Steering Wheel - AR46.10-P-0100ME

Model 167

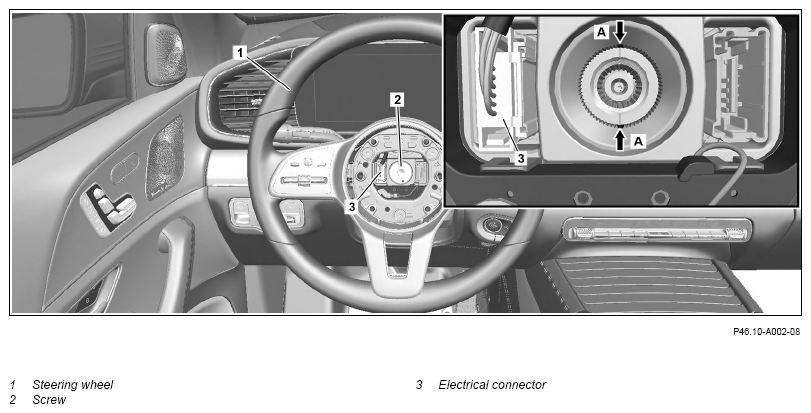

G14791046

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Turn steering wheel (1) to center position.	The front wheels must be in the straight-ahead position.
2	Remove driver airbag from steering wheel (1).		AR91.60-P-0661ME
3	Release and disconnect electrical connection (3).
4	Counterhold steering wheel (1) and remove bolt (2).	Reuse screw (2) and mark with a non-water-soluble pen (color dot).
		Screw/bolt, steering wheel to steering shaft If the bolt (2) already bears a marking (color dot) ↓ Replace bolt (2).	*BA46.10-P-1001-02G
5	Remove steering wheel (1).	Align recesses of the splines (arrows A) in steering wheel (1) with markings on the steering shaft.
6	Install in the reverse order.

STEERING WHEEL

Number	Designation		Model 167
BA46.10-P-1001-02G	Screw/bolt, steering wheel to steering shaft	Nm	80
