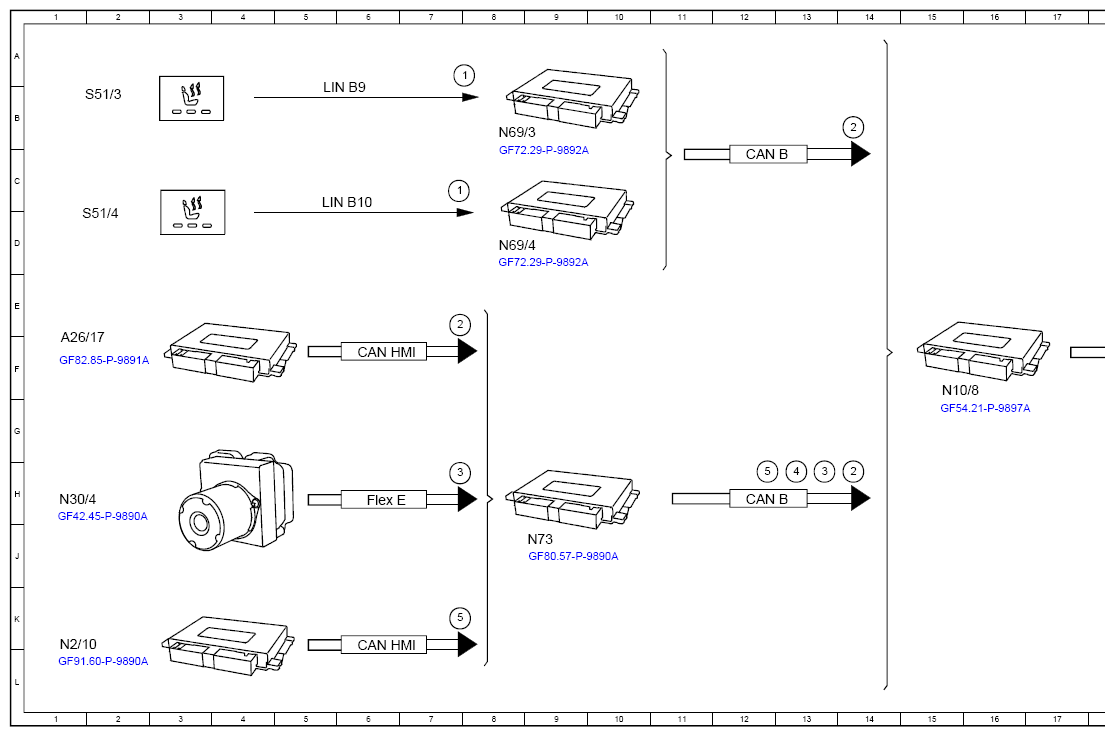

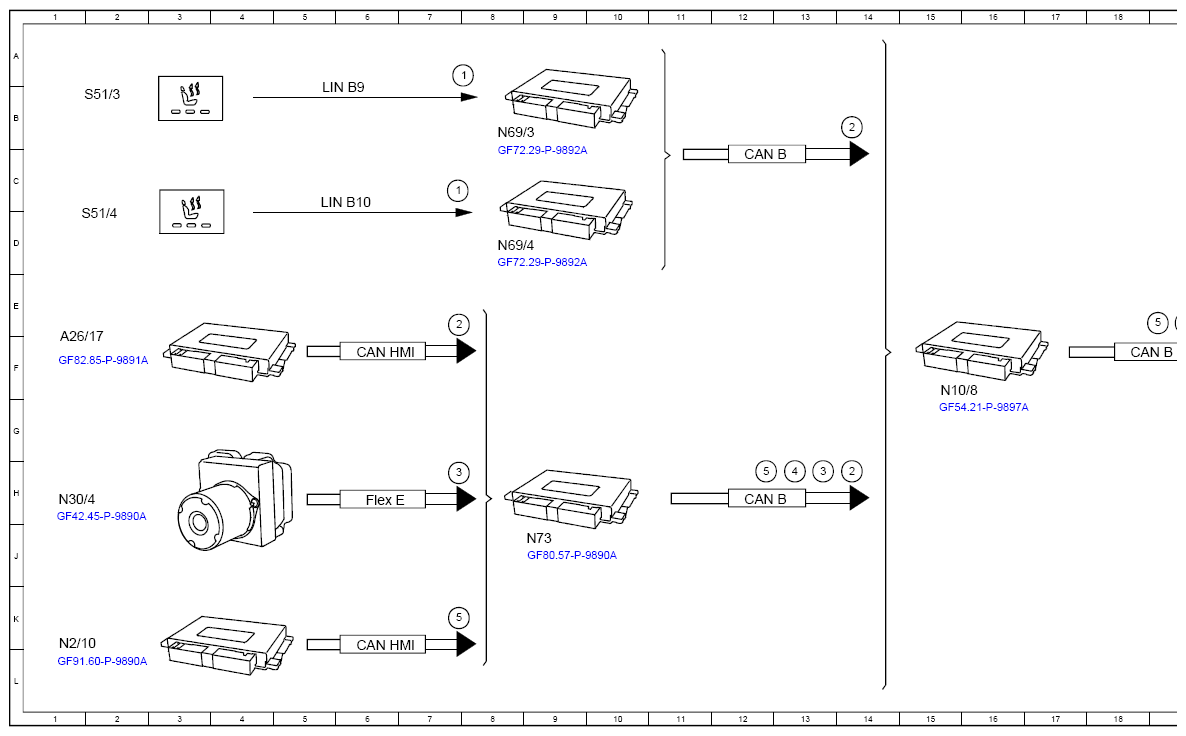

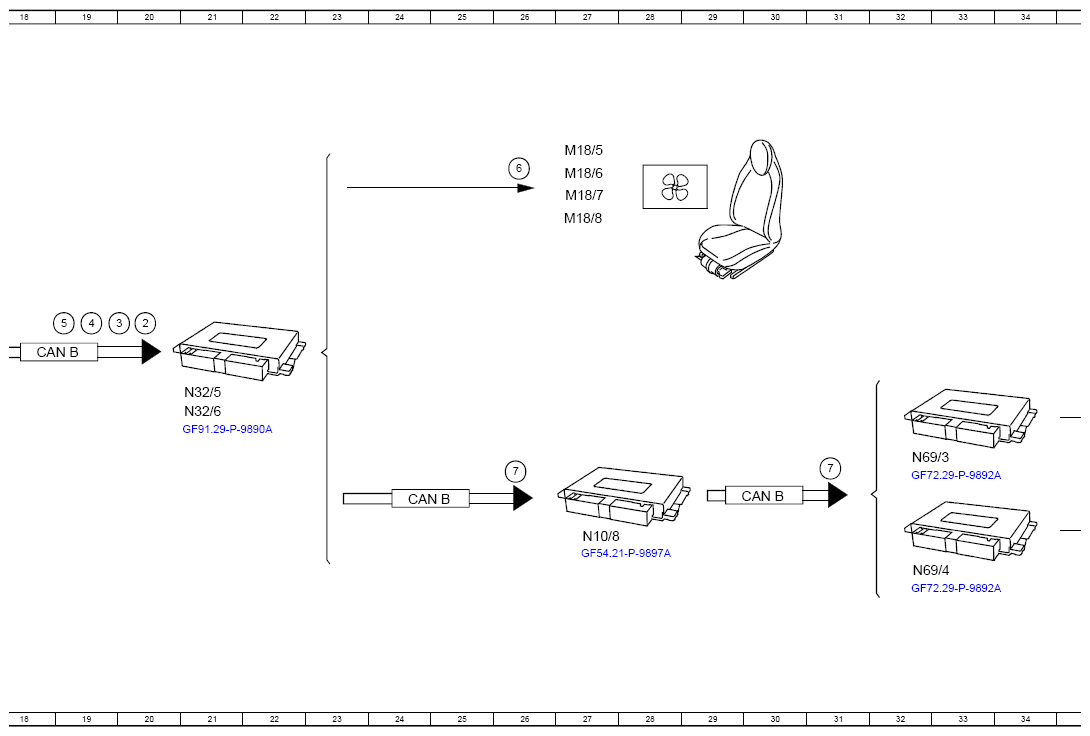

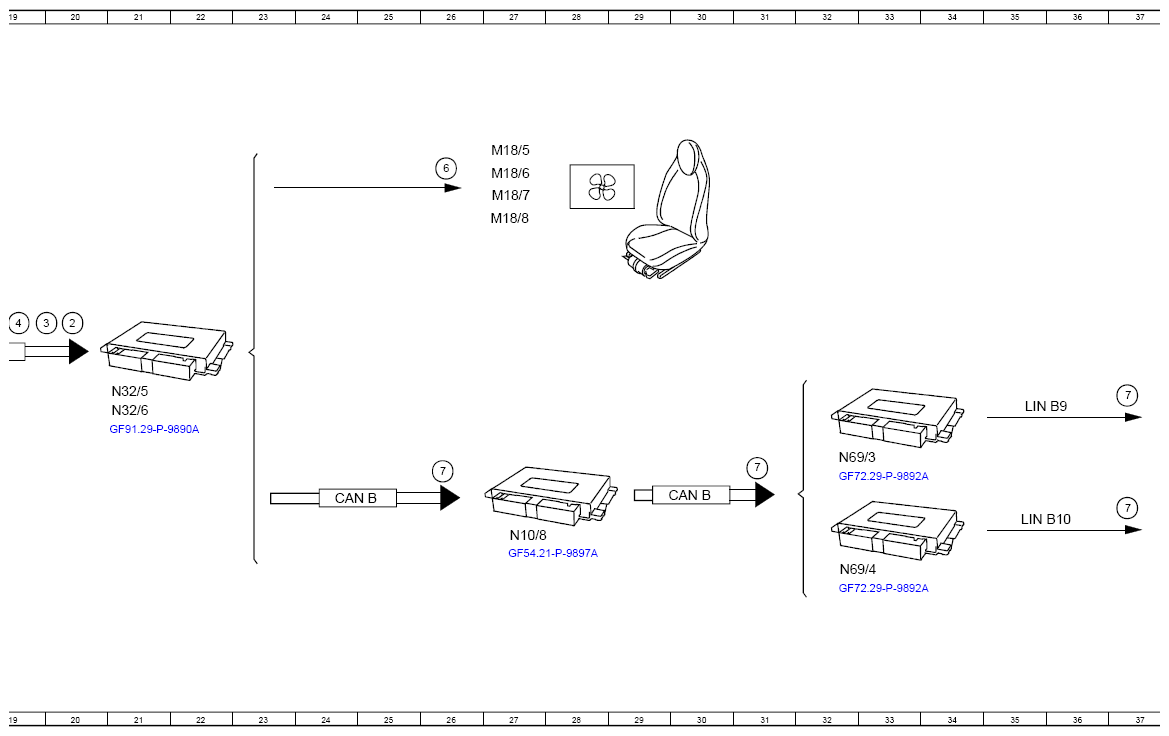

Function Schematic For Switching On Rear Seat Ventilation - PE91.30-P-2504-97A
Model 167 with code 402 (Rear seat climate control)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 8A |
| 1 | Seat climate control switch group, status | 8C |
| 2 | Seat ventilation, request | 14B |
| 2 | Seat ventilation, request | 14H |
| 2 | Seat ventilation, request | 8E |
| 2 | Seat ventilation, request | 20F |
| 3 | Vehicle speed, signal | 13H |
| 3 | Vehicle speed, signal | 8H |
| 3 | Vehicle speed, signal | 20E |
| 4 | Circuit 15, status | 13H |
| 4 | Circuit 15, status | 19E |
| 5 | Crash, signal | 8K |
| 5 | Crash, signal | 12H |
| 5 | Crash, signal | 19E |
| 6 | Seat ventilation motors, actuation | 26C |
| 7 | Seat ventilation, status | 31H |
| 7 | Seat ventilation, status | 37H |
| 7 | Seat ventilation, status | 37F |
| 7 | Seat ventilation, status | 26H |
| A26/17 | Head unit | 1F |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 24H |
| CAN HMI | User interface CAN | 6F |
| CAN HMI | User interface CAN | 6L |
| Flex E | Chassis FlexRay | 6H |
| LIN B10 | Right rear door LIN | 5C |
| LIN B10 | Right rear door LIN | 35H |
| LIN B9 | Left rear door LIN | 5B |
| LIN B9 | Left rear door LIN | 35G |
| M18/5 | Right rear seat backrest ventilation motors | 27C |
| M18/6 | Right rear seat cushion ventilation motors | 27C |
| M18/7 | Left rear seat backrest ventilation motors | 27C |
| M18/8 | Left rear seat cushion ventilation motors | 27D |
| N10/8 | Rear central control unit | 15F |
| N10/8 | Rear central control unit | 27J |
| N2/10 | Supplemental restraint system control unit | 1K |
| N30/4 | Electronic Stability Program (ESP®) control unit | 1H |
| N32/5 | Left rear seat control unit | 21F |
| N32/6 | Right rear seat control unit | 21G |
| N69/3 | Left rear door control unit | 8B |
| N69/3 | Left rear door control unit | 32H |
| N69/4 | Right rear door control unit | 8D |
| N69/4 | Right rear door control unit | 32J |
| N73 | Electronic ignition switch control unit | 9J |
| S51/3 | Left rear heated seat switch | 2B |
| S51/3 | Left rear heated seat switch | 38G |
| S51/4 | Right rear heated seat switch | 2D |
| S51/4 | Right rear heated seat switch | 38J |
