Remove Female Contact From Double Flat Spring Contact Coupling - AR00.19-P-0120-30A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying MPT Blade (220 589 01 99 51)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with locking grille

1. Insert a suitable tool on side between locking grille (1) and housing.
2. Slide locking grille (1) in direction of arrow

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with slide

3. Insert a suitable tool on side between slide (1) and housing.
4. Move slide (1) in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with slide

5. Push (1) slider out of locked position in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

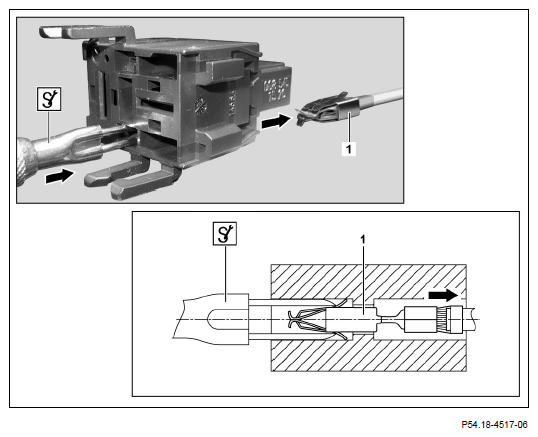

   Unpin female contacts from coupling (Version 1)

6. Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of coupling.

   This pushes together the springs at the female contact (1).

7. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

   Courtesy of MERCEDES-BENZ USA

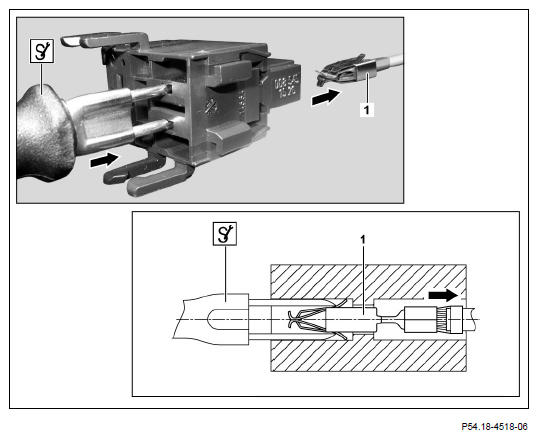

   Unpin female contacts from coupling (Version 2)

8. Insert blade holder with clamping pliers and MPT blade from front side though openings at contact cavity of coupling.

   This presses together the springs of the female contact (1).

9. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

Courtesy of MERCEDES-BENZ USA
