Remove Contacts From Standard Power Timer Coupling - AR00.19-P-0120-10A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying JPT/SPT Blade (220 589 01 99 61)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying MCP2.8/FL Blade. 2.8/JPT/SPT (000 589 13 99 30)

Courtesy of MERCEDES-BENZ USA

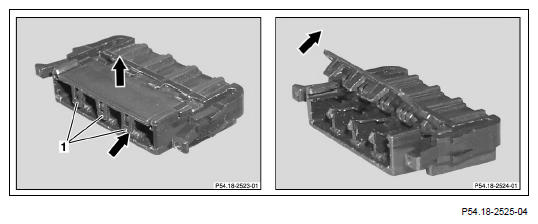

Unfasten secondary release on version with tab

1. Using a suitable tool at the line side unlock the lugs (1) on lock tab.
2. Open the tab.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with spring (shown on Junior Power Timer, Standard Power Timer coupling)

3. Insert a suitable tool between spring (1) and housing and then press spring (1) out.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with slide

4. Using a suitable tool push the slide valve out of the last detent in direction shown by arrow.

   Press carefully with the tool so that the gasket at the slide valve is not damaged.

   Courtesy of MERCEDES-BENZ USA

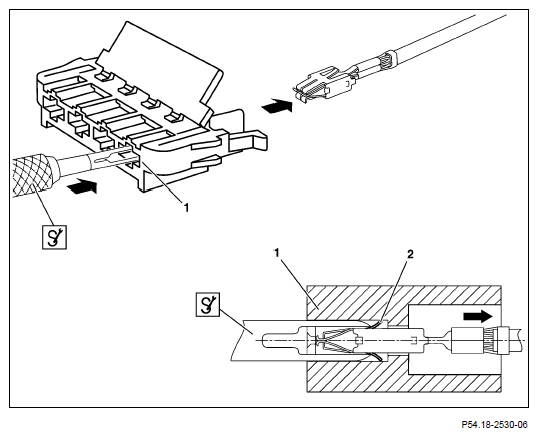

   Unpin female contacts from coupling

5. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl. 2.8/JPT/SPT blade from the front through the openings in contact cavity of coupling (1).

   This step compresses the spring shackles (2) on the female contact.

6. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

Courtesy of MERCEDES-BENZ USA
