Remove Contacts From Fin Sensor Contact Connector - AR00.19-P-0120-13A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ USA

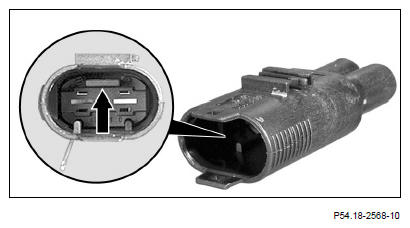

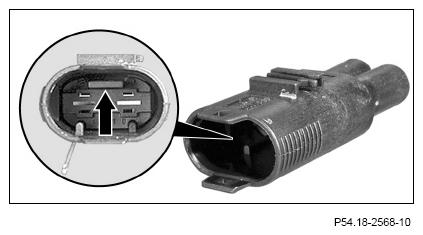

Unfasten secondary release on version with disk

1. Using a suitable tool, push the disk out of the last detent in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

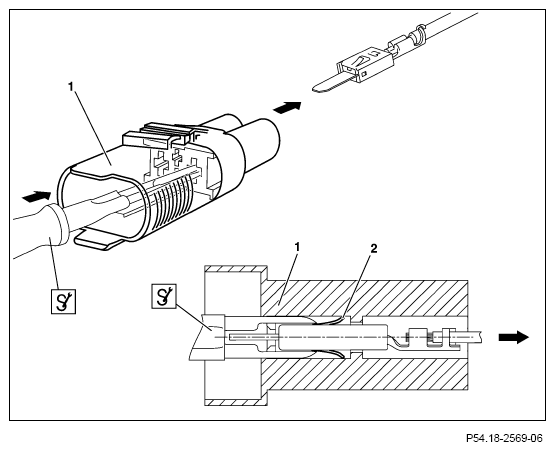

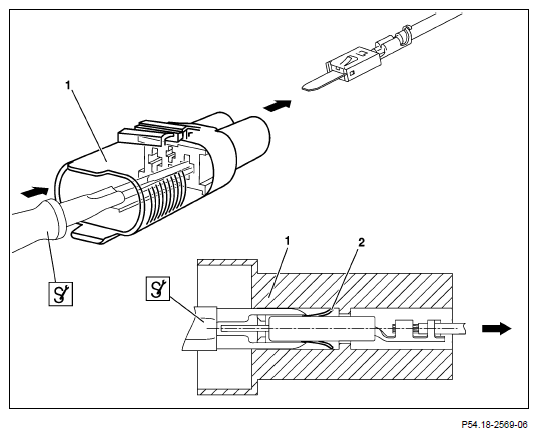

   Unpin female contacts from connector

2. Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of connector (1).

   This results in the spring shackles (2) of the contact pin being compressed.

3. A slight tug on the corresponding cable will remove the contact pin from the connector.

Courtesy of MERCEDES-BENZ USA
