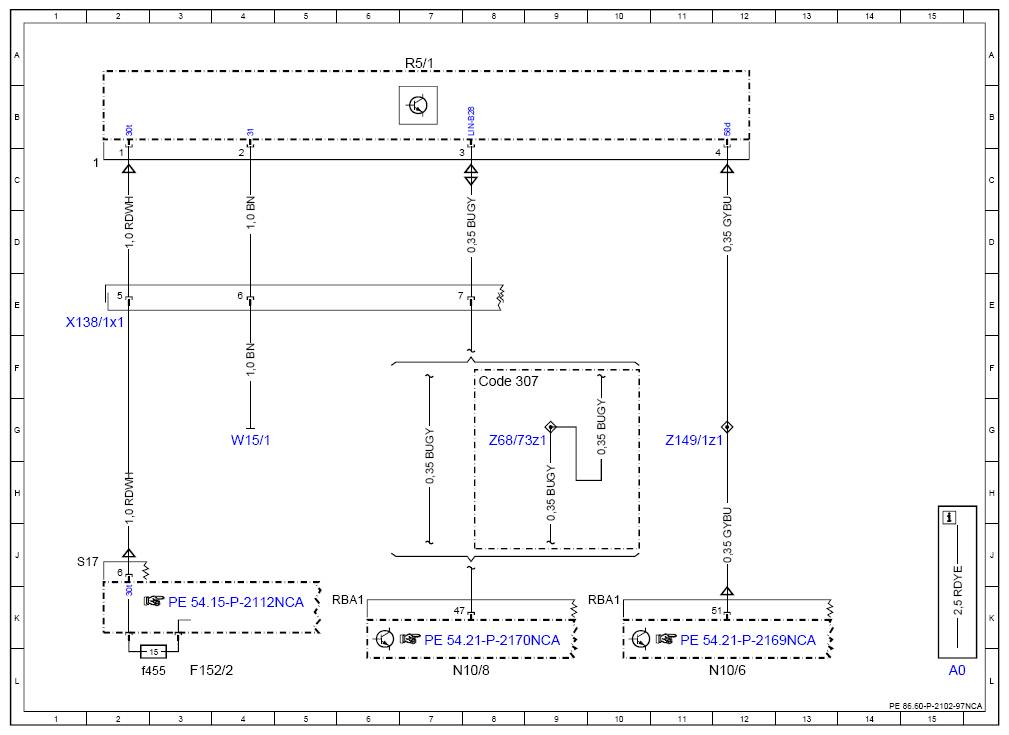

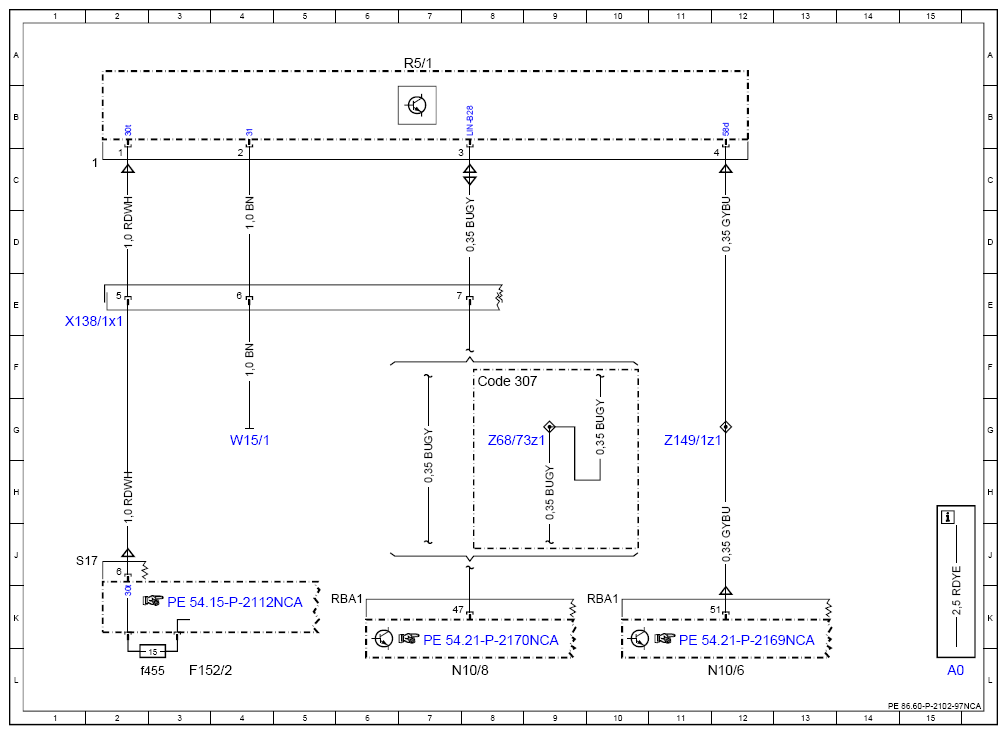

Wiring Diagram For Front Cup Holder - PE86.60-P-2102-97NCA
Model 167 with code 311 (Temperature-controlled cup holder)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code 307 | Temperature-controlled cup holder in rear passenger compartment | 8F |
| F152/2 | Rear fuse and relay module | 3L |
| F152/2f455 | Fuse 455 | 2L |
| N10/6 | Front central control unit | 12L |
| N10/8 | Rear central control unit | 8L |
| R5/1 | Front temperature-controlled cup holder | 7A |
| W15/1 | Right footwell ground point | 4G |
| X138/1x1 | Front center console electrical connector | 2E |
| Z149/1z1 | Front center console switch and controls illumination end sleeve | 11G |
| Z68/73z1 | Cup holder LIN end sleeve | 8G |
