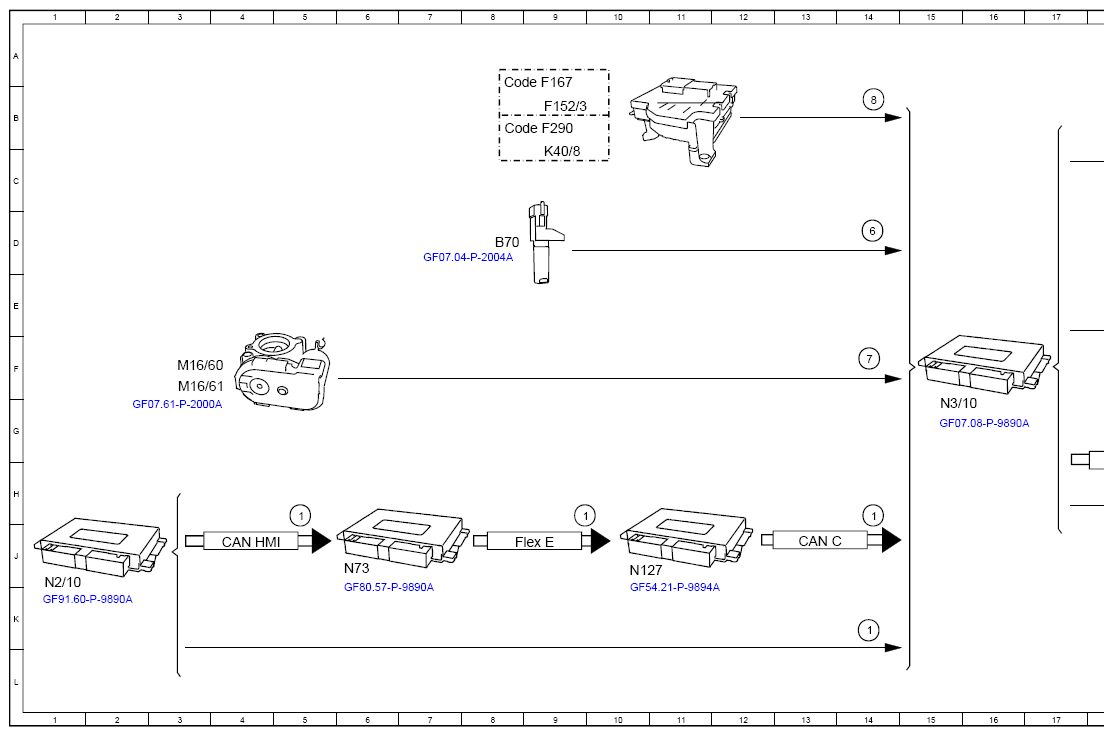

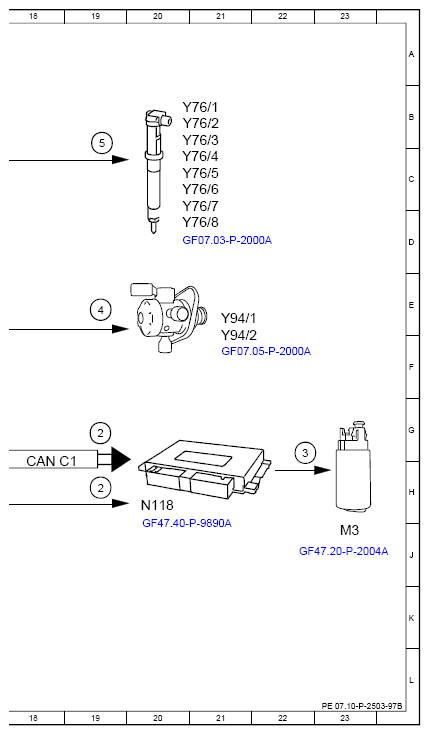

Function Schematic For Safety Fuel Shutoff - PE07.10-P-2503-97B
Engine 176, 177 in model 167
Engine 177 in model 290 as of model year 2021
| Code: | Designation: | Position |
|---|---|---|
| 1 | Crash, signal | 5H |
| 1 | Crash, signal | 9H |
| 1 | Crash, signal | 14H |
| 1 | Crash, signal | 14K |
| 2 | Fuel pump, request OFF | 19G |
| 2 | Fuel pump, request OFF | 19H |
| 3 | Fuel pump, actuation OFF | 22G |
| 4 | Quantity control valve, actuation | 19E |
| 5 | Fuel injectors, actuation | 19B |
| 6 | Engine speed, signal | 14D |
| 7 | Throttle valve position, signal | 14F |
| 8 | Circuit 87, status | 14B |
| B70 | Crankshaft Hall sensor | 8D |
| CAN C | Engine CAN | 13J |
| CAN C1 | Drive train CAN | 18H |
| CAN HMI | User interface CAN | 4J |
| Code F167 | Model series 167 | 8B |
| Code F290 | Model series 290 | 8B |
| F152/3 | Engine compartment fuse and relay module | 9B |
| Flex E | Chassis FlexRay | 9J |
| K40/8 | Engine fuse and relay module | 9C |
| M16/60 | Left throttle valve actuator | 3F |
| M16/61 | Right throttle valve actuator | 3F |
| M3 | Fuel pump (FP) | 23J |
| N118 | Fuel pump control unit | 20H |
| N127 | Drivetrain control unit | 10J |
| N2/10 | Supplemental restraint system control unit | 1J |
| N3/10 | ME-SFI [ME] control unit | 15G |
| N73 | Electronic ignition switch control unit | 6J |
| Y76/1 | Cylinder 1 fuel injector | 20B |
| Y76/2 | Cylinder 2 fuel injector | 20B |
| Y76/3 | Cylinder 3 fuel injector | 20B |
| Y76/4 | Cylinder 4 fuel injector | 20C |
| Y76/5 | Cylinder 5 fuel injector | 20C |
| Y76/6 | Cylinder 6 fuel injector | 20C |
| Y76/7 | Cylinder 7 fuel injector | 20C |
| Y76/8 | Cylinder 8 fuel injector | 20D |
| Y94/1 | Left quantity control valve | 21E |
| Y94/2 | Right quantity control valve | 21F |
