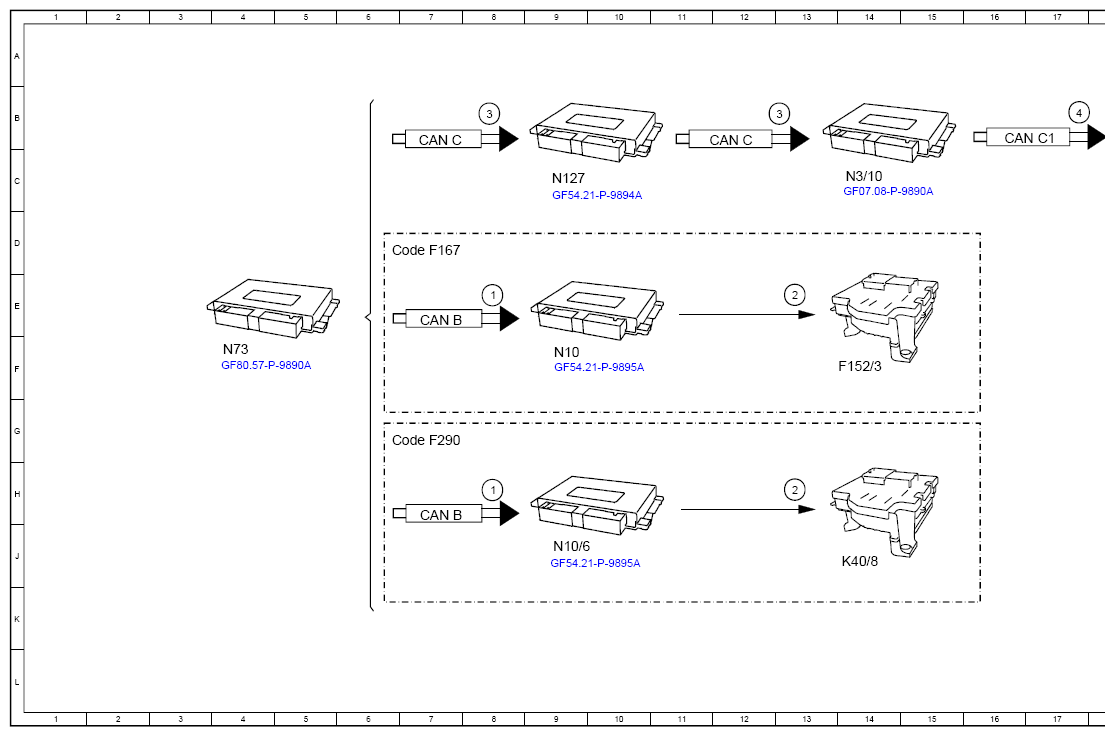

Function Schematic For Ignition OFF - PE07.10-P-2506-97B
Engine 176, 177 in model 167
Engine 177 in model 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, request OFF | 8E |
| 1 | Circuit 15, request OFF | 8H |
| 2 | Circuit 15 relay, actuation OFF | 13E |
| 2 | Circuit 15 relay, actuation OFF | 13H |
| 3 | Circuit 15, status OFF | 8B |
| 3 | Circuit 15, status OFF | 13B |
| 4 | Fuel pump, request OFF | 17B |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 7H |
| CAN C | Engine CAN | 7B |
| CAN C | Engine CAN | 12B |
| CAN C1 | Drive train CAN | 16B |
| Code F167 | Model series 167 | 6D |
| Code F290 | Model series 290 | 6G |
| F152/3 | Engine compartment fuse and relay module | 14F |
| K40/8 | Engine fuse and relay module | 14J |
| N10 | Central control module | 9F |
| N10/6 | Front SAM control unit | 9J |
| N118 | Fuel pump control unit | 18C |
| N127 | Drivetrain control unit | 9C |
| N3/10 | ME-SFI [ME] control unit | 14C |
| N73 | Electronic ignition switch control unit | 4F |
