Remove/Install Purge Valves Holder - AR47.30-P-1500MNP
Engine 177 in model 167
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Pull the low-temperature circuit expansion reservoir with connected lines upwards out of the elastomer bearings. | AR09.41-P-0001MNP | |
| 2 | Release and disconnect electrical connector of left purging pressure sensor (B108/1). | ||
| 3 | Release and disconnect electrical connector of right purging pressure sensor (B108/2). | ||
| 4 | Release and disconnect electrical connector of left purging switchover valve (Y58/11). | ||
| 5 | Release and disconnect electrical connector of right purging switchover valve (Y58/12). | ||
| 6 | Unscrew screws (2) of left purging switchover valve (Y58/11) and right purging switchover valve (Y58/12). | *BA00.10-P-1002-04A | |

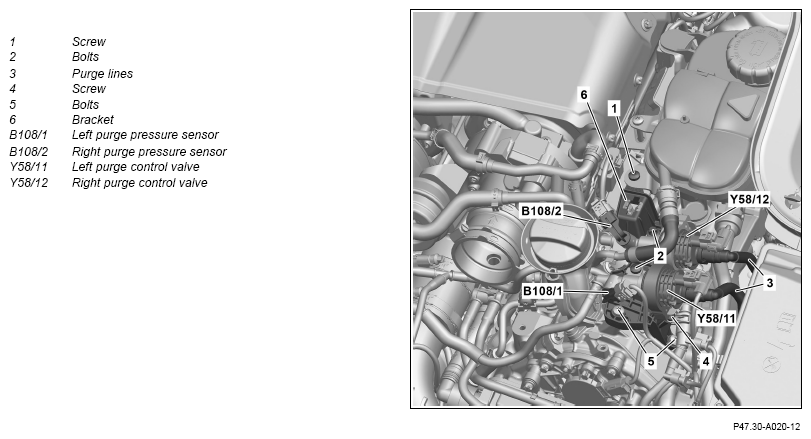

| 7 | Remove purge lines (3) on left purging switchover valve (Y58/11) and right purging switchover valve (Y58/12) and seal the openings with a suitable stop plug. | Fig 1 | |
| 8 | Place left purging switchover valve (Y58/11) and right purging switchover valve (Y58/12) to one side. | ||
| 9 | Unscrew bolt (4). | ||
| 10 | Remove screw/bolt (1). | *BA00.10-P-1002-04A | |
| 11 | Remove screws (5). | *BA00.10-P-1002-04A | |
| 12 | Take out the bracket (6) upward. | ||
| 13 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Carry out engine test run and check engine for proper leak tightness and leak tightness. | ||
| 15 | Install upper engine cover. | ||
| AP01.10-P-2405-01E |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
