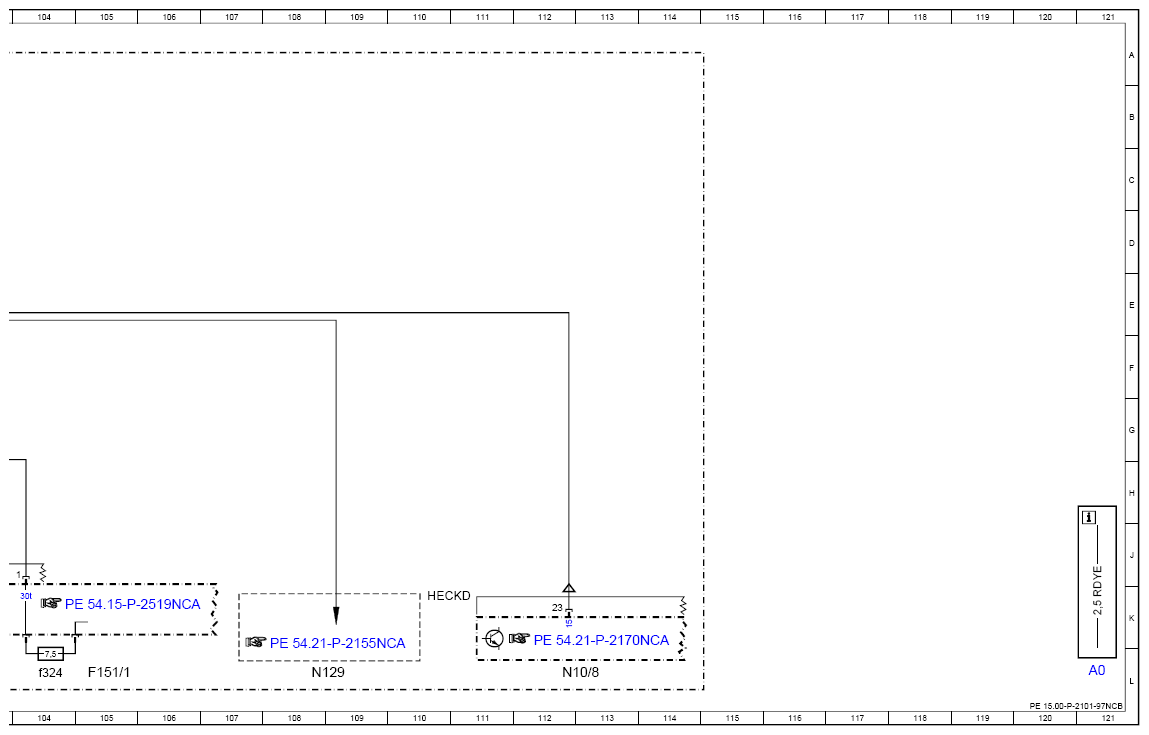

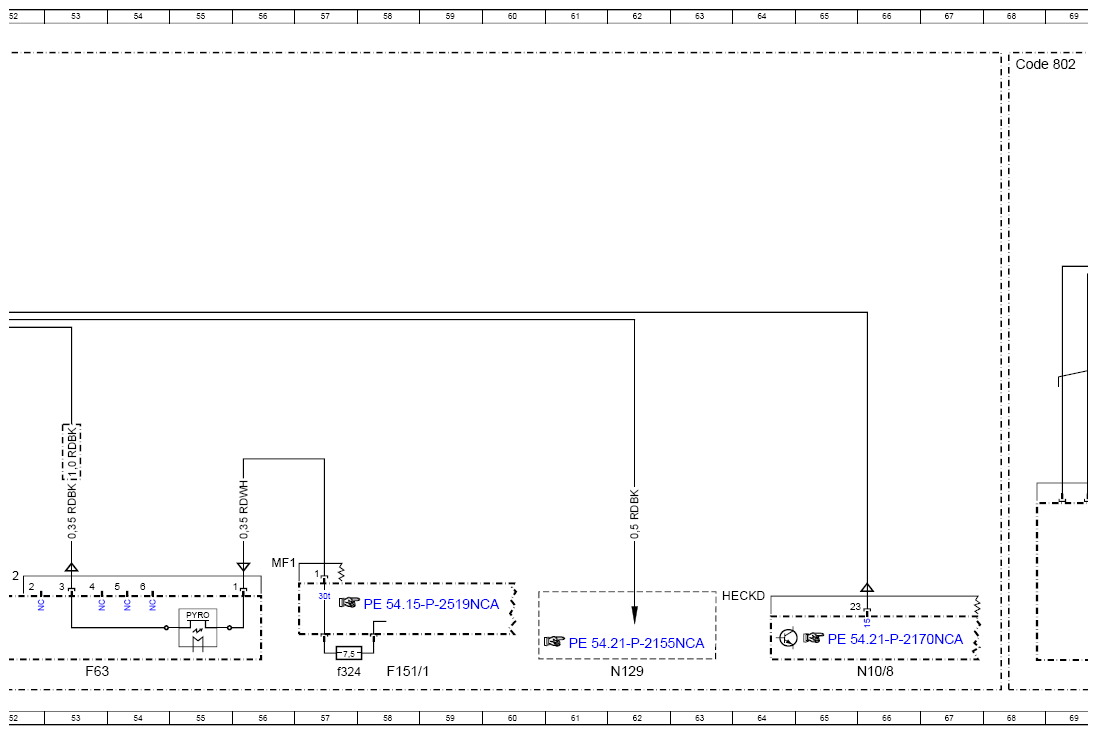

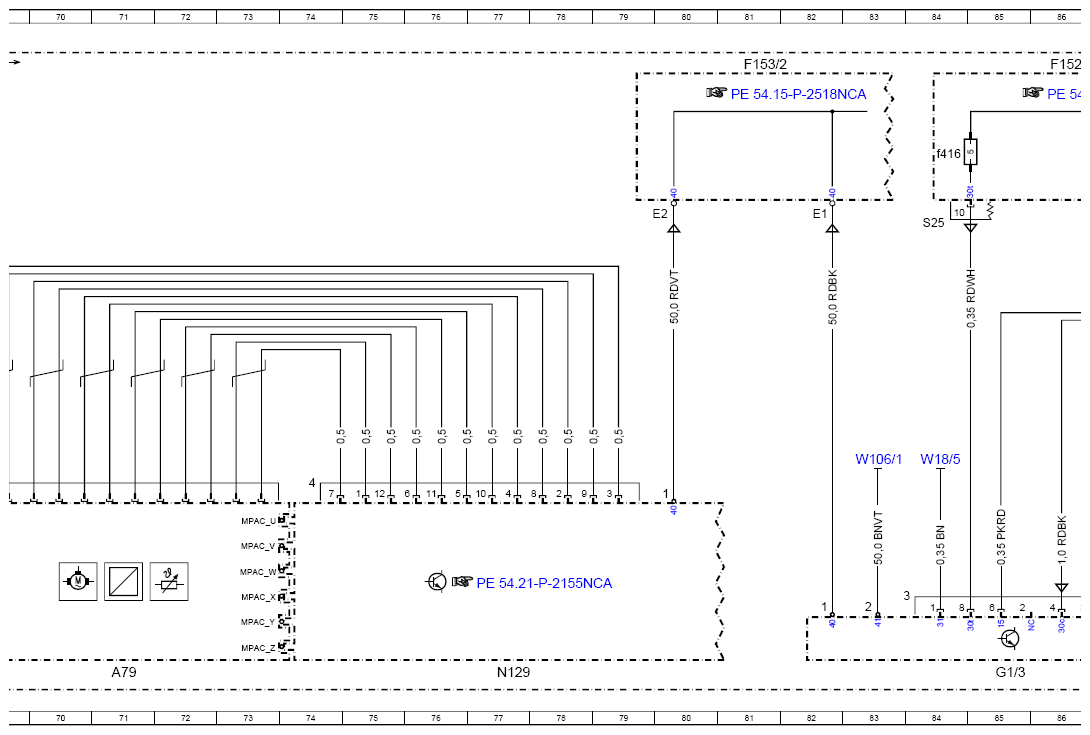

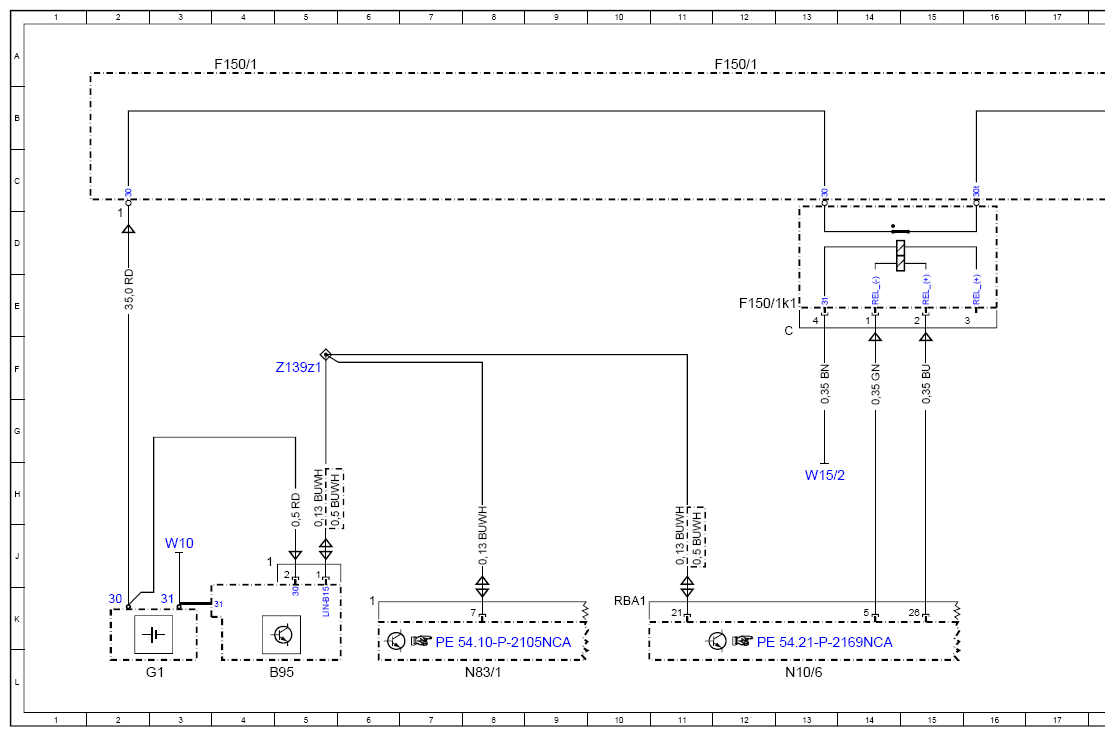

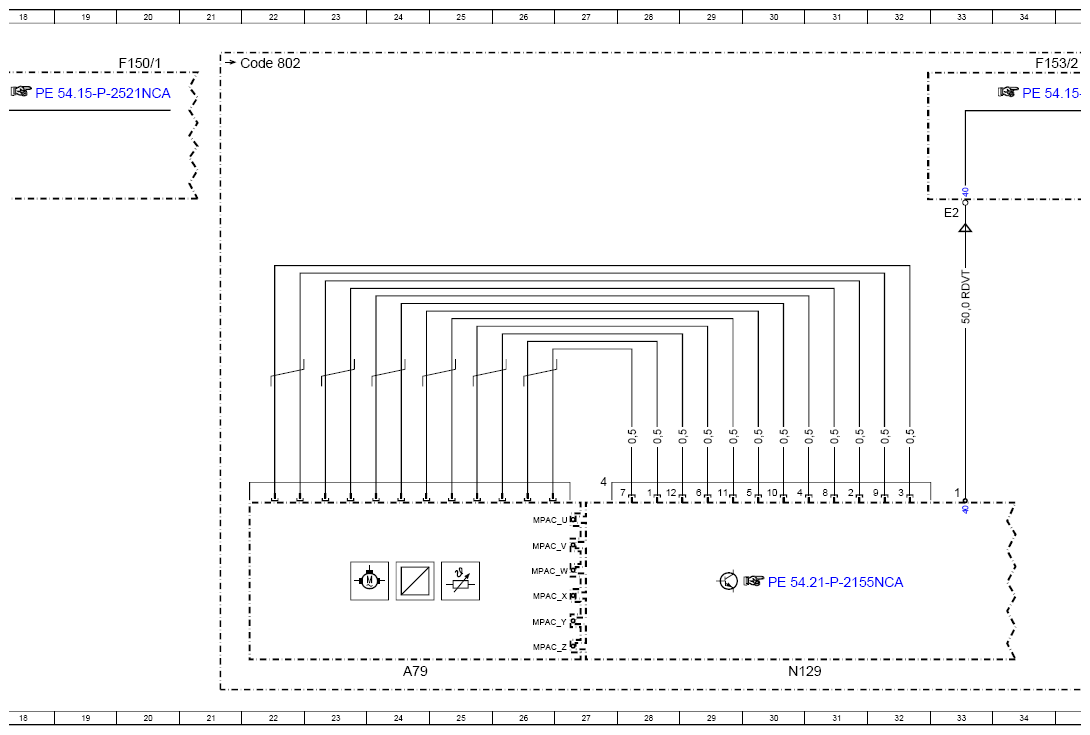

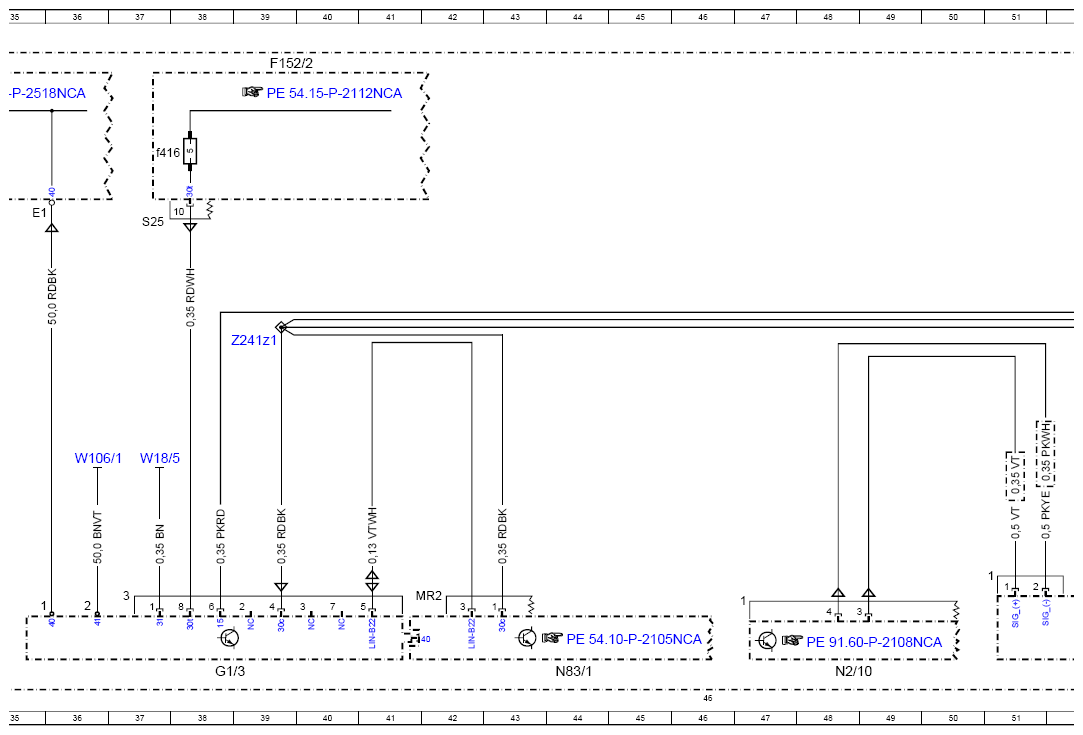

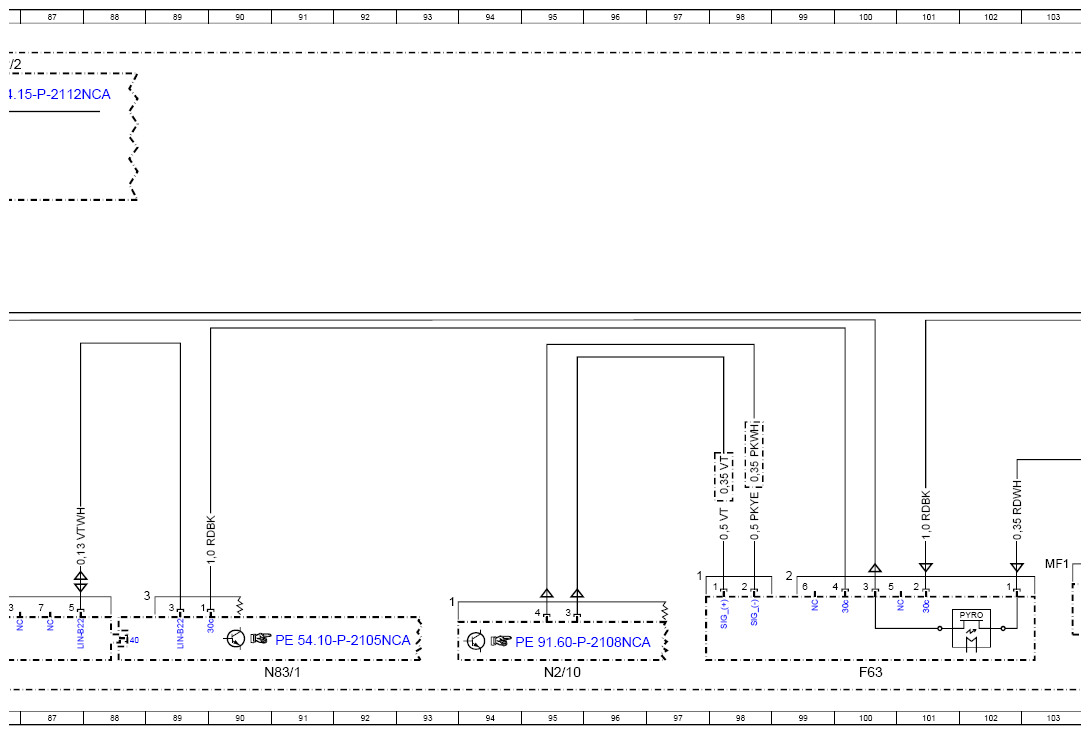

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97NCB
Model 167 With Code B01 (48V Technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A79 | Integrated starter generator | 24L |
| A79 | Integrated starter generator | 71L |
| B95 | Battery sensor | 5L |
| Code 802 | YoM 21/1 | 21A |
| Code 802 | YoM 21/1 | 68A |
| F150/1 | Starter battery prefuse box | 4A |
| F150/1 | Starter battery prefuse box | 12A |
| F150/1 | Starter battery prefuse box | 20A |
| F150/1k1 | Battery disconnect switch relay | 12E |
| F151/1 | Passenger-side A-pillar fuse box | 58L |
| F151/1 | Passenger-side A-pillar fuse box | 105L |
| F151/1f324 | Fuse 324 | 57L |
| F151/1f324 | Fuse 324 | 104L |
| F152/2 | Rear fuse and relay module | 39A |
| F152/2 | Rear fuse and relay module | 86A |
| F152/2f416 | Fuse 416 | 37C |
| F152/2f416 | Fuse 416 | 84C |
| F153/2 | Engine compartment 48V fuse box | 34A |
| F153/2 | Engine compartment 48V fuse box | 81A |
| F63 | Pyrofuse | 53L |
| F63 | Pyrofuse | 100L |
| G1 | On-board electrical system battery | 3L |
| G1/3 | 48 V on-board electrical system battery | 38L |
| G1/3 | 48 V on-board electrical system battery | 85L |
| N10/6 | Front central control unit | 13L |
| N10/8 | Rear central control unit | 66L |
| N10/8 | Rear central control unit | 112L |
| N129 | Starter generator control unit | 30L |
| N129 | Starter generator control unit | 62L |
| N129 | Starter generator control unit | 77L |
| N129 | Starter generator control unit | 108L |
| N2/10 | Supplemental restraint system control unit | 48L |
| N2/10 | Supplemental restraint system control unit | 95L |
| N83/1 | DC/DC converter control unit | 8L |
| N83/1 | DC/DC converter control unit | 44L |
| N83/1 | DC/DC converter control unit | 91L |
| W10 | Battery ground point | 3J |
| W106/1 | 48 V on-board electrical system battery ground point | 36H |
| W106/1 | 48 V on-board electrical system battery ground point | 83H |
| W15/2 | Left footwell ground point | 13H |
| W18/5 | Right B-pillar ground point | 37H |
| W18/5 | Right B-pillar ground point | 84H |
| Z139z1 | Battery sensor connector sleeve | 5F |
| Z241z1 | Circuit 30c connector sleeve | 39F |
