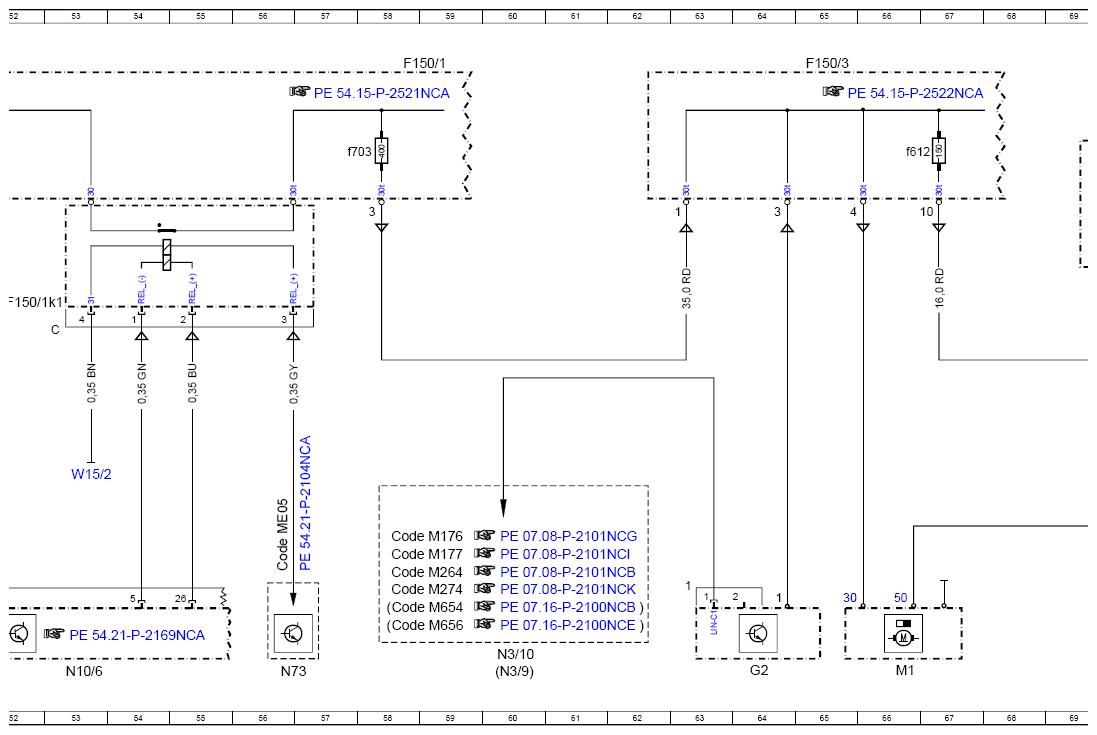

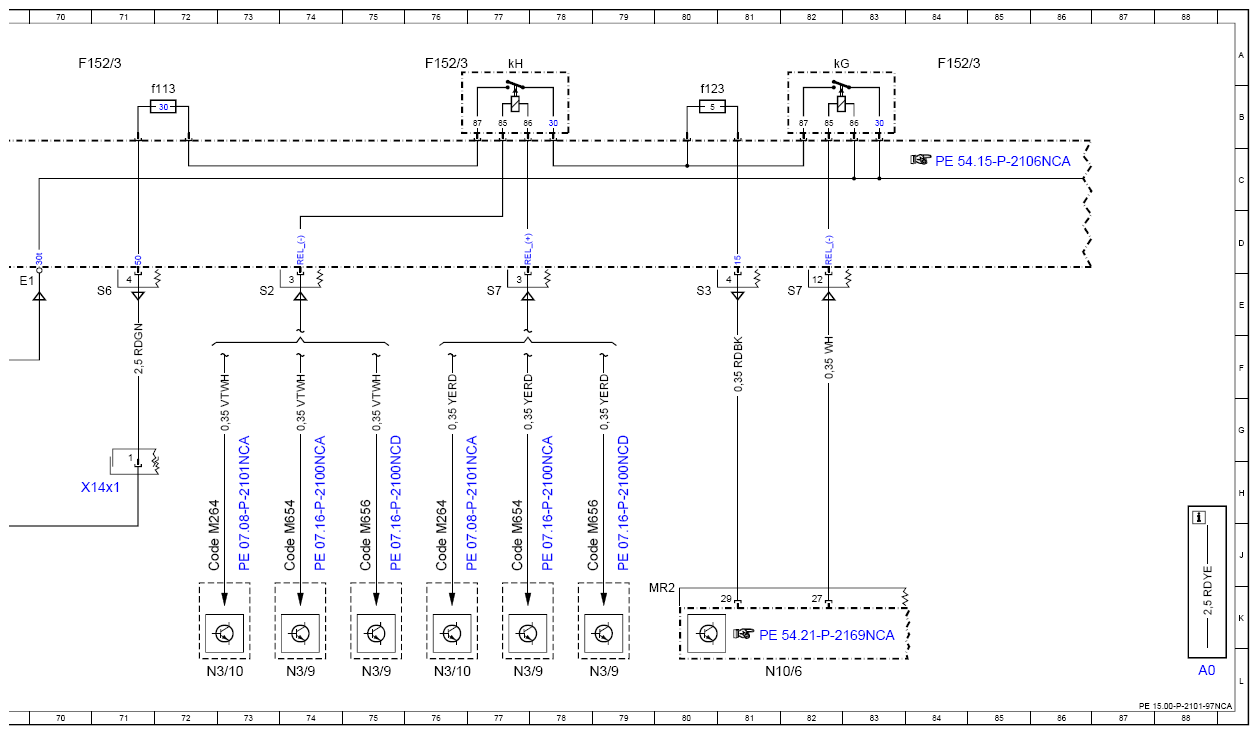

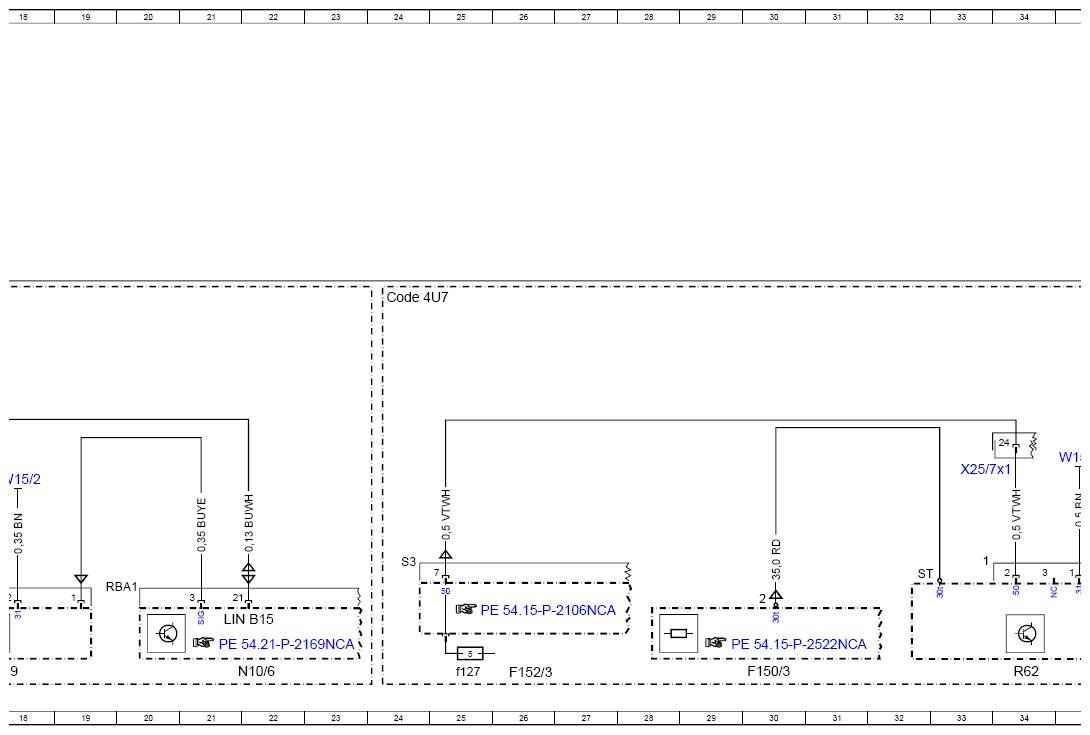

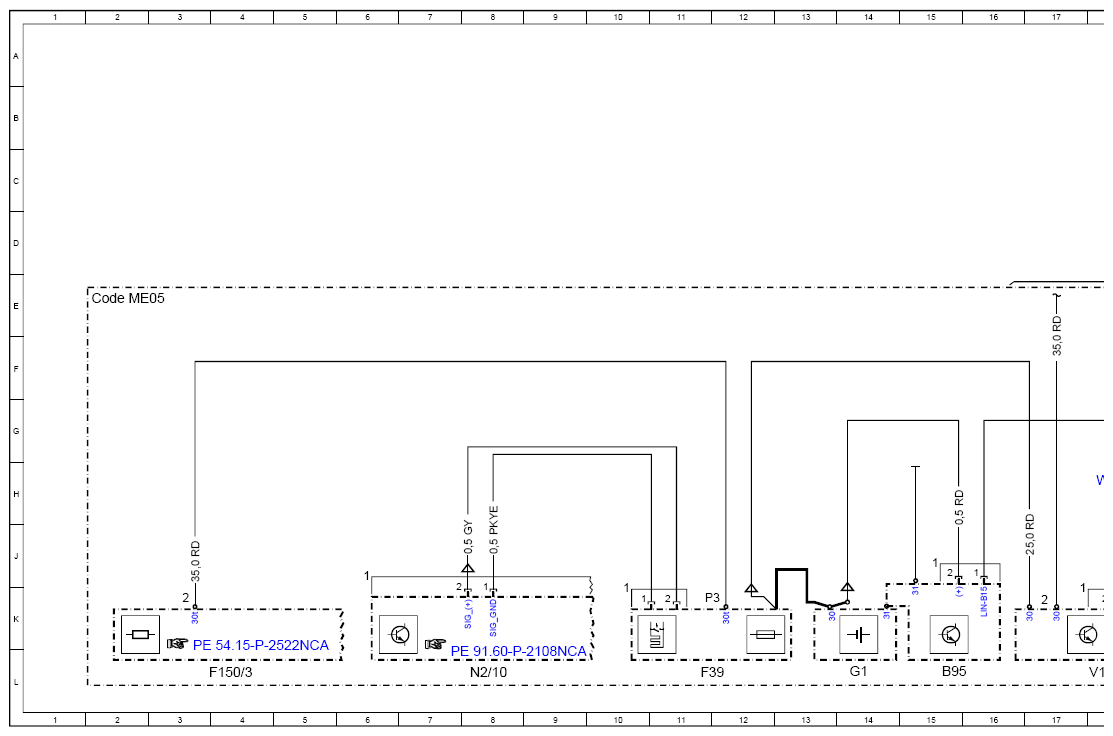

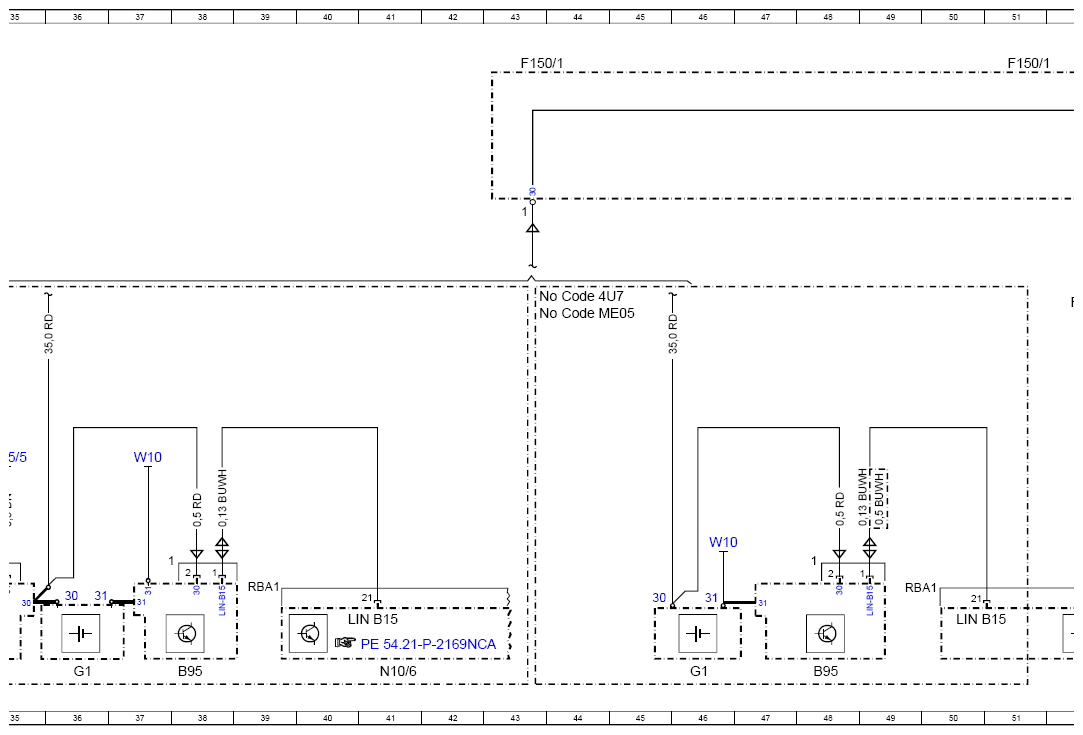

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97NCA
Model 167 Except Code B01 (48V Technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| B95 | Battery sensor | 48L |
| B95 | Battery sensor | 38L |
| B95 | Battery sensor | 15L |
| Code 4U7 | Start/stop voltage dip protection | 44E |
| Code 4U7 | Start/stop voltage dip protection | 24E |
| Code M176 | V8-SPARK-IGNITI0N Engine M176 | 58J |
| Code M177 | V8 SPARK-IGNITION Engine M177 - AMG | 58J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION Engine M264 | 73J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION Engine M264 | 76J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION Engine M264 | 58J |
| Code M274 | SPARK-IGNITION Engine M274 | 58K |
| Code M654 | 4-CYLINDER INLINE DIESEL Engine 0M654 | 74J |
| Code M654 | 4-CYLINDER INLINE DIESEL Engine 0M654 | 77J |
| Code M654 | 4-CYLINDER INLINE DIESEL Engine 0M654 | 58K |
| Code M656 | 6-CYLINDER INLINE DIESEL Engine 0M656 | 75J |
| Code M656 | 6-CYLINDER INLINE DIESEL Engine 0M656 | 79J |
| Code M656 | 6-CYLINDER INLINE DIESEL Engine 0M656 | 58K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 56J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 2E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 44E |
| F150/1 | Starter battery prefuse box | 43A |
| F150/1 | Starter battery prefuse box | 58A |
| F150/1 | Starter battery prefuse box | 51A |
| F150/1f703 | Electrical fuse 703 | 58C |
| F150/1M | Battery disconnect switch relay | 52E |
| F150/3 | Engine compartment prefuse box | 65A |
| F150/3 | Engine compartment prefuse box | 30L |
| F150/3 | Engine compartment prefuse box | 4L |
| F150/3f612 | Electrical fuse 612 | 66C |
| F152/3 | Engine compartment fuse and relay module | 70A |
| F152/3 | Engine compartment fuse and relay module | 76A |
| F152/3 | Engine compartment fuse and relay module | 84A |
| F152/3 | Engine compartment fuse and relay module | 26L |
| F152/3f113 | Fuse 113 | 72B |
| F152/3f123 | Fuse 123 | 80B |
| F152/3f127 | Fuse 127 | 25L |
| F152/3kG | Engine compartment terminal 15 relay | 82A |
| F152/3kH | Circuit 50 relay | 77A |
| F39 | Battery terminal pyrofuse | 11L |
| G1 | On-board electrical system battery | 46L |
| G1 | On-board electrical system battery | 36L |
| G1 | On-board electrical system battery | 14L |
| G2 | Alternator | 64L |
| LIN B15 | Battery sensor LIN | 41K |
| LIN B15 | Battery sensor LIN | 50K |
| LIN B15 | Battery sensor LIN | 21K |
| M1 | Starter | 66L |
| N10/6 | Front central control unit | 81L |
| N10/6 | Front central control unit | 41L |
| N10/6 | Front central control unit | 53L |
| N10/6 | Front central control unit | 22L |
| N2/10 | Supplemental restraint system control unit | 8L |
| N3/10 | ME-SFI [ME] control unit | 76L |
| N3/10 | ME-SFI [ME] control unit | 72L |
| N3/10 | ME-SFI [ME] control unit | 60L |
| N3/9 | CDI control unit | 77L |
| N3/9 | CDI control unit | 79L |
| N3/9 | CDI control unit | 74L |
| N3/9 | CDI control unit | 75L |
| N3/9 | CDI control unit | 60L |
| N73 | Electronic ignition switch control unit | 56L |
| R62 | Voltage dip limiter | 34L |
| V19 | ECO start/stop function diode | 18L |
| W10 | Battery ground point | 46J |
| W10 | Battery ground point | 37H |
| W15/2 | Left footwell ground point | 53H |
| W15/2 | Left footwell ground point | 18H |
| W15/5 | Left front footwell ground point | 35H |
| X14x1 | Circuit 50 electrical connector | 71H |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 33H |
