Remove/Install Upper Slide Timing Chain Rail - AR05.10-P-8421MSC
Engine 256.9 In Model 167
MODIFICATION NOTES
| 26.02.2020 | Bearing pin on crankcase cylinder head | BA05.10-P-1004-01MRT |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |

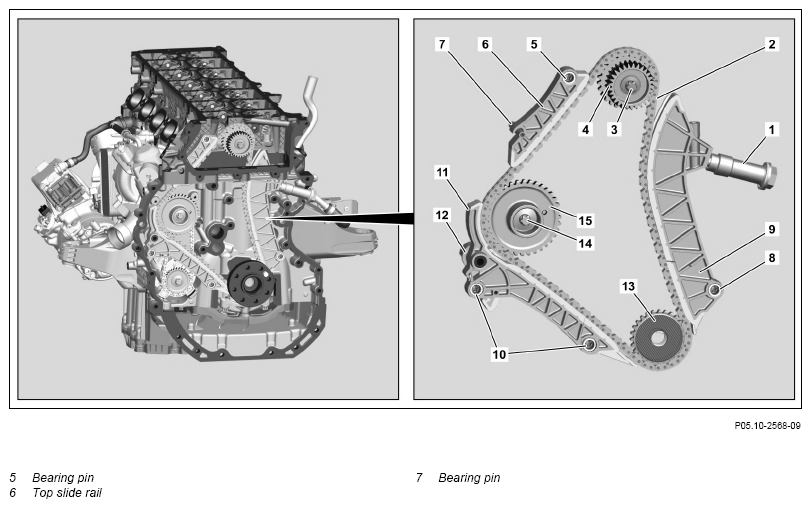

| Remove/install | |||
| 1 | Remove the camshaft positioner of the intake camshaft. | AR05.20-P-7206MSC | |
| 2 | Remove bearing pin (5). | *BA05.10-P-1004-01MRT | |
| 3 | Detach upper slide rail (6) from bearing pin (7) in upward direction and remove. | ||
| Check | |||
| 4 | Check upper slide rail (6) for wear and damage. | If upper slide rail (6) is damaged. ↓ Replace upper slide rail (6). |
|
| 5 | Install in the reverse order. |
CAMSHAFT POSITIONER, TIMING CHAIN DRIVE
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA05.10-P-1004-01MRT | Bearing pin on crankcase cylinder head | Nm | 20 |
