Remove/Install Filler Neck For Engine Oil - AR01.40-P-0004MNP
Engine 177 In Model 167
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove left air filter housing. | AR09.10-P-1151MNP | |

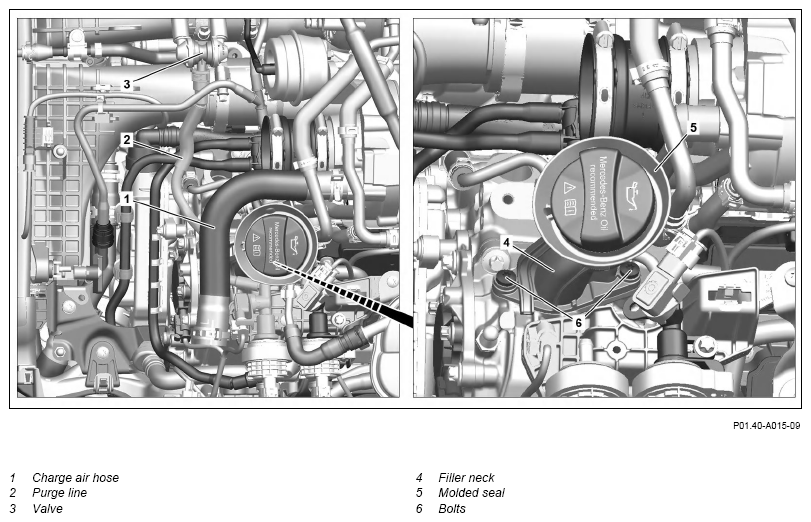

| 2 | Remove charge air hose (1) from exhaust gas turbocharger. | Fig 2 | |
| 3 | Remove purge line (2) from valve (3) and place to one side. | ||
| 4 | Remove expansion reservoir of the low-temperature circuit and place to one side with connected lines. | AR09.41-P-0001MNP | |
| 5 | Remove screws (6) and remove filler neck (4) from cylinder head cover. | *BA01.20-P-1006-01J | |
| Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A | ||
| Fig 3 | |||
| 6 | Reuse form seal (5) and cap of filler neck (4). | When replacing filler neck (4). | |
| 7 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform engine test run. While doing so, check engine for proper operation and leak tightness. |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA01.20-P-1006-01J | Bolt, filler neck to cylinder head cover | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
