Remove/Install Left Rear Engine Lifting Lug - AR01.20-P-5010-02MNP

Engine 177 In Model 167

CYLINDER HEAD

Number Designation Engine 177
BA01.30-P-1003-01N Bolt, heat shield/rear lifting eye to cylinder head M6 Nm 9

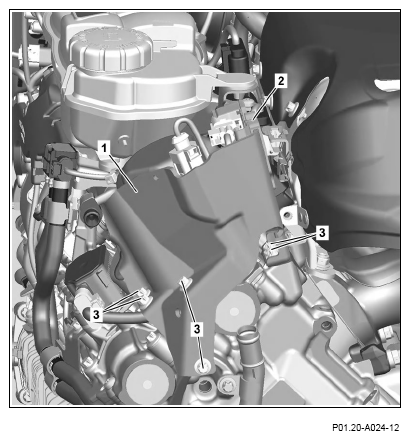

  1. Unclip bracket (2) and place to one side with connected lines.
  2. Remove screws (3) TORQUE SPECIFICATION .
  3. Remove engine lifting lug (1) upward.
  4. Install in the reverse order.
G14785734Courtesy of MERCEDES-BENZ USA
