Remove/Install Oil Return Flow Line Of Turbocharger - AR09.40-P-6021MSC

Engine 256.9 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  To skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove exhaust gas aftertreatment unit.		AR49.20-P-1500MSC
		: Only install upper Engine cover and lower Engine compartment paneling after the performing a leak test.

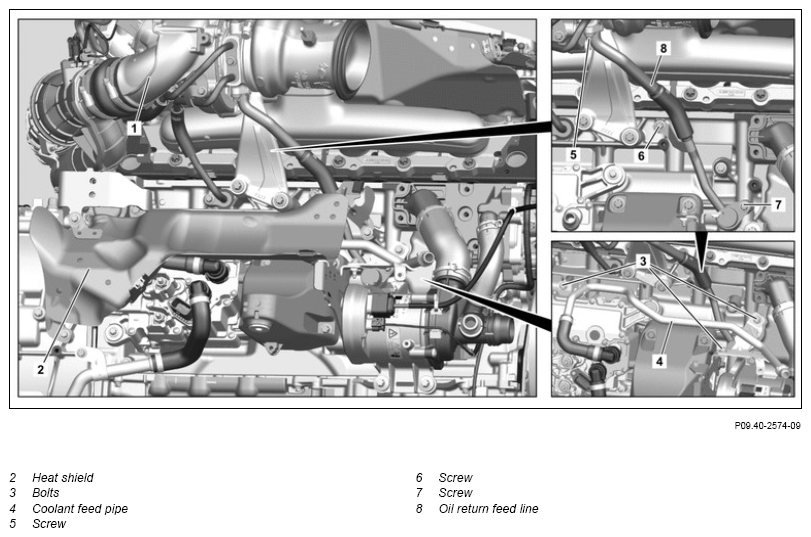

2	Remove heat shield (2).	Screw, heat shield to crankcase/catalytic converter bracket/ Engine mount heat shield	*BA22.10-P-1004-02A
3	Unscrew the screws (3) and place coolant feed line (4) to one side.	Bolt, coolant feed pipe to crankcase	*BA15.40-P-1010-02MRT
4	Remove screws (5, 6, 7).	Bolt, oil return line to turbocharger/crankcase	*BA09.40-P-1008-02MRT
5	Remove oil return feed line (8) and seal openings with protective covers and suitable stop plugs.	: Replace sealing rings.
		Set of protective covers	Fig 1
		Record plug	Fig 2
6	Install in the reverse order.
7	Check Engine oil level and correct.
			AP18.00-P-1812SKI
	Risk of accident  from vehicle starting off by itself when Engine running. Risk of injury  (bruises and burns) resulting from working on the Engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Carry out Engine test run and check Engine for proper operation and leak tightness.
9	Install lower Engine compartment lining.		AR61.20-P-1105ME
10	Install upper Engine cover.		AR01.10-P-2405MSC

TURBOCHARGER

Number	Designation			Engine 256.9
BA09.40-P-1008-02MRT	Bolt, oil return line to turbocharger/crankcase	Stage 1	Nm	8
		Stage 2	∠°	60

STARTER-ALTERNATOR

Number	Designation		Engine 256
BA15.40-P-1010-02MRT	Bolt, coolant feed pipe to crankcase	Nm	8

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Engine 256
BA22.10-P-1004-02A	Screw, heat shield to crankcase/catalytic converter bracket/ Engine mount heat shield	Nm	8

Fig 1: Identifying Set Of Protective Covers (001 589 11 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
