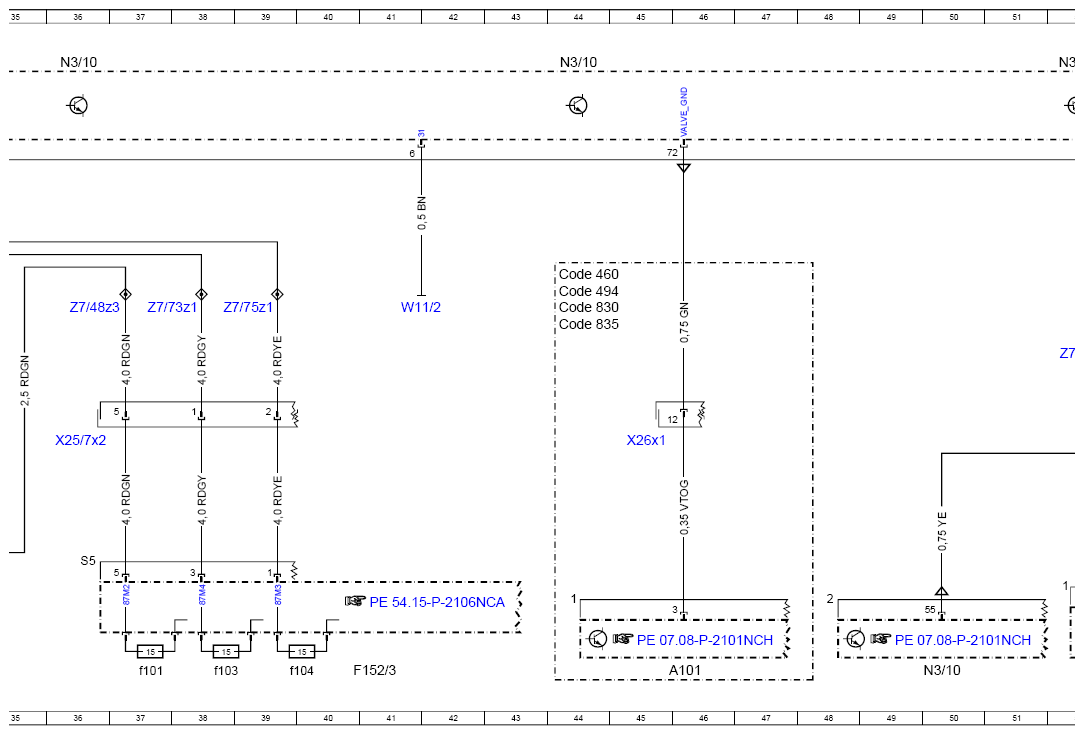

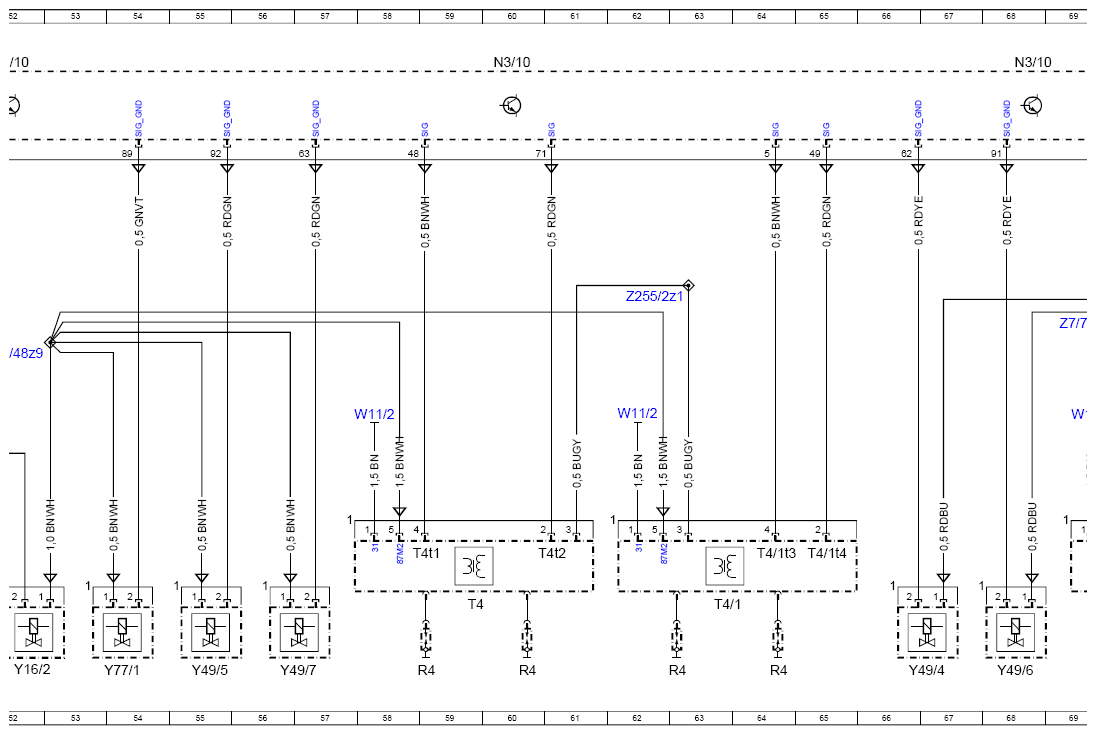

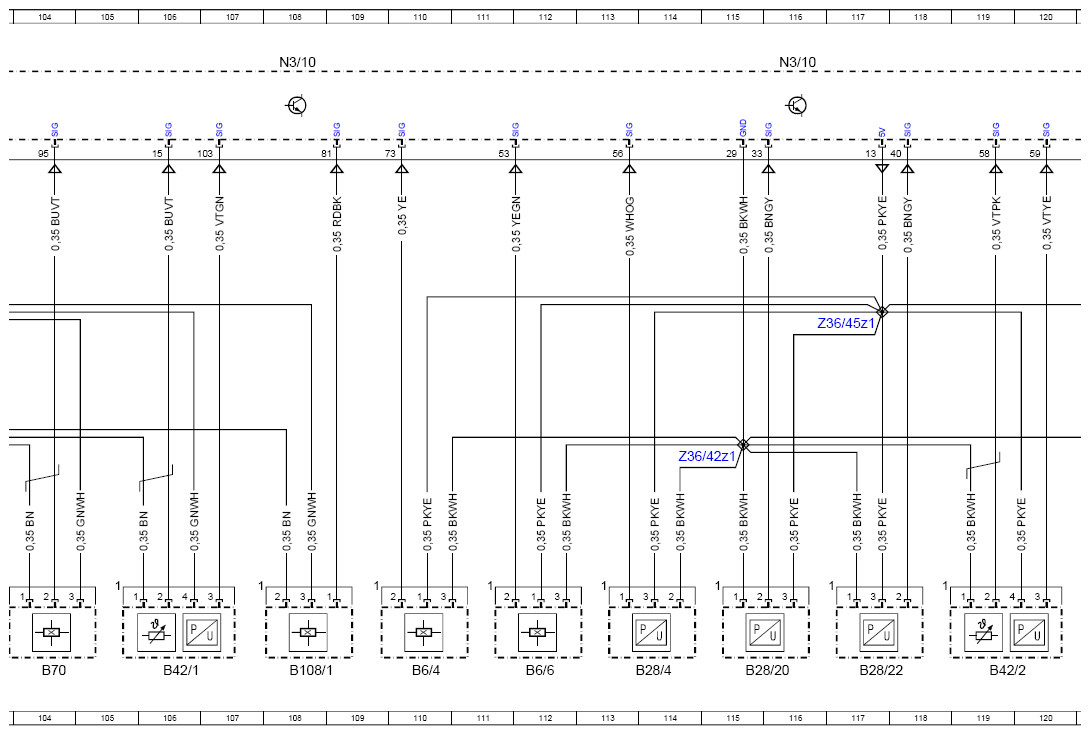

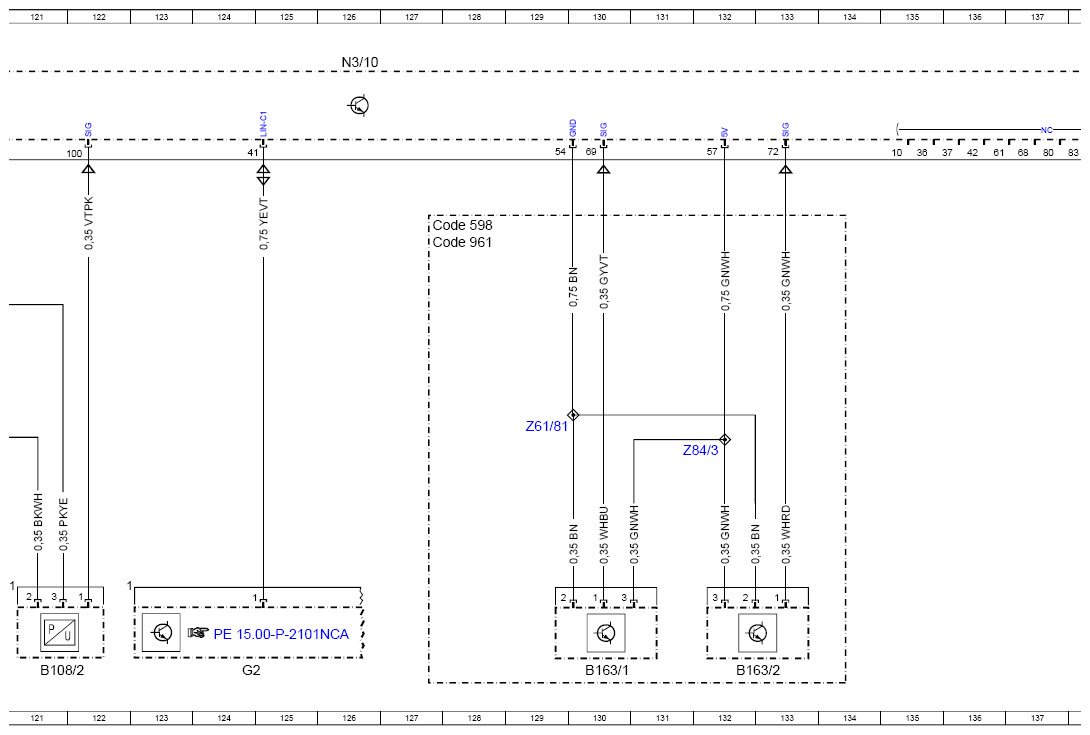

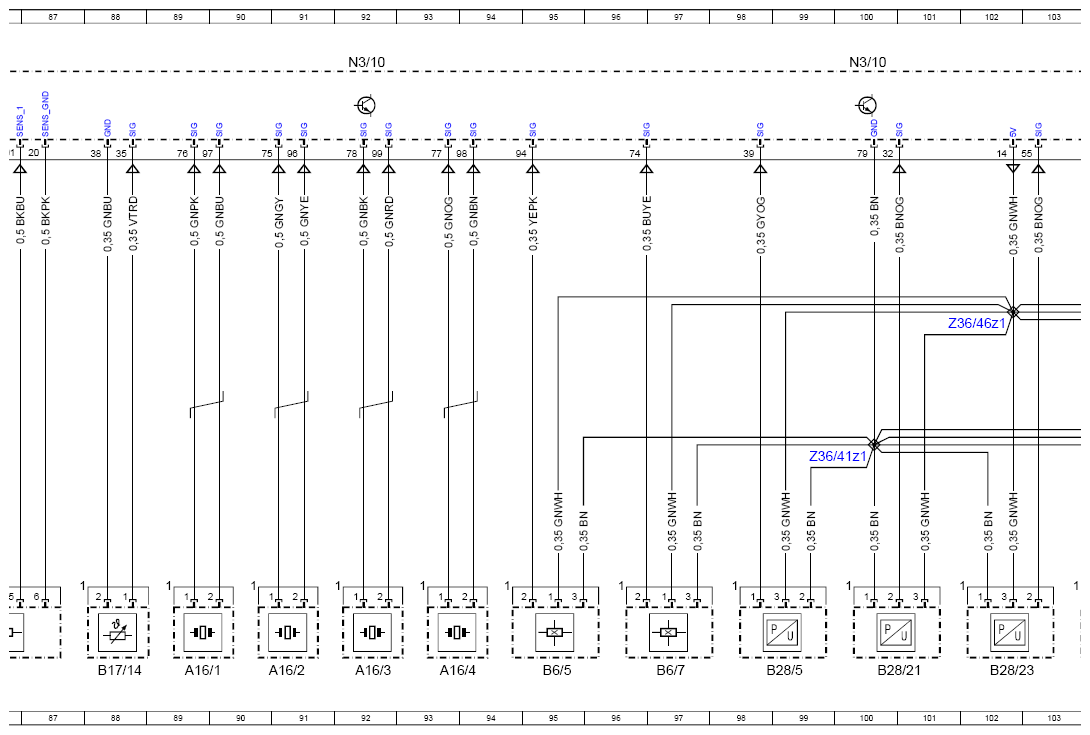

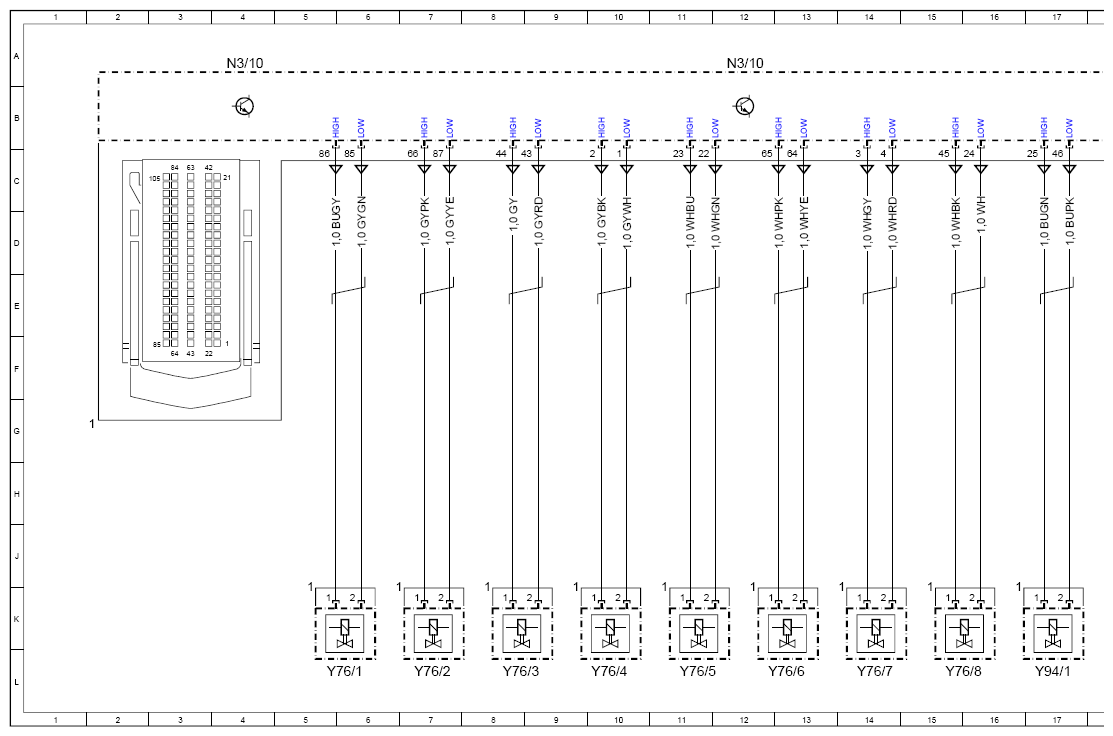

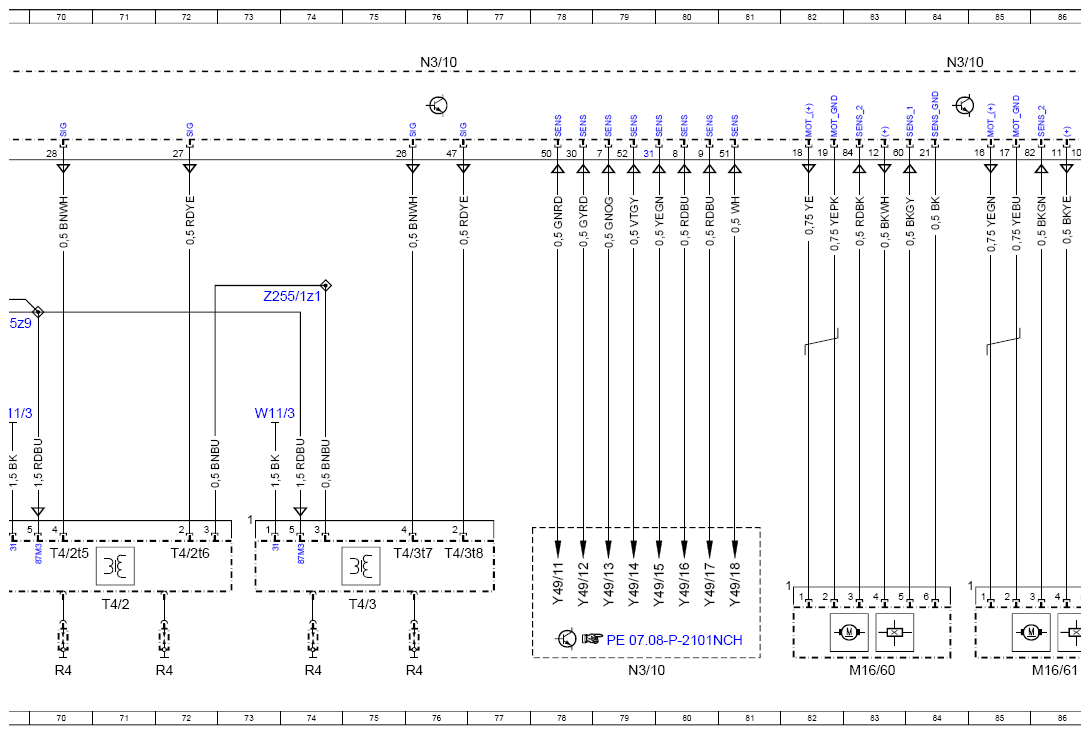

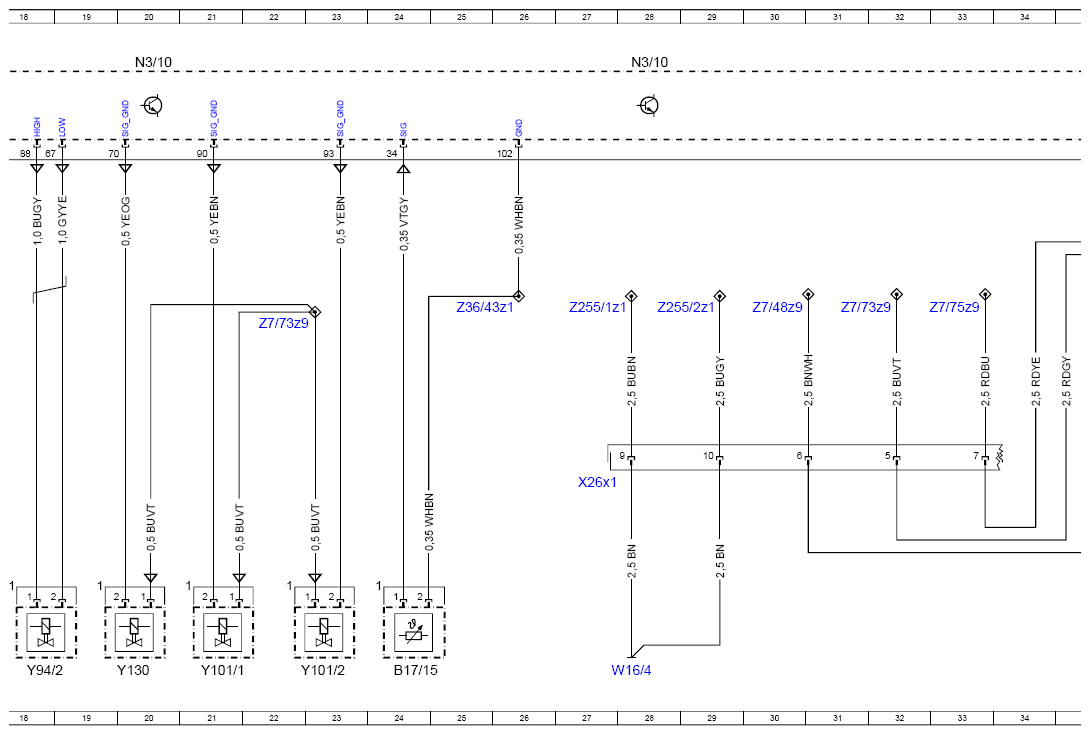

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NCI
Engine 177 in model 167

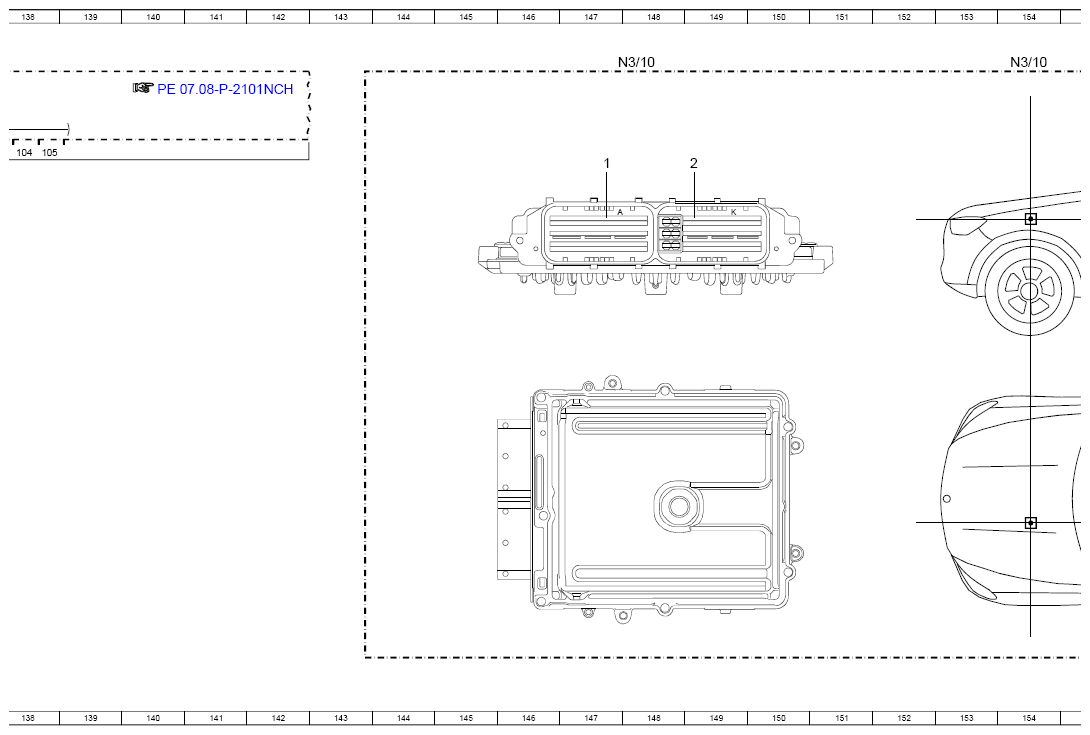

Control unit N3/10, engine connector
| Code: | Designation: | Position: |
|---|---|---|

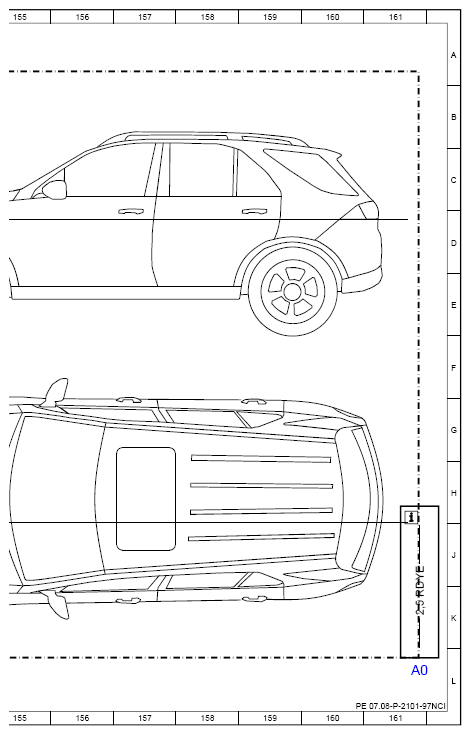

| A0 | Use of wiring diagrams | 161L |
| A101 | Fuel tank diagnostic module | 46L |
| A16/1 | Knock sensor 1 | 89L |
| A16/2 | Knock sensor 2 | 91L |
| A16/3 | Knock sensor 3 | 92L |
| A16/4 | Knock sensor 4 | 93L |
| B108/1 | Left purge pressure sensor | 108L |
| B108/2 | Right purge pressure sensor | 121L |
| B163/1 | Temperature sensor upstream of left gasoline particulate filter | 130L |
| B163/2 | Temperature sensor upstream of right gasoline particulate filter | 132L |
| B17/14 | Left charge air temperature sensor | 88L |
| B17/15 | Right charge air temperature sensor | 24L |
| B28/20 | Left pressure sensor upstream of throttle valve | 115L |
| B28/21 | Right pressure sensor upstream of throttle valve | 100L |
| B28/22 | Left pressure sensor downstream of throttle valve | 117L |
| B28/23 | Right pressure sensor downstream of throttle valve | 102L |
| B28/4 | Pressure sensor downstream air filter, left cylinder bank | 114L |
| B28/5 | Pressure sensor downstream of air filter, right cylinder bank | 99L |
| B42/1 | Right fuel pressure and temperature sensor | 106L |
| B42/2 | Left fuel pressure and temperature sensor | 119L |
| B6/4 | Left intake camshaft Hall sensor | 110L |
| B6/5 | Right intake camshaft Hall sensor | 95L |
| B6/6 | Left exhaust camshaft Hall sensor | 112L |
| B6/7 | Right exhaust camshaft Hall sensor | 97L |
| B70 | Crankshaft Hall sensor | 104L |
| Code 460 | Canada version | 44E |
| Code 494 | USA version | 44E |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 127D |
| Code 830 | Additional parts for China vehicles | 44E |
| Code 835 | Additional parts for South Korea vehicles | 44E |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 127D |
| F152/3 | Engine compartment fuse and relay module | 41L |
| F152/3f101 | Fuse 101 | 37L |
| F152/3f103 | Fuse 103 | 38L |
| F152/3f104 | Fuse 104 | 39L |
| G2 | Alternator | 124L |
| M16/60 | Left throttle valve actuator | 83L |
| M16/61 | Right throttle valve actuator | 86L |
| N3/10 | ME-SFI [ME] control unit | 79L |
| N3/10 | ME-SFI [ME] control unit | 50L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 148A |
| N3/10 | ME-SFI [ME] control unit | 154A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| N3/10 | ME-SFI [ME] control unit | 116A |
| N3/10 | ME-SFI [ME] control unit | 126A |
| R4 | Spark plugs | 59L |
| R4 | Spark plugs | 60L |
| R4 | Spark plugs | 63L |
| R4 | Spark plugs | 64L |
| R4 | Spark plugs | 70L |
| R4 | Spark plugs | 72L |
| R4 | Spark plugs | 74L |
| R4 | Spark plugs | 76L |
| T4 | Cylinder 1+2 ignition coil | 59K |
| T4/1 | Cylinder 3+4 ignition coil | 63K |
| T4/U3 | Cylinder 3 ignition coil | 64J |
| T4/U4 | Cylinder 4 ignition coil | 65J |
| T4/2 | Cylinders 5+6 ignition coil | 71K |
| T4/2t5 | Cylinder 5 ignition coil | 70J |
| T4/2t6 | Cylinder 6 ignition coil | 72J |
| T4/3 | Cylinders 7+8 ignition coil | 75K |
| T4/3t7 | Cylinder 7 ignition coil | 75J |
| T4/3t8 | Cylinder 8 ignition coil | 76J |
| T4t1 | Cylinder 1 ignition coil | 58J |
| T4t2 | Cylinder 2 ignition coil | 61J |
| W11/2 | Right combustion engine ground point | 58G |
| W11/2 | Right combustion engine ground point | 41E |
| W11/2 | Right combustion engine ground point | 62G |
| W11/3 | Left combustion engine ground point | 69G |
| W11/3 | Left combustion engine ground point | 73G |
| W16/4 | Right major assembly compartment ground point | 28L |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 36G |
| X26x1 | Interior and engine wiring harness electrical connector | 27H |
| X26x1 | Interior and engine wiring harness electrical connector | 45G |
| Y101/1 | Left bypass air switchover valve | 21L |
| Y101/2 | Right bypass air switchover valve | 23L |
| Y130 | Engine oil pump valve | 20L |
| Y16/2 | Heating system shutoff valve | 52L |
| Y49/11 | Cylinder 2 intake CAMTRONIC actuator | 78J |
| Y49/12 | Cylinder 2 exhaust CAMTRONIC actuator | 78J |
| Y49/13 | Cylinder 3 intake CAMTRONIC actuator | 79J |
| Y49/14 | Cylinder 3 exhaust CAMTRONIC actuator | 79J |
| Y49/15 | Cylinder 5 intake CAMTRONIC actuator | 79J |
| Y49/16 | Cylinder 5 exhaust CAMTRONIC actuator | 80J |
| Y49/17 | Cylinder 8 intake CAMTRONIC actuator | 80J |
| Y49/18 | Cylinder 8 exhaust CAMTRONIC actuator | 81J |
| Y49/4 | Left intake camshaft solenoid | 66L |
| Y49/5 | Right intake camshaft solenoid | 55L |
| Y49/6 | Left exhaust camshaft solenoid | 68L |
| Y49/7 | Right exhaust camshaft solenoid | 56L |
| Y76/1 | Cylinder 1 fuel injector | 5L |
| Y76/2 | Cylinder 2 fuel injector | 7L |
| Y76/3 | Cylinder 3 fuel injector | 8L |
| Y76/4 | Cylinder 4 fuel injector | 10L |
| Y76/5 | Cylinder 5 fuel injector | 11L |
| Y76/6 | Cylinder 6 fuel injector | 13L |
| Y76/7 | Cylinder 7 fuel injector | 14L |
| Y76/8 | Cylinder 8 fuel injector | 15L |
| Y77/1 | Boost pressure positioner | 54L |
| Y94/1 | Left quantity control valve | 17L |
| Y94/2 | Right quantity control valve | 18L |
| Z255/1z1 | Ground connection connector sleeve | 27E |
| Z255/1z1 | Ground connection connector sleeve | 74E |
| Z255/2z1 | Ground connection connector sleeve | 29E |
| Z255/2z1 | Ground connection connector sleeve | 62E |
| Z36/41z1 | Ground connection connector sleeve | 100G |
| Z36/42z1 | Ground connection connector sleeve | 115G |
| Z36/43z1 | Ground connection connector sleeve | 25E |
| Z36/45z1 | Voltage supply connector sleeve | 117E |
| Z36/46z1 | Voltage supply connector sleeve | 102E |
| Z61/81 | Sensor ground connection end sleeve | 129G |
| Z7/48z3 | Circuit 87M2 connector sleeve | 36E |
| Z7/48z9 | Circuit 87M2 connector sleeve | 30E |
| Z7/48z9 | Circuit 87M2 connector sleeve | 52F |
| Z7/73z1 | Circuit 87M4 connector sleeve | 38E |
| Z7/73z9 | Circuit 87M4 connector sleeve | 22E |
| Z7/73z9 | Circuit 87M4 connector sleeve | 31E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 39E |
| Z7/75z9 | Circuit 87M3 connector sleeve | 33E |
| Z7/75z9 | Circuit 87M3 connector sleeve | 69E |
| Z84/3 | 5 V power supply end sleeve | 132G |
