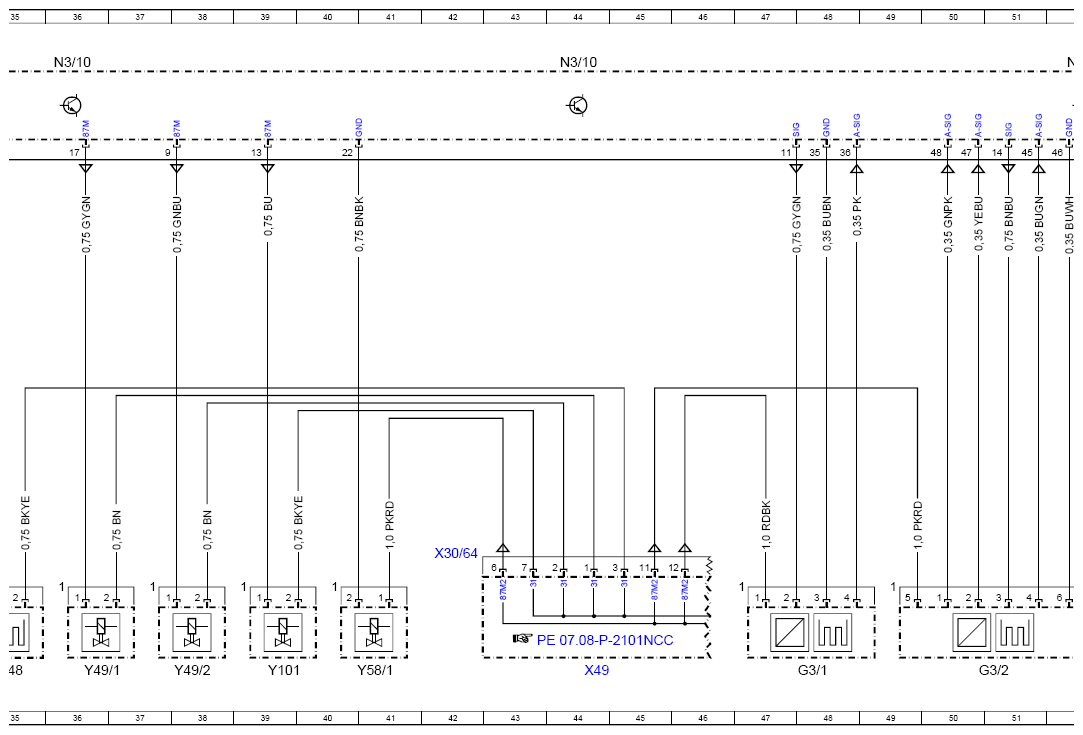

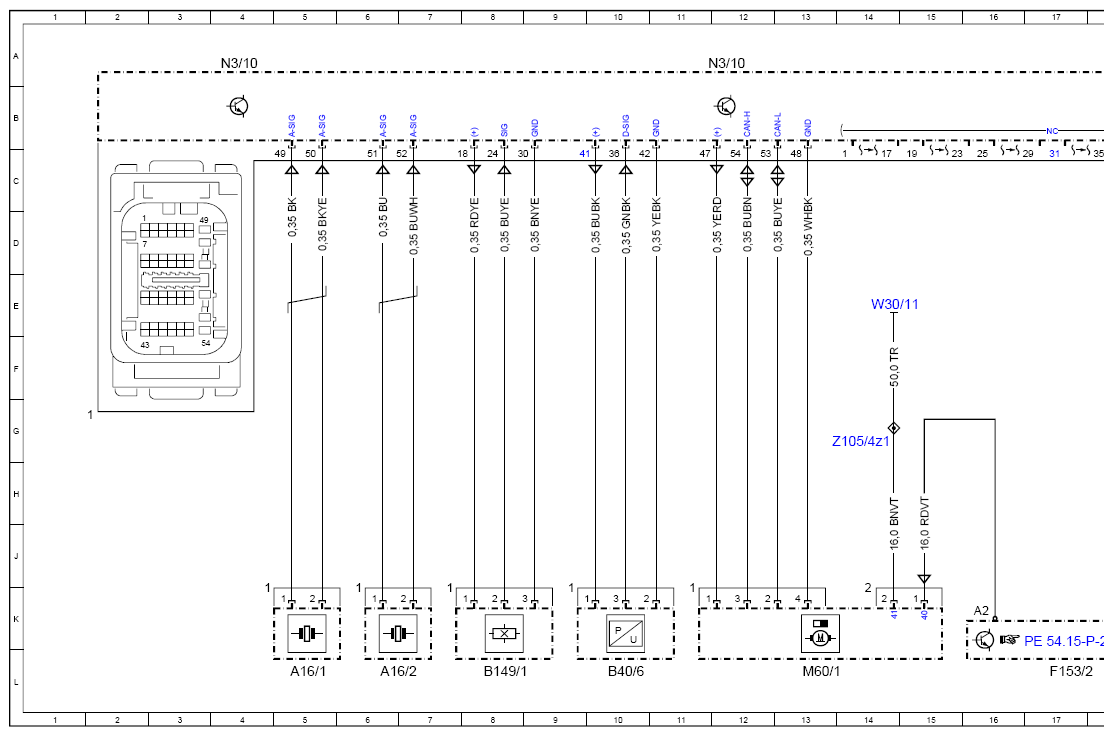

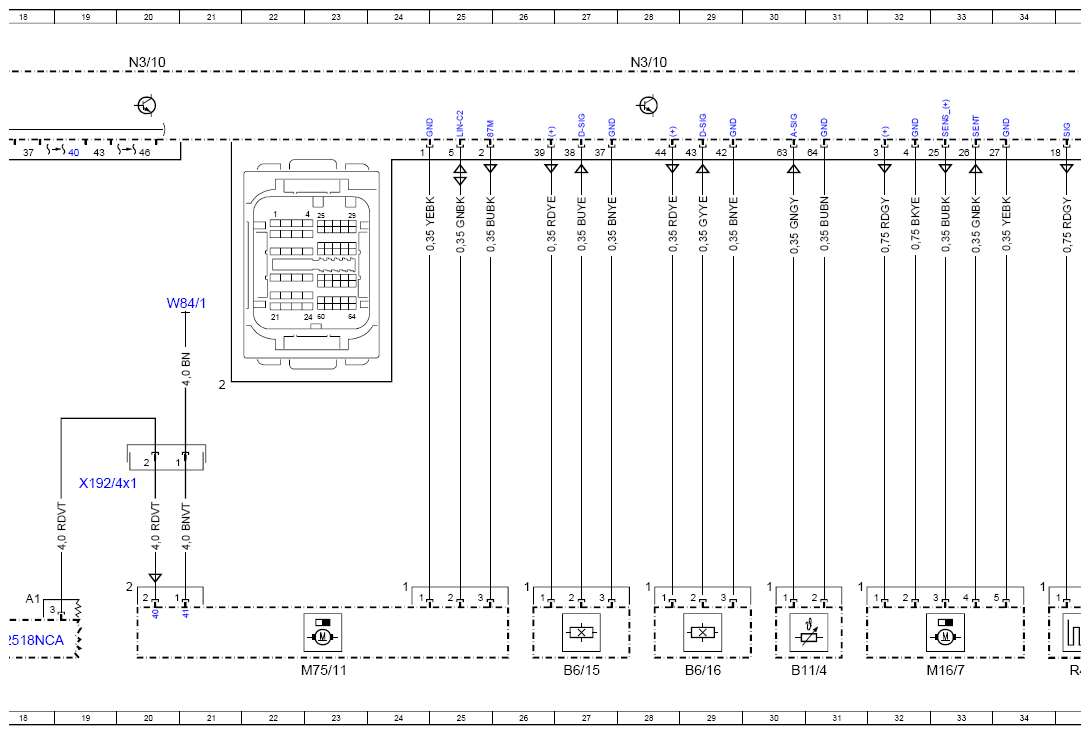

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NCD
Engine 256 in model 167

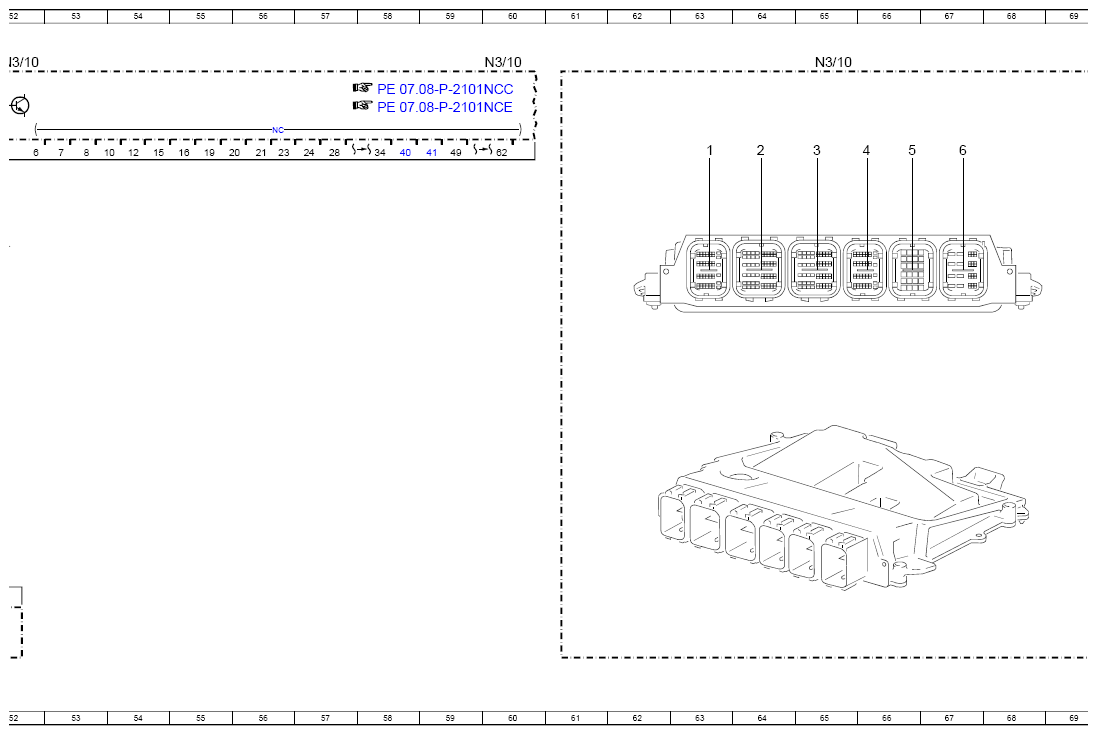

Control unit N3/10, connectors 1, 2
| Code: | Designation: | Position: |
|---|---|---|

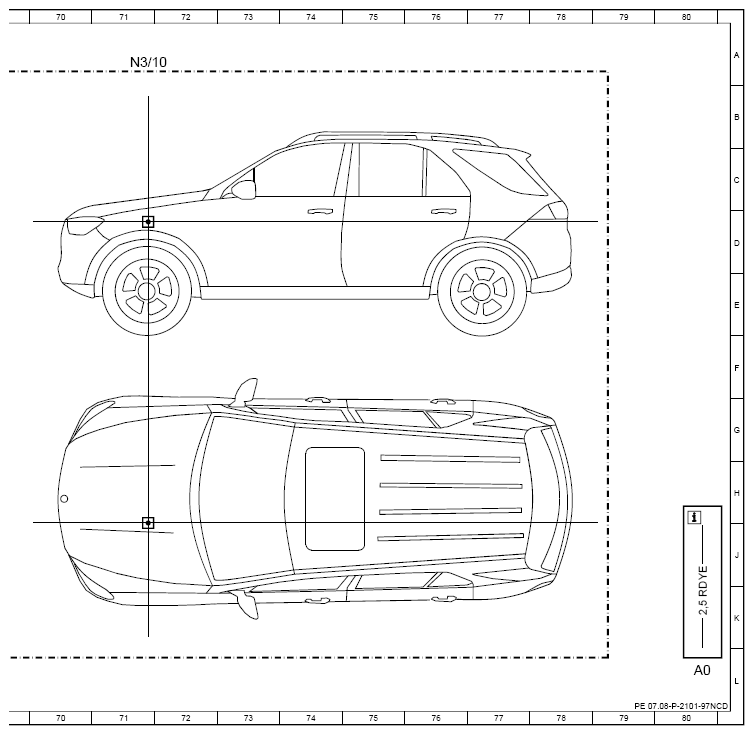

| A0 | Use of wiring diagrams | 80L |
| A16/1 | Knock sensor 1 | 5L |
| A16/2 | Knock sensor 2 | 6L |
| B11/4 | Coolant temperature sensor | 30L |
| B149/1 | Engine oil pressure and temperature sensor | 8L |
| B40/6 | Engine oil fill level sensor | 10L |
| B6/15 | Intake camshaft Hall sensor | 27L |
| B6/16 | Exhaust camshaft Hall sensor | 29L |
| F153/2 | Engine compartment 48V fuse box | 17L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 48L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 51L |
| M16/7 | Boost pressure control flap actuator | 33L |
| M60/1 | Electric additional compressor | 13L |
| M75/11 | Electric coolant pump | 23L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 65A |
| N3/10 | ME-SFI [ME] control unit | 71A |
| R48 | Coolant thermostat heating element | 35L |
| W30/11 | Underbody tml. 41 ground point | 14E |
| W84/1 | Windshield heater ground point | 20E |
| X192/4x1 | Coolant pump electrical connector | 19H |
| X30/64 | Potential distributor electrical connector | 42J |
| X49 | Potential distributor | 44L |
| Y101 | Divert air switchover valve | 39L |
| Y49/1 | Intake camshaft solenoid | 36L |
| Y49/2 | Exhaust camshaft solenoid | 38L |
| Y58/1 | Purge control valve | 41L |
| Z105/4z1 | Circuit 41 connector sleeve | 14G |
