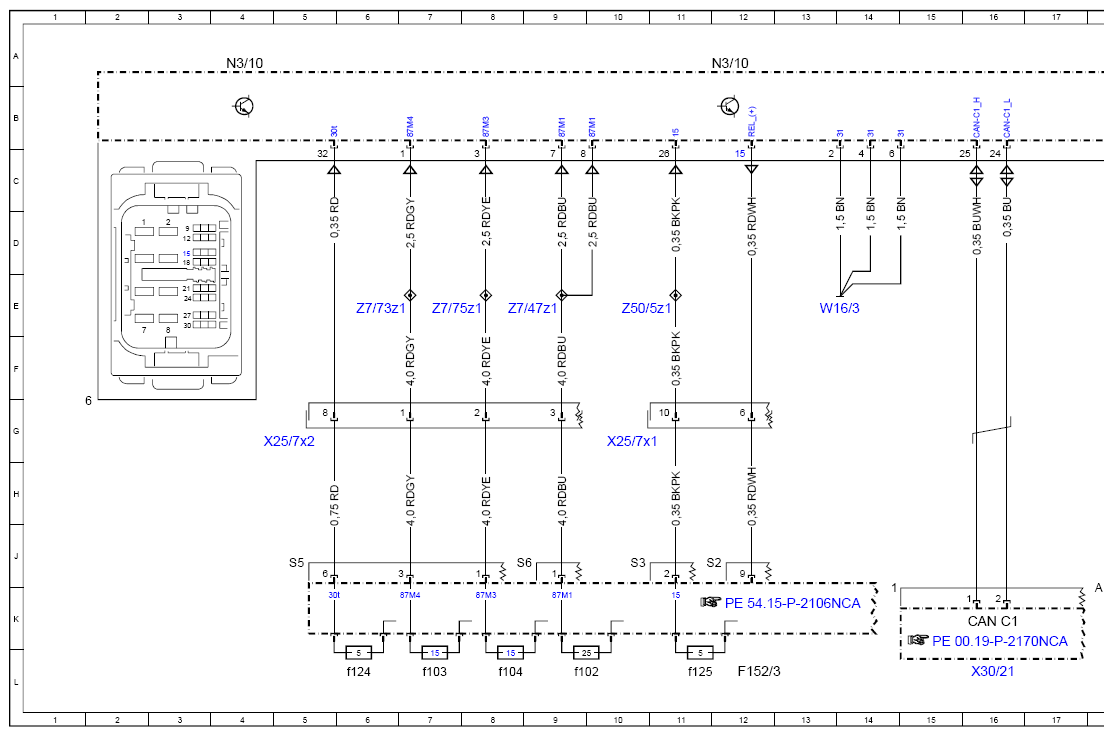

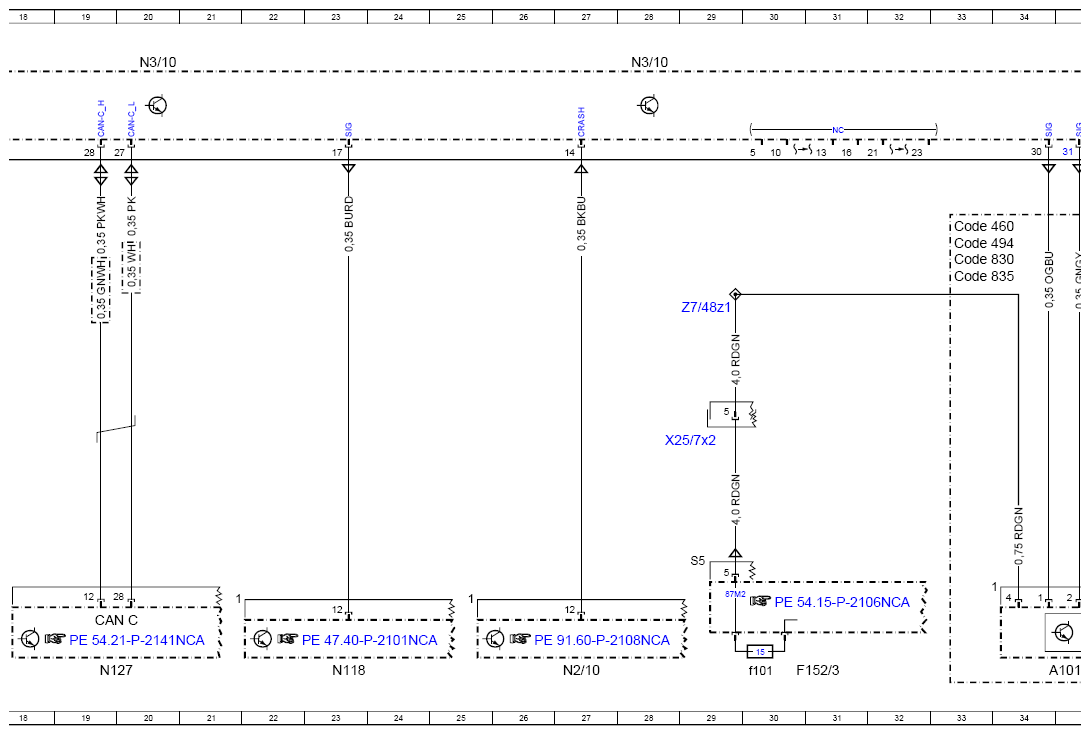

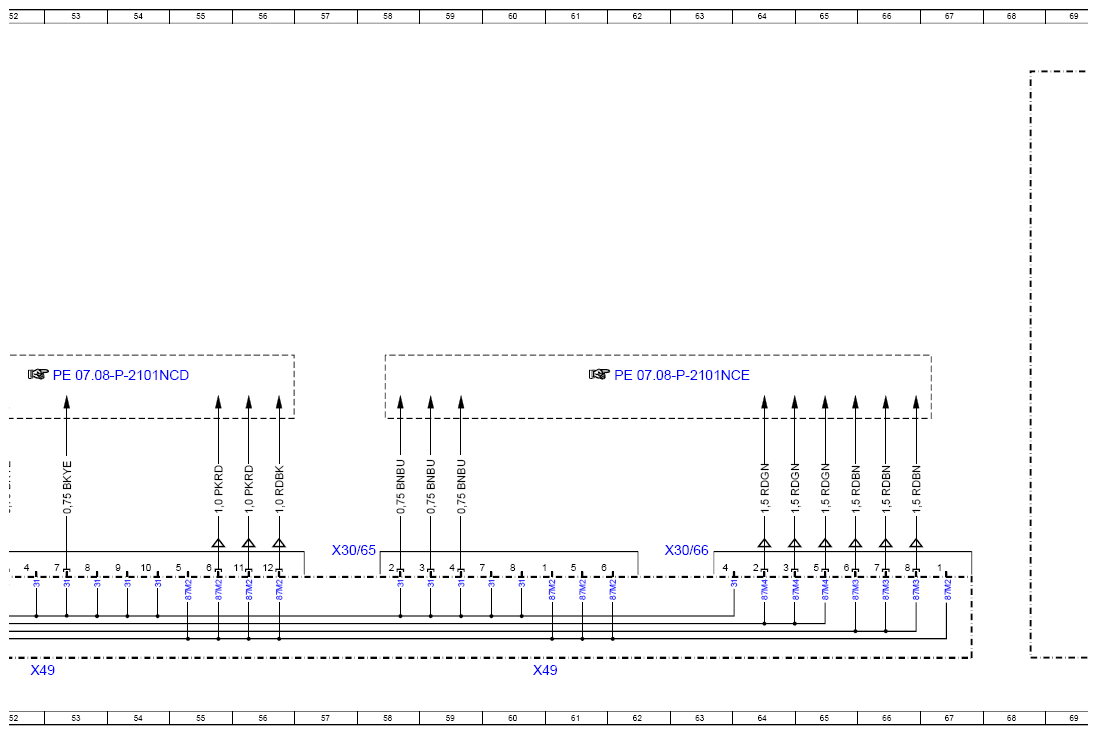

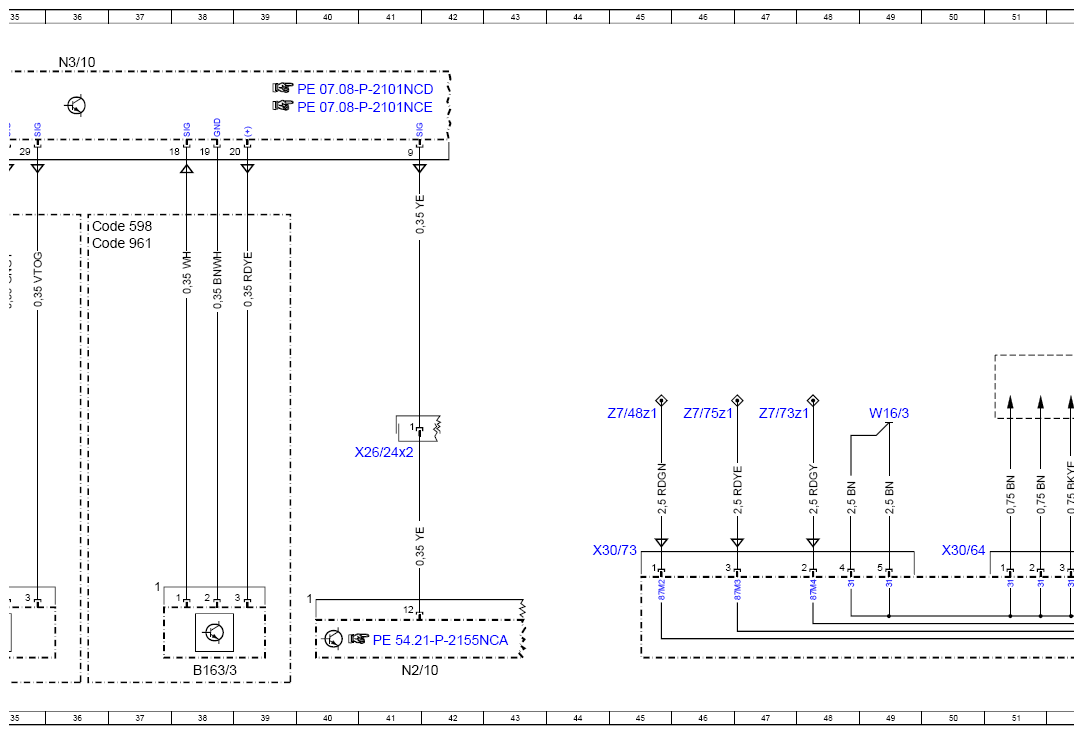

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NCC
Engine 256 in model 167
Control unit N3/10, connector 6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A101 | Fuel tank diagnostic module | 35L |
| B163/3 | Gasoline particulate filter differential pressure sensor | 38L |
| CAN C | Engine CAN | 19K |
| CAN C1 | Drive train CAN | 16K |
| Code 460 | Canada version | 33D |
| Code 494 | USA version | 33D |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 36D |
| Code 830 | Additional parts for China vehicles | 33D |
| Code 835 | Additional parts for South Korea vehicles | 33E |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 36D |
| F152/3 | Engine compartment fuse and relay module | 12L |
| F152/3 | Engine compartment fuse and relay module | 31L |
| F152/3f101 | Fuse 101 | 30L |
| F152/3f102 | Fuse 102 | 9L |
| F152/3f103 | Fuse 103 | 7L |
| F152/3f104 | Fuse 104 | 8L |
| F152/3f124 | Fuse 124 | 6L |
| F152/3f125 | Fuse 125 | 11L |
| N118 | Fuel pump control unit | 23L |
| N127 | Drivetrain control unit | 19L |
| N2/10 | Supplemental restraint system control unit | 27L |
| N2/10 | Supplemental restraint system control unit | 41L |

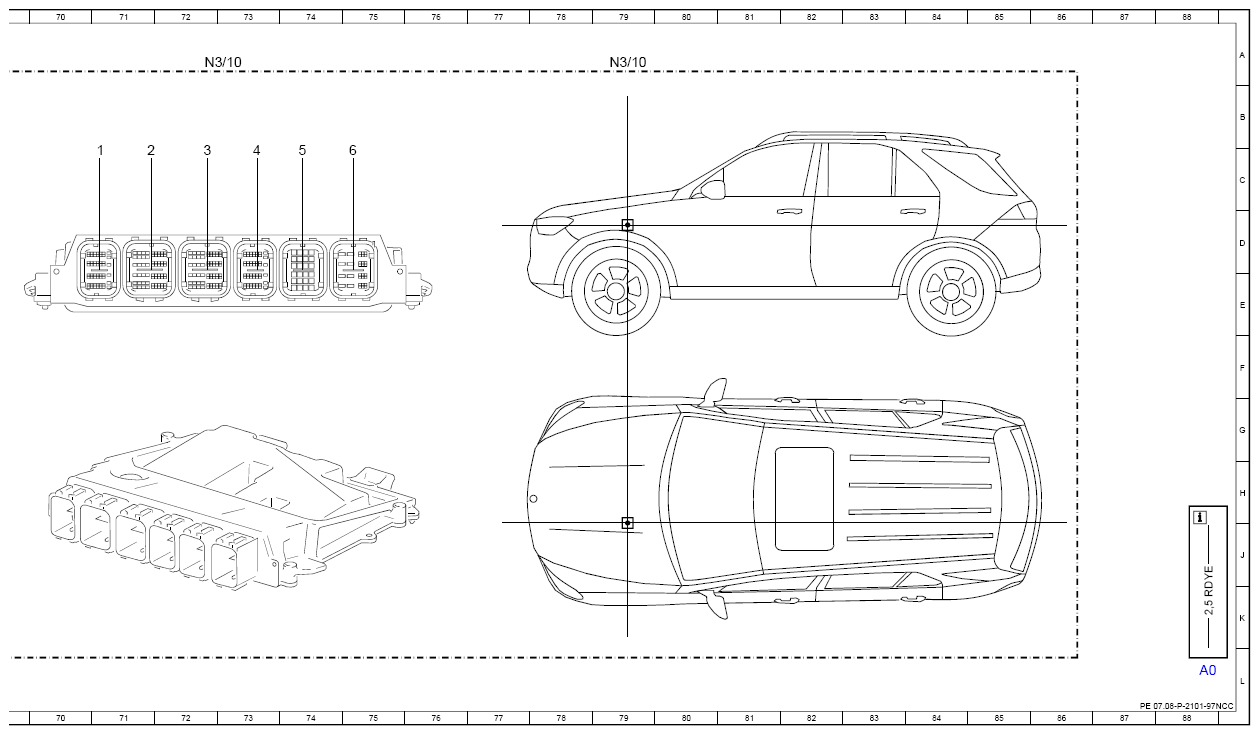

| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 72A |
| N3/10 | ME-SFI [ME] control unit | 79A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| W16/3 | Left major assembly compartment ground point | 13E |
| W16/3 | Left major assembly compartment ground point | 49G |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 10G |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 5G |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 29G |
| X26/24x2 | Vehicle interior and engine compartment electrical connector (48 V) | 41G |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 16L |
| X30/64 | Potential distributor electrical connector | 50J |
| X30/65 | Potential distributor electrical connector | 57J |
| X30/66 | Potential distributor electrical connector | 63J |
| X30/73 | Feed potential distributor electrical connector | 45J |
| X49 | Potential distributor | 52L |
| X49 | Potential distributor | 60L |
| Z50/5z1 | Tml. 15 connector sleeve | 10E |
| Z7/47z1 | Circuit 87M1 connector sleeve | 9E |
| Z7/48z1 | Circuit 87M2 connector sleeve | 29E |
| Z7/48z1 | Circuit 87M2 connector sleeve | 45G |
| Z7/73z1 | Circuit 87M4 connector sleeve | 6E |
| Z7/73z1 | Circuit 87M4 connector sleeve | 47G |
| Z7/75z1 | Circuit 87M3 connector sleeve | 7E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 46G |
