Remove/Install Fuel Rail With Injectors For Cylinders 4, 5, 6 - AR07.03-P-1054MSC

Engine 256.9 in model 167

MODIFICATION NOTES

11.12.2019 Union nut, high-pressure line to fuel distributor/fuel high-pressure pump   BA07.03-P-1001-01MRT

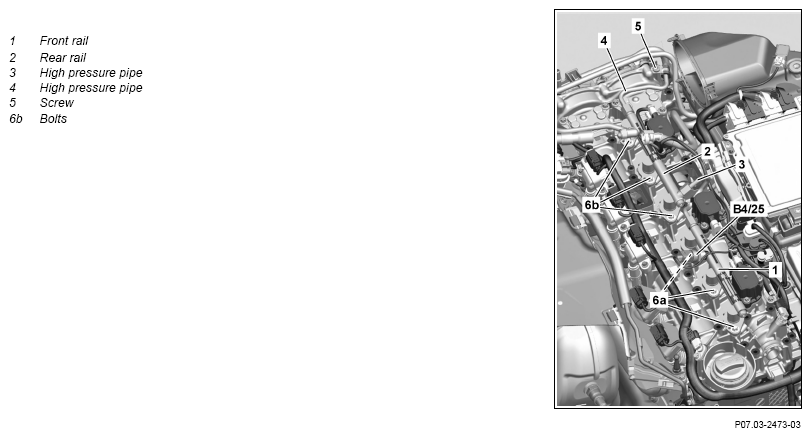

G14789890Courtesy of MERCEDES-BENZ USA

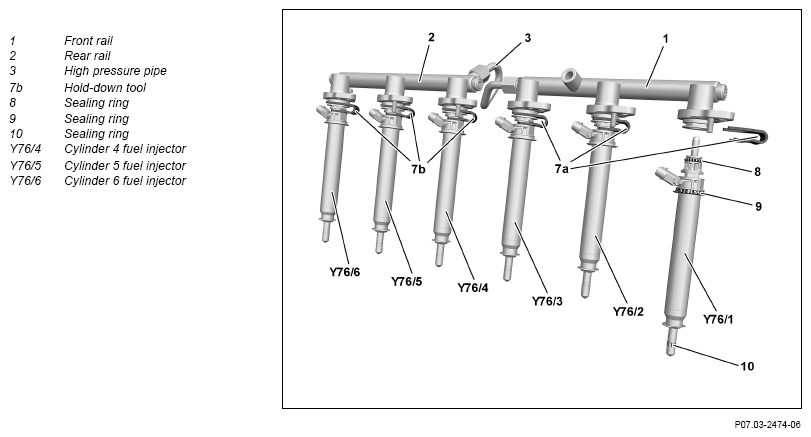

G14789891Courtesy of MERCEDES-BENZ USA
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
DANGER Risk of explosion  caused by fuel igniting.
Risk of injury  To skin and eyes cause by fuel spraying out at high pressure
Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. AS47.00-Z-0001-01A
CAUTION Risk of injury  To skin and eyes due to handling of engine oil. Risk of poisoning
caused by swallowing engine oil
Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Topical note  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on injectors   AH07.16-P-1000-01MRT
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVING Remove
1 Disconnect ground line from battery.   AR54.10-P-0003ME
2 Remove upper service flap.   AR01.10-P-2405-02MSC
3 Remove the oil separator.   AR01.20-P-9750MSC
    INSTALLATION IMPORTANT : Only install upper engine cover after the leak test.
4 Remove air filter housing.   AR09.10-P-1150MSC
5 Remove engine air intake duct downstream of air filter.   AR09.10-P-8130MSC
6 Remove rear noise insulation.
7 Clean area around front rail (1), rear rail (2) and high-pressure lines (3, 4). Assembly cleaner *BR00.45-Z-1028-04A
8 Remove fuel pressure via the service connection.   AR07.03-P-1460-04MSC
    TORQUE SPECIFICATION Cap on service connection *BA07.03-P-1009-01MRT
    SPECIAL TOOL Pressure hose Fig 6
9 Release fuel pressure in the fuel high-pressure circuit.   AR07.03-P-1460-02MM
10 Release and disconnect electrical connectors of fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).
11 Remove engine wiring harness from rear rail (2).
12 Remove high-pressure line (3) and seal openings with suitable stop plugs. SPECIAL TOOL Box wrench bit Fig 4
    SPECIAL TOOL Record plug Fig 2
13 Remove screw (5).
14 Remove high-pressure line (4) from rear rail (2).   AR07.03-P-1003MSC
15 Mark fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6) relative to the corresponding cylinder. NOTES
When reusing, insert the fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6) into the cylinders in which they were previously installed.
Engine damage will occur otherwise.

16 Remove screws (6b).
17 Remove hold-down tools (7b).
18 Remove rear rail (2) and seal openings with suitable stop plugs. SPECIAL TOOL Record plug Fig 2
19 Remove fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6) and seal injector shaft holes with suitable stop plugs.   AR07.03-P-0004-03MM
    IMPORTANT Engine oil that escapes during disassembly of the fuel injectors for cylinders to 6 (Y76/4 to Y76/6) is inconsequential. Reuse fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).
    SPECIAL TOOL Plug Fig 1
    SPECIAL TOOL Puller Fig 5
INSPECT Check
20 Check high-pressure lines (3, 4).   AR07.03-P-1010-03MRT
    Assembly cleaner
If there are problems,
↓
then replace high-pressure lines (3, 4).
*BR00.45-Z-1028-04A
      AR07.03-P-1003MSC
21 Check fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6) for external damage and replace them if necessary.
CLEAN Clean
22 Clean fuel connections on fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6). NOTES
For cleaning the fuel connections, hold downwards.
Otherwise, the fuel injectors for cylinders 4 to
6 (Y76/4 to Y76/6) will fail.

    Assembly cleaner *BR00.45-Z-1028-04A
INSTALLING Install
23 Replace sealing packages for rear rail (2).   AR07.03-P-0004-02MM
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Drift Fig 7
24 Replace sealing rings (8, 9) of the fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).
25 Replace sealing rings (10) of the fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).   AR07.03-P-0004-01MM
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Assembly tool Fig 3
26 Install fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6) in the rear rail (2) and fasten with hold-down tools (7b). NOTES
When reusing, insert the fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6) into the cylinders in which they were previously installed.
Engine damage will occur otherwise.
IMPORTANT Replace hold-down tools (7).

27 Install rear rail (2) with fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).
28 Tighten screws (6b). TORQUE SPECIFICATION Screw/bolt, fuel distributor to cylinder head cover *BA07.52-P-1001-01G
29 Install high-pressure line (3). NOTES
Do not bend or kink high-pressure line (3).
Leaks can occur otherwise.

    TORQUE SPECIFICATION Union nut, high-pressure line to fuel distributor/fuel high-pressure pump *BA07.03-P-1001-01MRT
    SPECIAL TOOL Record plug Fig 2
    SPECIAL TOOL Box wrench bit Fig 4
30 Mount high-pressure line (4) to rear rail (2).   AR07.03-P-1003MSC
31 Tighten screw (5). TORQUE SPECIFICATION Bolt, holder for high-pressure line to camshaft housing/cylinder head *BA07.03-P-1004-01MRT
32 Install engine wiring harness on rear rail (2).
33 Connect and lock electrical connectors of the fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).
34 Install rear noise insulation.
35 Install oil separator.   AR01.20-P-9750MSC
    INSTALLATION IMPORTANT : Only install upper engine cover after the leak test.
36 Install engine air intake duct downstream of air filter.   AR09.10-P-8130MSC
37 Install air filter housing.   AR09.10-P-1150MSC
38 Install upper service flap.   AR01.10-P-2405-02MSC
    TORQUE SPECIFICATION Nut to wiper arm on front windshield wiper system *BA82.30-P-1001-01R
    TORQUE SPECIFICATION M6X1 *BA00.10-P-1002-04A
39 Connect ground line to battery.   AR01.20-P-9750MSC
40 Store injector injection quantity adjustment coding in ME-SFI [ME] control unit. When replacing the fuel injectors for cylinders 4 to 6 (Y76/4 to Y76/6).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
INSPECT Check
41 Check fuel high-pressure circuit for leak tightness.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06ME
      AR07.03-P-1010-04MM
42 Carry out engine test run and check engine for proper operation and leak tightness.
43 Install upper engine cover.   AR01.10-P-2405MSC
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6X1 Nm 9 13
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1001-01MRT Union nut, high-pressure line to fuel distributor/fuel high-pressure pump In case of reusability   Nm 18
For new lines Stage 1 Nm 15
Stage 2 ∠° 90
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1004-01MRT Bolt, holder for high-pressure line to camshaft housing/cylinder head Nm 8
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.03-P-1009-01MRT Cap on service connection Plastic Nm 1
FUEL DISTRIBUTOR

Number Designation Engine 256.9
BA07.52-P-1001-01G Screw/bolt, fuel distributor to cylinder head cover Nm 14
WINDSHIELD WIPER

Number Designation Model 167
BA82.30-P-1001-01R Nut to wiper arm on front windshield wiper system Nm 30
Fig 1: Identifying Plug (270 589 03 91 00)
G11974108Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Tool (272 589 00 43 00)
G13655951Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Box Wrench Bit (000 589 69 03 00)
G13743490Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Puller (278 589 00 33 00)
G11128361Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Pressure Hose (119 589 04 63 00)
G12078803Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Drift (278 589 01 15 00)
G13656001Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
