Remove/Install Right Cylinder Bank Intake Camshaft Position Sensor - AR07.04-P-0053MNO
Engine 176 in model 167

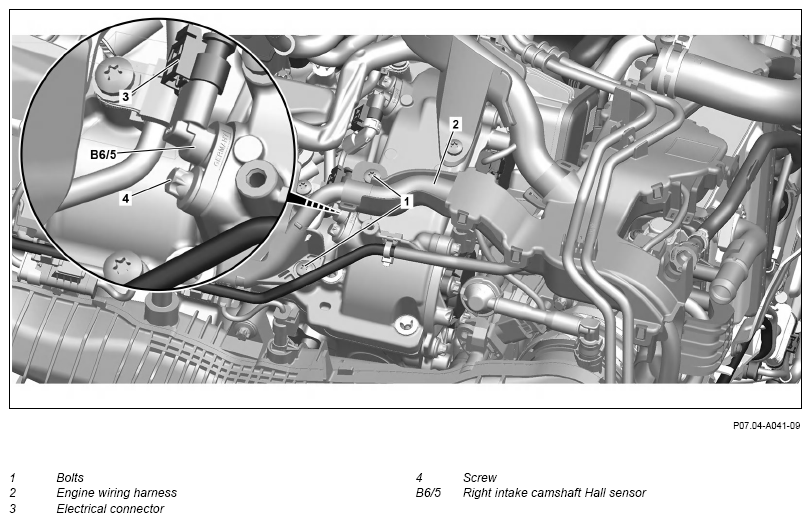

Fig 1: Right Cylinder Bank Intake Camshaft Position Sensor Components Location - Engine 176 In Model 167
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
To skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152MNO | |
| 2 | Remove screws (1) and place engine wiring harness (2) outside the working area. | *BA15.18-P-1003-01G | |
| 3 | Release and disconnect electrical connection (3). | ||
| 4 | Remove screw (4) and remove right intake camshaft Hall sensor (B6/5). | ||
| Lubricant, rubber assembly 1 L | *BR00.45-Z-1010-06A | ||
| *BA15.10-P-1002-03M | |||
| 5 | Check sealing ring of right intake camshaft Hall sensor (B6/5) for damage. | If damage is present, ↓ replace right intake camshaft Hall sensor (B6/5). |
|
| 6 | Install in the reverse order. | ||
| Check | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run. While doing so, check engine for proper operation and leak tightness |
POSITION SENSOR
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.10-P-1002-03M | Bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA15.18-P-1003-01G | Screw, cable duct to cylinder head cover/charge air cooler/heat shield, right | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
