Release Fuel Pressure Through Service Connection - AR07.03-P-1460-04MSC
Engine 256.9 in model 167
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A |
HIGH-PRESSURE LINE, LOW-PRESSURE LINE, FUEL DISTRIBUTOR
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BA07.03-P-1009-01MRT | Cap on service connection | Plastic | Nm | 1 |

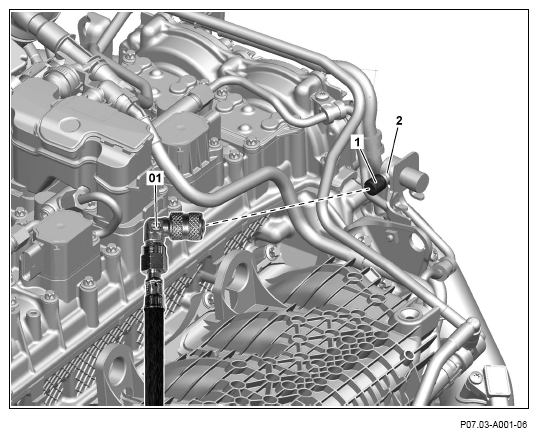

- Unscrew cover (1) from service connection (2).
- Guide end of
pressure hose (01) into a suitable container.
In this process, the service connection (2) is opened and the fuel pressure decreases.
- Tighten cover (1) on service connection (2)
