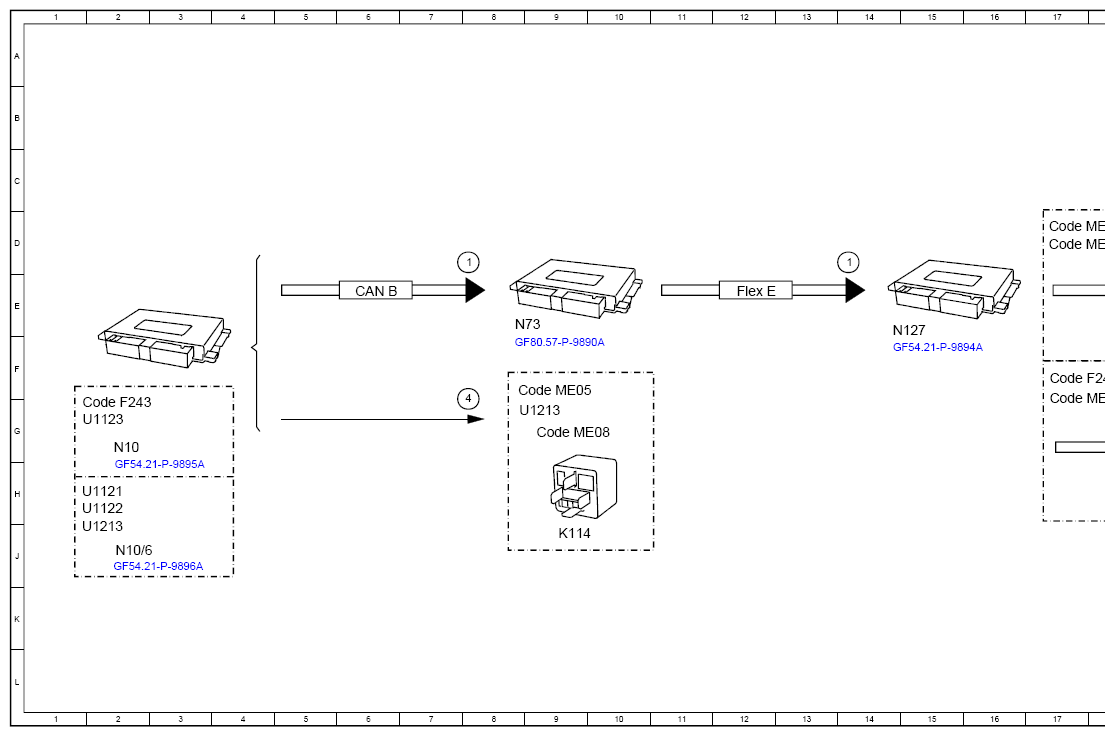

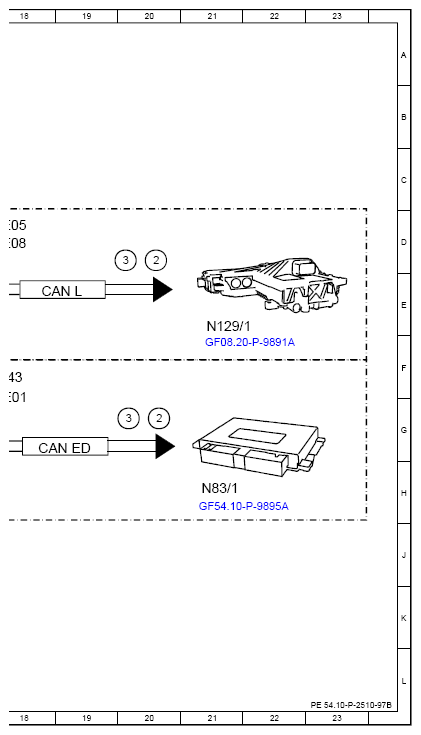

Function Schematic For Charging On-Board Electrical System Battery Through DC/DC Converter - PE54.10-P-2510-97B
Model 167 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
except code B01 (48V technology)
Model 177, 247
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Model 213 as of model year 2021
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
except code B01 (48V technology)
Model 213 as of model year 2021
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
except code B01 (48V technology)
Model 243, 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Energy transfer (buck mode), request | 8D |
| 1 | Energy transfer (buck mode), request | 14D |
| 2 | DC/DC converter mode, request | 20D |
| 2 | DC/DC converter mode, request | 20G |
| 3 | DC/DC converter low output voltage/current, request | 19D |
| 3 | DC/DC converter low output voltage/current, request | 19G |
| 4 | ECO start/stop function additional battery relay, actuation | 8G |
| CAN B | Interior CAN | 6E |
| CAN ED | Electric drive CAN | 18G |
| CAN L | Hybrid CAN | 18E |
| Code F243 | MODEL SERIES 243 | 17F |
| Code F243 | MODEL SERIES 243 | 1G |
| Code ME01 | Electric motor | 17G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 17D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 8F |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 17D |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 9G |
| Flex E | Chassis FlexRay | 12E |
| K114 | ECO start/stop function additional battery relay | 9J |
| N10 | Signal acquisition and actuation module | 2G |
| N1/6 | Front SAM control unit | 2J |
| N127 | Drivetrain control unit | 15E |
| N12/1 | Power electronics control unit | 21E |
| N73 | Electronic ignition switch control unit | 8E |
| N8/1 | DC/DC converter control unit | 21H |
| U1121 | Valid for model 167 | 1H |
| U1122 | Valid for model 293 | 1H |
| U1123 | Valid for model 118, 177, 247 | 1G |
| U1213 | Valid for model 213 | 8G |
| U1213 | Valid for model 213 | 1J |
