Remove/Install Instrument Cluster Control Unit - AR54.30-P-7101ME
Model 167
MODIFICATION NOTES
| 04.02.2020 | Document contents completely revised. |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove driver knee airbag. | AR91.60-P-0200ME | |
| 2 | Remove front SAM control unit. | AR54.21-P-1254ME | |

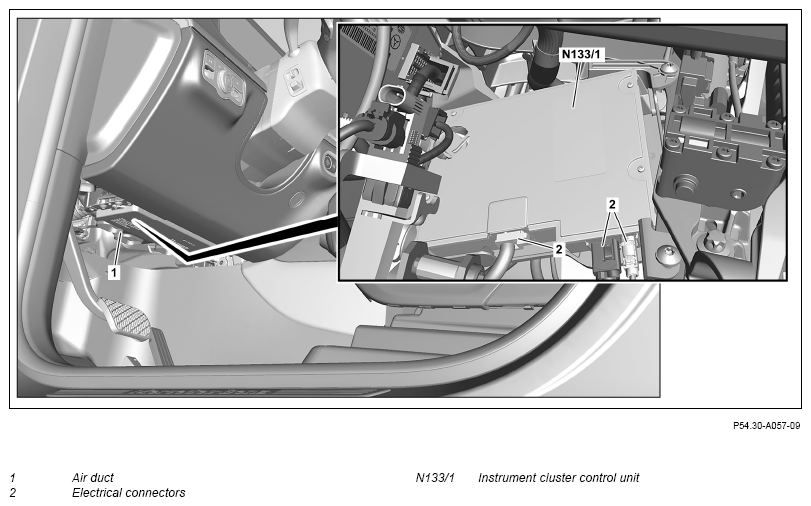

| 3 | Detach air duct (1) until the electrical connector of the left footwell vent outlet air temperature sensor is accessible. | Fig 2 | |
| 4 | Release and disconnect electrical connector o left footwell vent outlet air temperature sensor. | ||
| 5 | Release and disconnect electrical connectors (2). | ||

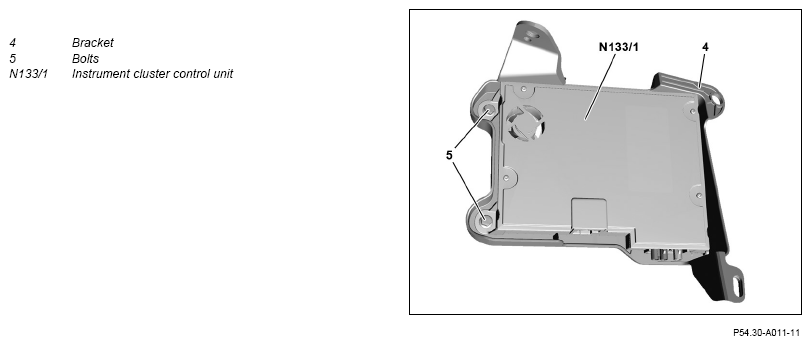

| 6 | Remove screws (5) and remove instrument cluster control unit (N133/1) from holder (4). | ||
| 7 | Install in the reverse order | ||
| 8 | Commission instrument cluster control unit (N133/1). | When replacing instrument cluster control unit (N133/1). | |
| AD00.00-P-2000-06ME |
