CROSSMEMBER Below Rear Seat Removal - Ar63.40-P-1194-01MEX

Model 167.9

with code M036 (Maybach version)

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

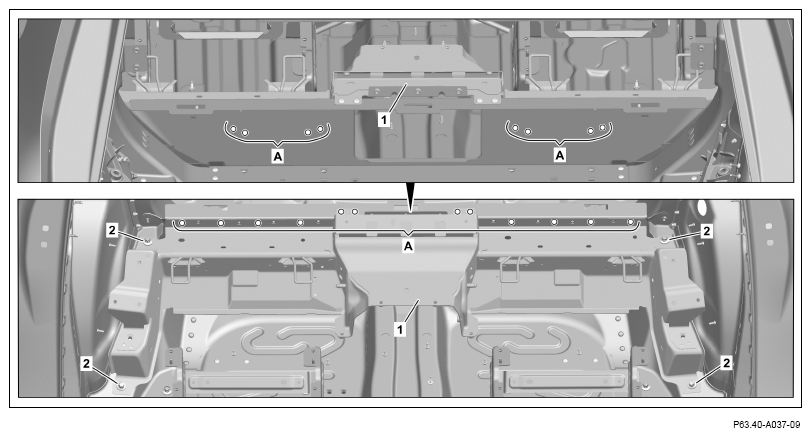

1. Drill through rivets on the crossmember under the rear seat (1) with a diameter of 6.5 mm (areas A).
2. Remove screws (2) from the crossmember under the rear seat (1).

   Courtesy of MERCEDES-BENZ USA

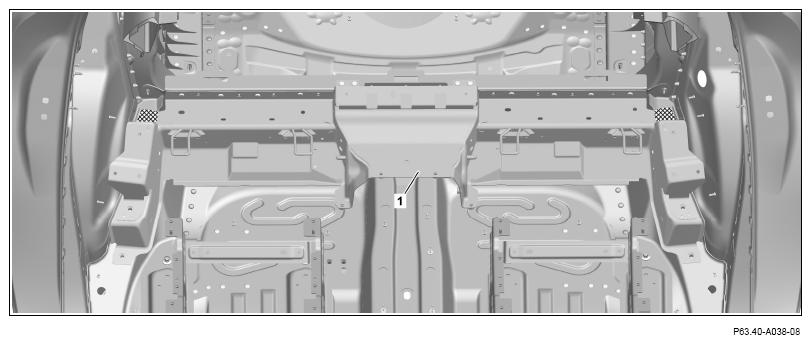

3. Heat up crossmember under the rear seat (1) in the cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

4. Remove crossmember under the rear seat (1).

   Courtesy of MERCEDES-BENZ USA

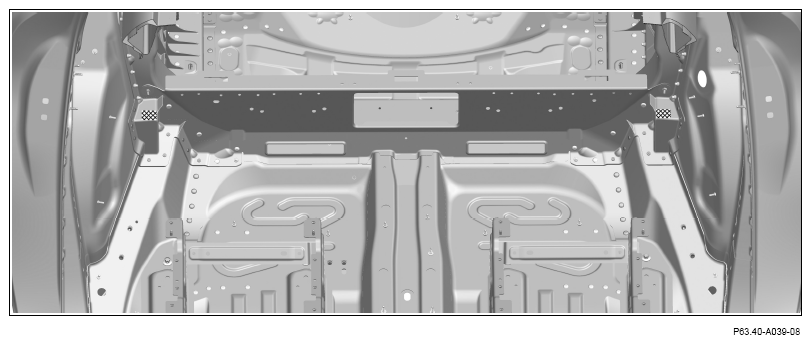

5. Grind mating surfaces down to bare metal in cross-hatched areas.
6. Remove grinding dust and drill chips.

   Observe pretreatment of bonding surfaces.
