CROSSMEMBER Below Rear Seat Installation - Ar63.40-P-1194-02MEX

Model 167.9

with code M036 (Maybach version)

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Install crossmember under the rear seat (1), fit, and fix in place.

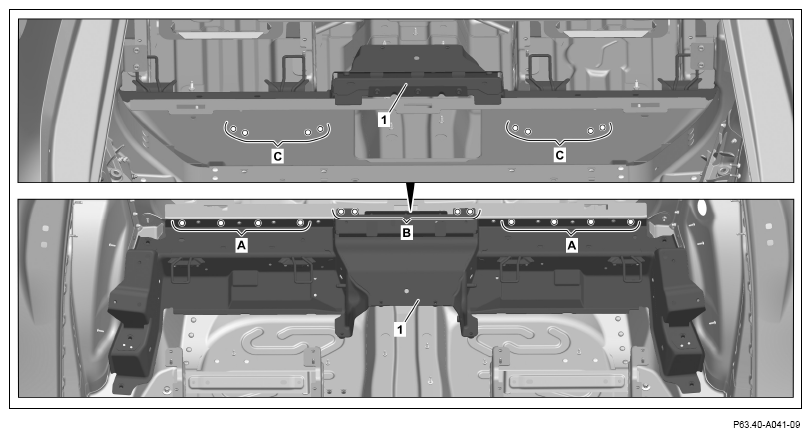

2. Drill rivet holes on the crossmember under the rear seat (1) with a diameter of 6.7 mm (areas A, B, C).

   Drill rivet holes from the rear through the existing holes in the body (areas A). Drill rivet holes from the bottom rear through the existing holes in the body (area B).

3. Remove crossmember under the rear seat (1).
4. Deburr rivet holes on the crossmember under the rear seat (1) and on the body on both sides.
5. Remove drilling chips.
6. Coat insides of riveted joints with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA

7. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

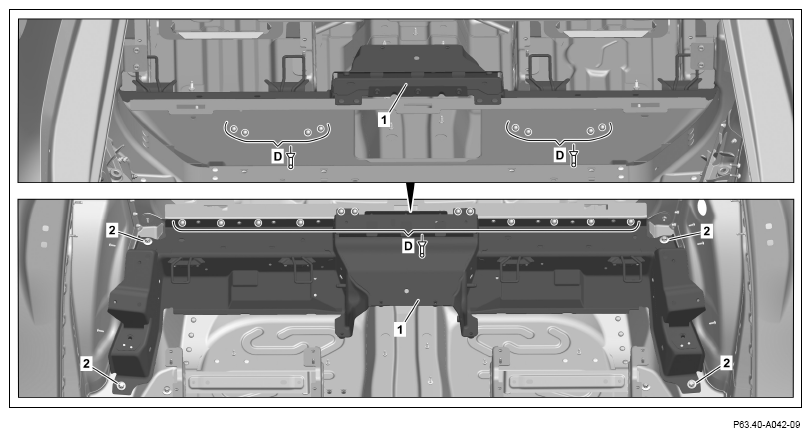

8. Install crossmember under the rear seat (1) and fix in place.
9. Rivet crossmember under the rear seat (1) with rivets with a diameter of 6.4 x 14 (areas D).
10. Screw in screws (2) on the crossmember under the rear seat (1).
