Prepare Load Compartment Floor CROSSMEMBER For Installation - Ar64.20-P-1315-02MEX
Model 167.9
with code M036 (Maybach version)
The superordinate service document as well as the safety information in the service document must be observed.

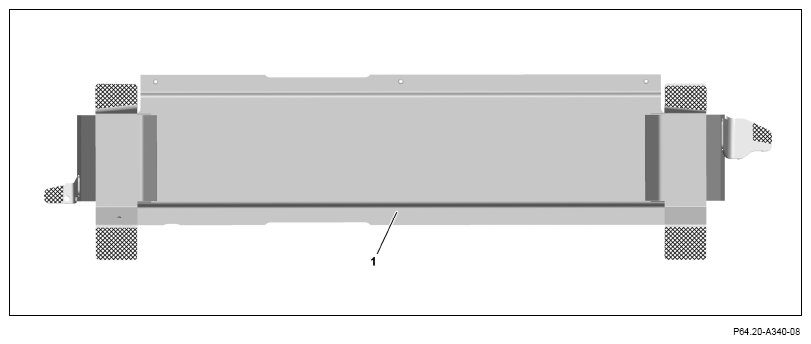

- Grind mating surfaces on the load compartment floor crossmember (1) down to bare metal in the cross-hatched areas.
- Remove grinding dust.
Observe pretreatment of bonding surfaces.
