Load Compartment Floor CROSSMEMBER Removal - Ar64.20-P-1315-01MEX

Model 167.9

with code M036 (Maybach version)

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

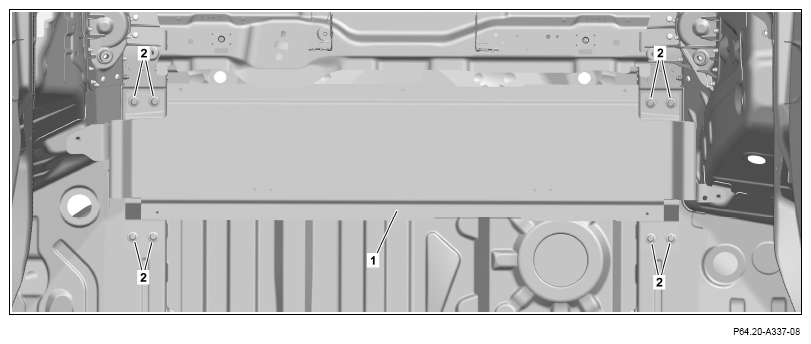

1. Remove screws (2) from load compartment floor crossmember (1).

   Courtesy of MERCEDES-BENZ USA

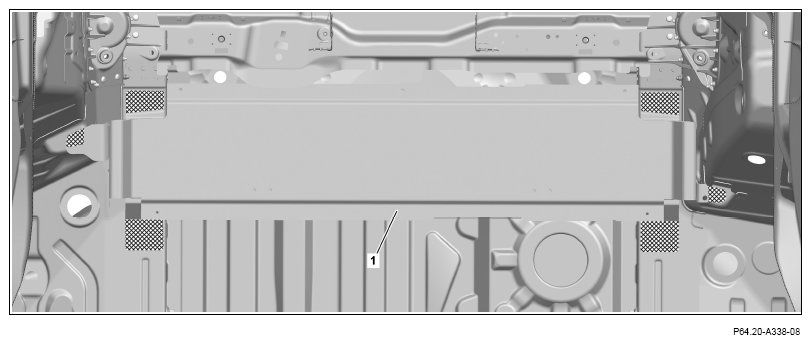

2. Heat up load compartment floor crossmember (1) in the cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

3. Remove load compartment floor crossmember (1).

   Courtesy of MERCEDES-BENZ USA

4. Grind mating surfaces down to bare metal in cross-hatched areas.
5. Remove grinding dust.

   Observe pretreatment of bonding surfaces.
