Install Load Compartment Floor CROSSMEMBER - Ar64.20-P-1315-03MEX
Model 167.9
with code M036 (Maybach version)
REAR END
| Number |
Designation |
Model 167.9 with code M036 (Maybach version) |
| BA64.20-P-1009-01G |
Bolt, crossmember under load compartment floor to longitudinal member at rear |
Nm |
32 |
The superordinate service document as well as the safety information in the service document must be observed.
 Courtesy of MERCEDES-BENZ USA
|

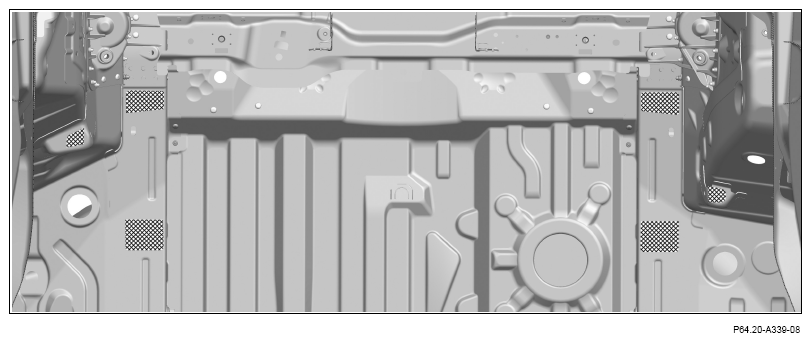

- Apply 2-component adhesive to body in cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
 Courtesy of MERCEDES-BENZ USA
|

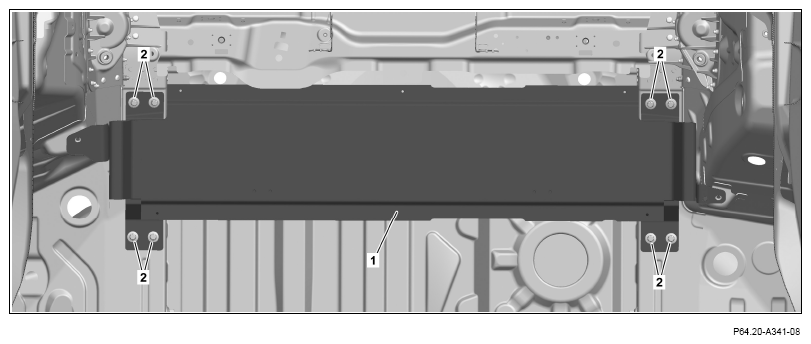

- Position load compartment floor crossmember (1) and screw in screws (2).
