Cross Member Above Rear Axle Removal - Ar64.20-P-1300-07MEX

Model 167.9

with code M036 (Maybach version)

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

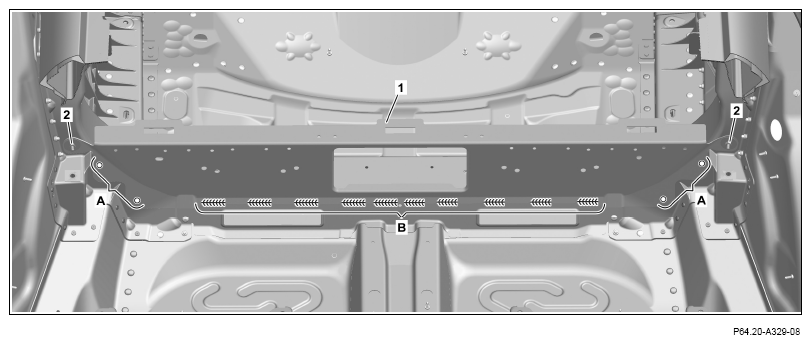

1. Drill through rivets on the crossmember above the rear axle (1) with a diameter of 6.5 mm (areas A).
2. Expose and disconnect weld seams on the crossmember above the rear axle (1) (area B).
3. Remove nuts (2) from the crossmember above the rear axle (1).

   Courtesy of MERCEDES-BENZ USA

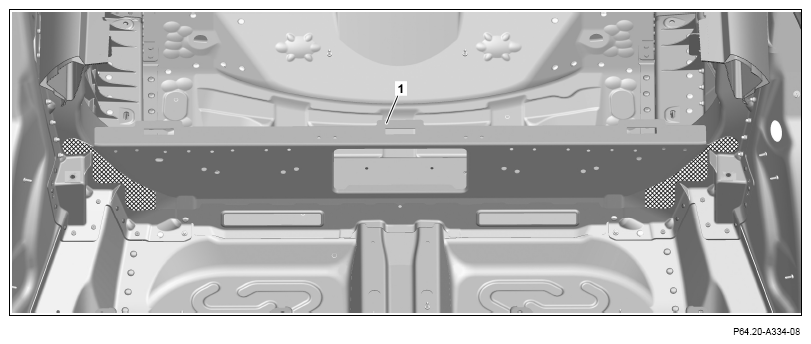

4. Heat crossmember above the rear axle (1) in the cross-hatched area.

   Cross-hatched areas are bonded with adhesive.

5. Remove crossmember above the rear axle (1).

   Courtesy of MERCEDES-BENZ USA

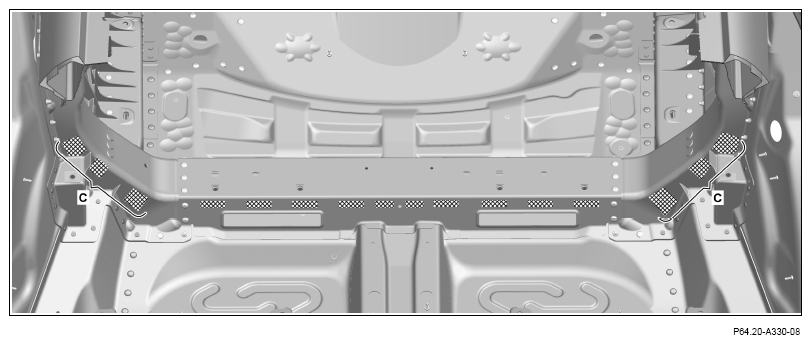

6. Grind mating surfaces down to bare metal in cross-hatched areas.
7. Remove grinding dust and drill chips.

   Observe pretreatment of bonding surfaces (areas C).
