Remove/Install Front Axle RPM Sensor - AR42.30-P-0713ME
Model 167
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove corresponding wheel and tire assembly. | AR40.10-P-1102ME | |

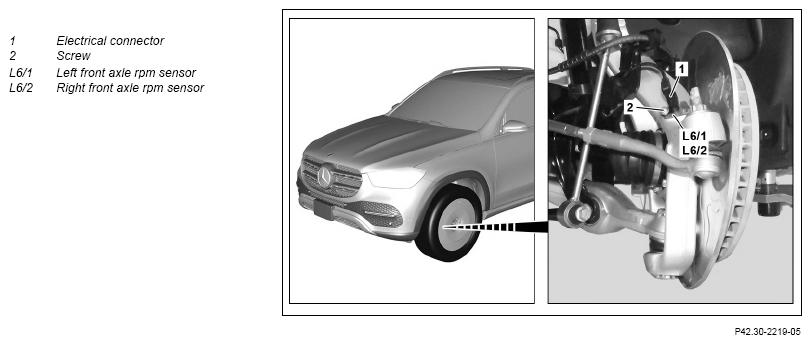

| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove screw/bolt (2). | *BA42.30-P-1001-01G | |
| 5 | Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2). | ||
| 6 | Install in the reverse order. |
FRONT AXLE RPM SENSOR
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.30-P-1001-01G | Self-locking bolt, rpm sensor on front axle to steering knuckle | Nm | 8 |
