Remove/Install Front Axle Brake Disk - AR42.10-P-0230ME
Model 167
except code B06 (Silver brake calipers)
except code B07 (AMG - ceramic brake system)
except code U29 (AMG high-performance braking system)
except code U70 (red-painted brake callipers)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on evaluating brake disks with and without wear holes | AH42.10-P-9406-14A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove left or right brake caliper and secure at vehicle free of tension. | AR42.10-P-0070ME | |
| 2 | Remove screws from brake caliper support and remove brake caliper support. | ||

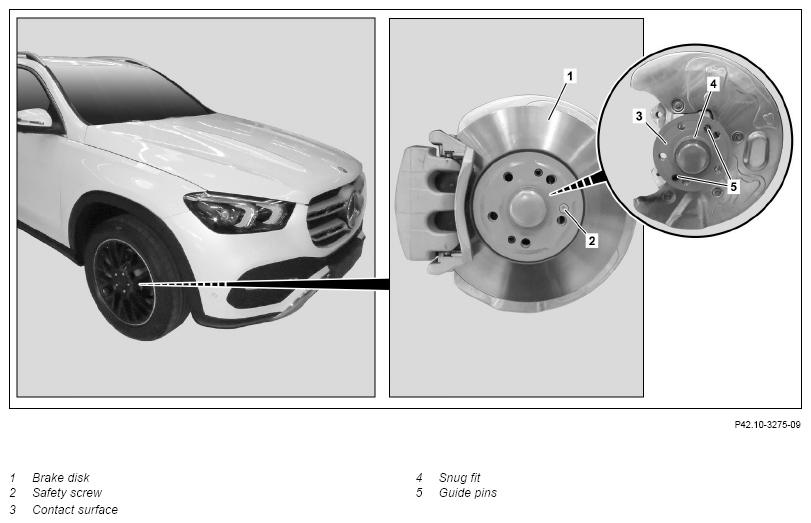

| 3 | Unscrew safety screw (2) and remove brake disk (1). | ||
| Check | |||
| 4 | Check brake disk (1) for condition and wear. | If there is a problem, ↓ replace brake disks (1). |
AR42.10-P-0120ME |
| Clean | |||
| 5 | Clean contact surface (3) and interference fit (4). | Do not use sharp-edged or pointed objects. Otherwise, the contact surface (3) and interference fit (4) will be damaged. Assembly cleaner |
*BR00.45-Z-1028-04A |
| Install | |||
| 6 | Lightly grease interference fit (4) of brake disk (1). | Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A |
| 7 | Position brake disk (1) using guide pins (5) and screw in safety screw (2). | ||
| *BA42.10-P-1001-11A | |||
| 8 | Insert brake caliper support and screw in screws. | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA42.10-P-1003-10L | |||
| 9 | Install brake caliper. | AR42.10-P-0070ME |
FRONT AXLE BRAKE DISKS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA42.10-P-1001-11A | Safety screw, brake disk to front axle | Nm | 10 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA42.10-P-1003-10L | Self-locking bolt, brake caliper support to steering knuckle | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 45 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
