Remove/Install Brake Light Switch - AR42.10-P-0045ME
Model 167
except code B01 (48V technology)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove cover under driver's side instrument panel. | AR68.10-P-1501ME | |

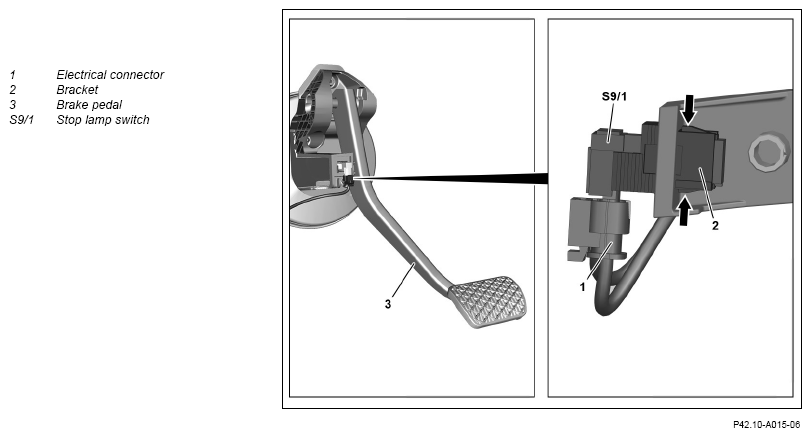

| 2 | Release and disconnect electrical connector (1) at brake light switch (S9/1). | ||
| 3 | Pull out brake light switch (S9/1). | ||
| 4 | Press catches (arrows) together and remove holder (2). | ||
| Install | |||
| 5 | Press in brake light switch (S9/1) completely into bracket (2). | ||
| 6 | Operate brake pedal (3) and insert brake light switch (S9/1) with holder (2). | ||
| 7 | Release brake pedal (3) and pull back. | ||
| 8 | Connect electrical connector (1) to brake light switch (S9/1). | ||
| 9 | Install cover under driver's side instrument panel. | AR68.10-P-1501ME |
