Remove/Install Paneling On B-Pillar - AR68.30-P-4700ME

Model 167

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Move left or right front seat toward front to end position.
2	Remove front and rear door sills.		AR68.30-P-4100ME
3	Remove outer trim from seat frame.		AR91.10-P-1200ME
4	Remove seat belt end fitting from front seat.	Model 167 with code 460 (Canada version) Model 167 with code 494 (US version)	AR91.40-P-1030-02FRA
		Model 167 except code 460 (Canada version) except code 494 (US version)	AR91.40-P-1030-02FR
		Model 167 with code 460 (Canada version) Model 167 with code 494 (US version) Screw, cover for seat belt end-fitting tensioner	*BA91.40-P-1012-01U

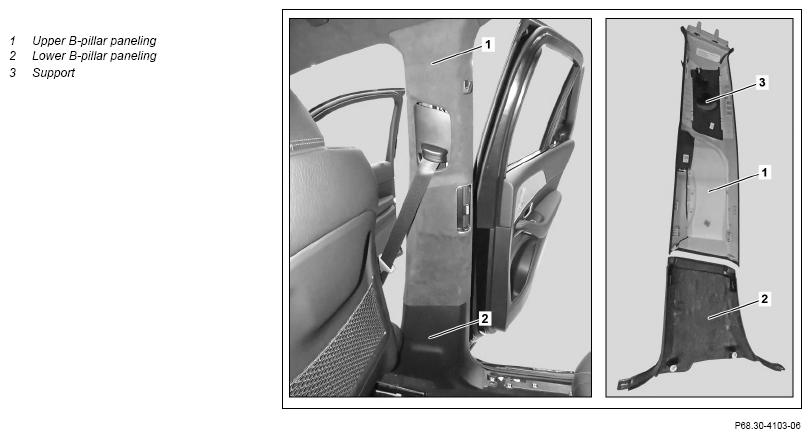

5	Unclip top B-pillar trim (1).	Ensure that edge guard is seated correctly. Position support (3) of upper B-pillar trim (1) on screw at seat belt guide bracket. Long wedge	Fig 1
6	Release and disconnect electrical connector.	Model 167 with code 581 (Automatic air conditioning)
7	Guide upper B-pillar trim (1) out downward and remove from seat belt.
8	Unclip lower B-pillar trim (2) and remove.	Long wedge	Fig 1
9	Install in the reverse order.

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 167
BA91.40-P-1012-01U	Screw, cover for seat belt end-fitting tensioner	Nm	4

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
